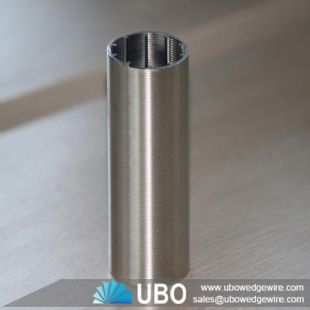

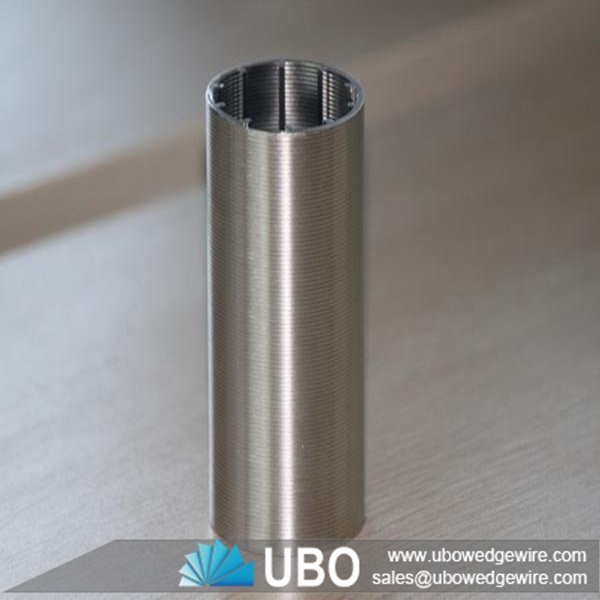

stainless steel wedge wire screen pipe for filtration

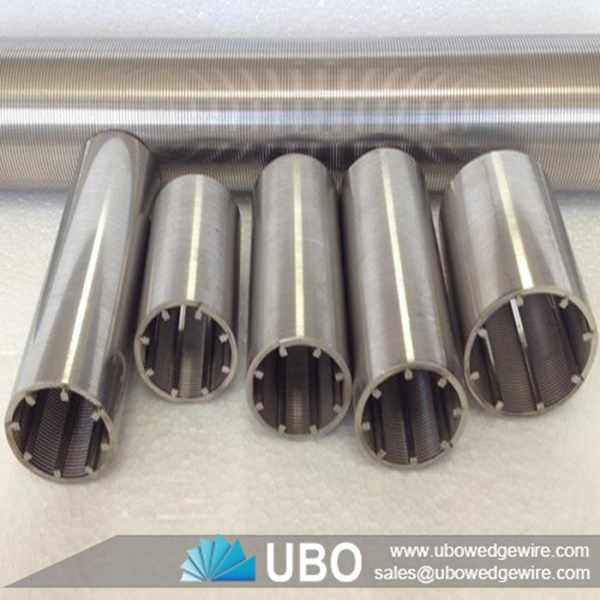

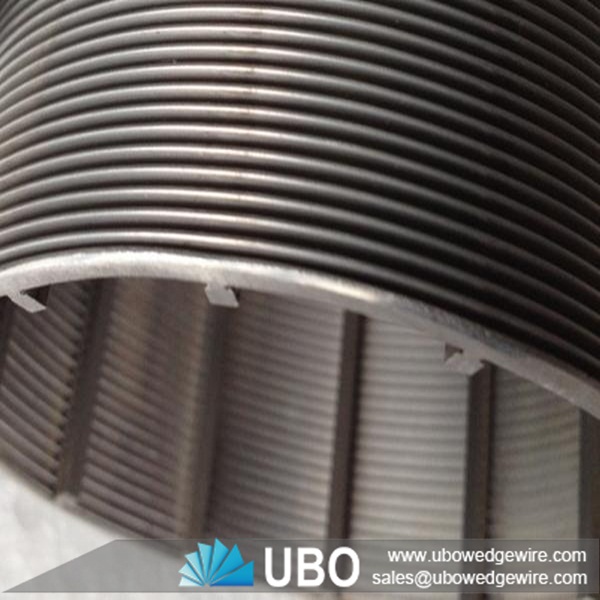

The stainless steel wedge wire screen pipes are welded by profile V-wire and support wires,it also called Wedge Wire screen.The features are high ratio filter area because of big opening,Wedge Wire structure are easy for automatic back washing and avoid pipe blocking.The pressure will reduce when water flow in for greater filter area,avoid the grains of sand flow in the wedge wire tube in the high pressure conditions,so make the pipe life longer.Between the same length,diameter and slot size,wedge wire pipe is thrice than bridge filter pipes.
Material: Low carbon steel wire,AISI 304,AISI 304L,AISI 316,AISI316L,high quality stainless steel wire.

Features of stainless steel wedge wire screen pipe for filtration

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.

3) Reduce the abrasion of the pump

Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into screen because of high pressure, thus reduce the abrasion of the pump.

4) Extend the life span of wells

Comparatively, groundwaters entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

Applications of stainless steel wedge wire screen pipe for filtration

-- De-watering

-- Separating;

-- Filtering;

-- Straining;

-- Sizing

-- Drying

-- Media retention

-- Water intake

Material: AISI304/316/316L, Galvanized low carton.

Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70

                                   Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm): Width : 2.30 3.00 3.30 3.70

                                    Height : 2.70 3.60 4.70 5.60 6.30

Round: 2.50mm -- 6.0mm

Slot Size: 0.10 -- 6.00mm ,also can be customized as your request.

Length: Max 6 meters.

Diameter: 25mm -- 1200mm.

Note: Other specifications can be customized according to your requirement.
