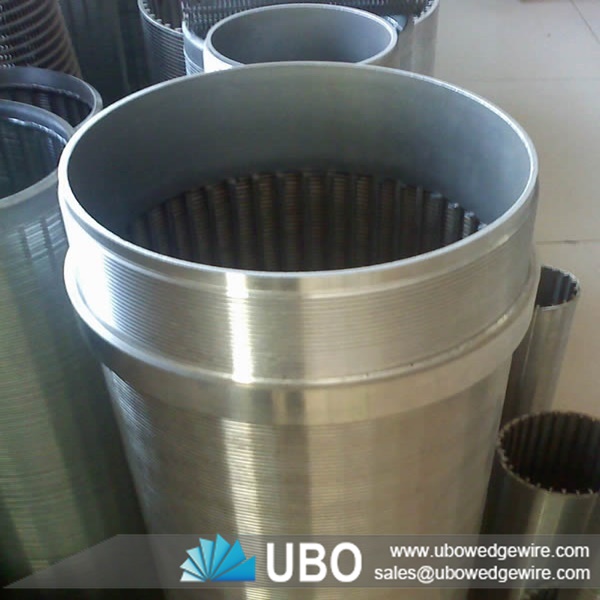

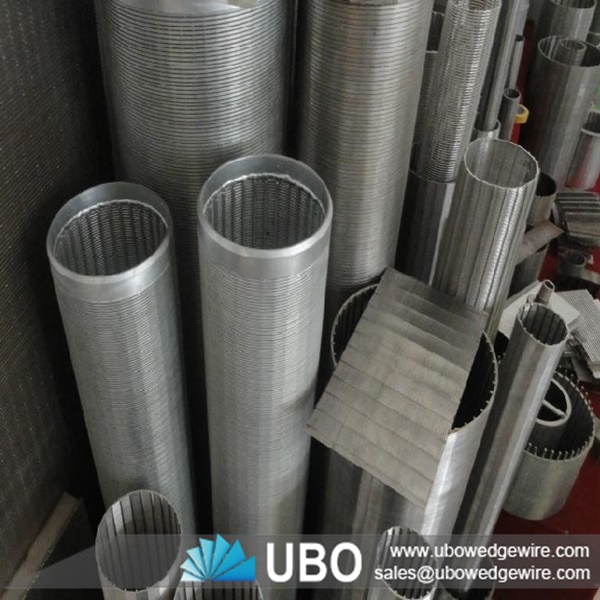

316L wedge wire screen pipe for filtration

More Views

316L wedge wire screen pipe for filtration316L wedge wire screen pipe for filtration316L wedge wire screen pipe for filtration

316L wedge wire screen pipe for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,316,316L
Properties:wedge wire screen
Application:water, oil, food, beer euipment,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of 316L wedge wire screen pipe for filtration

316L wedge wire screen pipe slot width shouldn't exceed 0.02mm and shouldn't less than 0.01mm compare to standard size when slot width is below 0.2mmSlot width should be controlled within ± 0.02mm compare to standard size if slat width is bigger than 0.25mmPlatingHard plating the wedge bar surface, plating thickness is 0.20-0.30mm. surface hardness >HRC : 60-66 (HV700-900)Product structure : wedge wire screen and stainless steel pipe.

Features of 316L wedge wire screen pipe for filtration

adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filteration and more effective

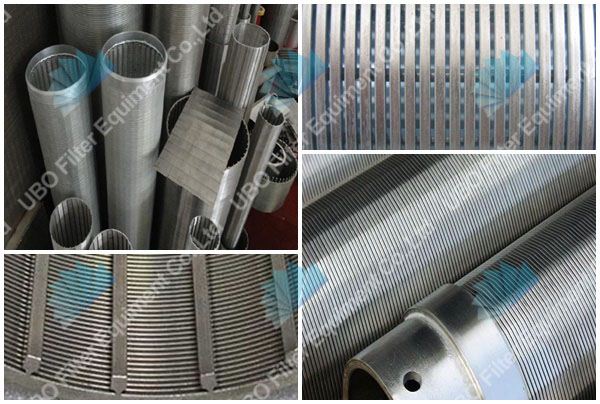

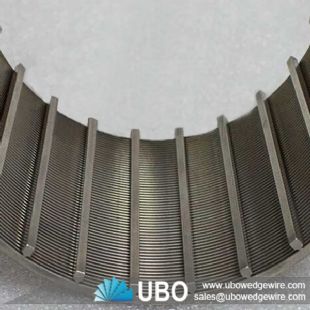

wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are gaurenteed.
arrangement of the longitudinal support rods and the successive slots provide higher compressive property.

Application of 316L wedge wire screen pipe for filtration

316L wedge wire screen pipes are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.

316L wedge wire screen pipe for filtration

Specifications of 316L wedge wire screen pipe for filtration:


No.
(mm)TYPE OD
(mm)
ID
(mm)
Support wire Number Filter direction
1 SRD25.4 25.4 18.6 12 FOTI
2 SRD 33 33 24 8 FOTI
3 SRD 37 37 28 8 FOTI
4 SRD 40 40 31 8/10 FOTI/FITO
5 SRD 45 45 36 10/12 FOTI/FITO
6 SRD 48 48 38 12 FOTI/FITO
7 SRD 60 60 51 12 FOTI/FITO
8 SRD 70 70 61 12/18 FOTI/FITO
9 SRD 85 85 76 18 FOTI/FITO
10 SRD 110 110 101 24 FOTI/FITO
11 SRD120 120 111 24 FOTI/FITO

316L wedge wire screen pipe for filtration

Packaging and Transportation of 316L wedge wire screen pipe for filtration:

transportation
