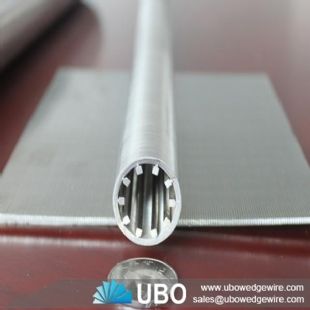

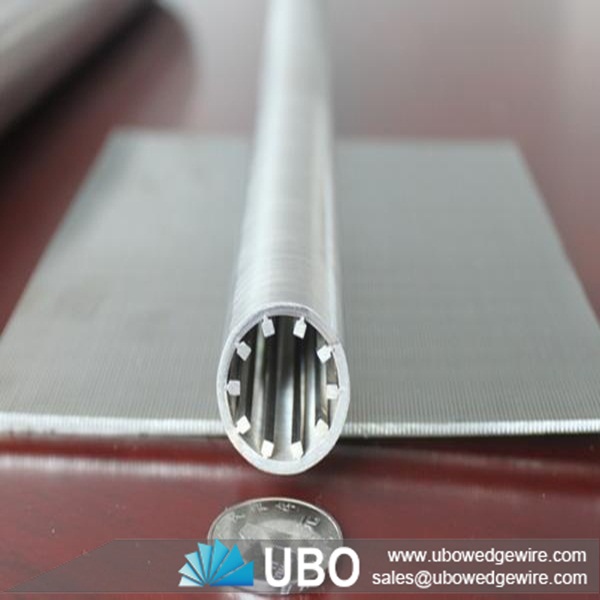

Wedge wire screen filtration for oil well and quarry screening

More Views

Wedge wire screen filtration for oil well and quarry screeningWedge wire screen filtration for oil well and quarry screeningWedge wire screen filtration for oil well and quarry screening

Wedge wire screen filtration for oil well and quarry screening

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire screen filtration for oil well and quarry screening

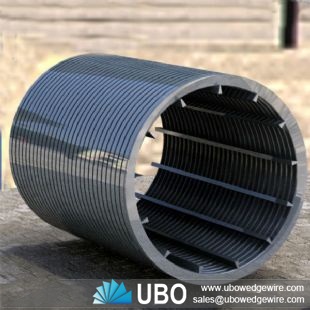

Wedge wire screen is known as profile wire screen, V- wire screen, and wedge wire screen. It is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods. Each intersection of the profiles wire and support rod is well welded. It has a smooth surface, resistant to clogging and a greater structural strength. Welded wedge wire screen is the most advanced product of modern technology used in many industries for screening, filtration, dewatering, drying and cleaning. The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods allows us to design a screen according your required specification.

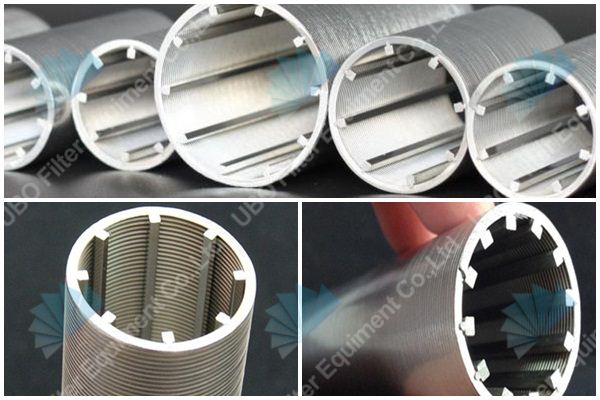

Wedge wire screen filtration for oil well and quarry screening

Advantages of Wedge wire screen filtration for oil well and quarry screening

Smooth surface, low hydraulic resistance, high filtration accuracy, never clogging;
High mechanical strength, high corrosion resistance, acid-resistant, heat-resistant;
Guaranteed size of the slot tight tolerance to ±0.015mm;
Filtration direction can be outside to inside or inside to outside;
High capacity filter surface, effective backwashing, and long trouble-free life.

Application of Wedge wire screen filtration for oil well and quarry screening

Wedge wire screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

Features of Wedge wire screen filtration for oil well and quarry screening

1. The slotted liner is a robust and cost-effective solution for long completions or low productivity wells.
2. We offer straight and keystone slot type in the wide range of slotting patterns to create the required open area.

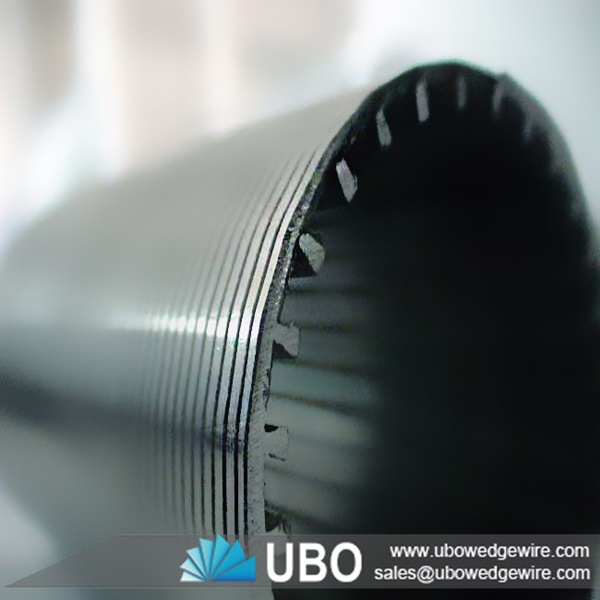

Wedge wire screen filtration for oil well and quarry screening

Specifications of Wedge wire screen filtration for oil well and quarry screening:

Wedge wire screen filtration for oil well and quarry screening



Screen Area
(m2)
Sieve hole size (mm)
Seam Size (mm)
Screen Hole (T/D)
Screen Slot (T/D)
Inlet pulp consistency (%)
Motor Power (Kw)
0.3
Φ1.6~Φ3.5
0.1~0.55
50~80
30~50
1~4
22~55
0.6
Φ1.6~Φ3.5
0.1~0.55
90~160
60~100
1~4
30~75
0.9
Φ1.6~Φ3.5
0.1~0.55
135~250
90~150
1~4
37~90
1.2
Φ1.6~Φ3.5
0.1~0.55
180~320
120~190
1~4
45~110
1.5
Φ1.6~Φ3.5
0.1~0.55
200~380
140~230
1~4
55~132
2
Φ1.6~Φ3.5
0.1~0.55
260~500
220~300
1~4
75~160
3
Φ1.6~Φ3.5
0.1~0.55
400~700
300~450
1~4
90~220
4
Φ1.6~Φ3.5
0.1~0.55
500~1000
350~730
1~4
132~280

Packaging and Transportation of Wedge wire screen filtration for oil well and quarry screening:
