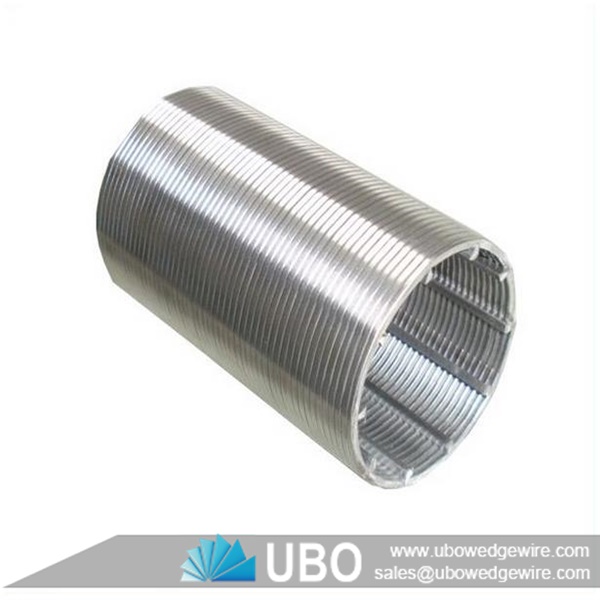

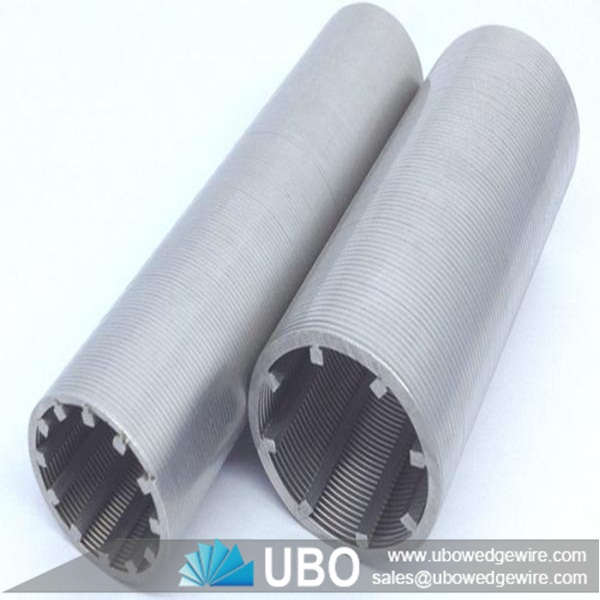

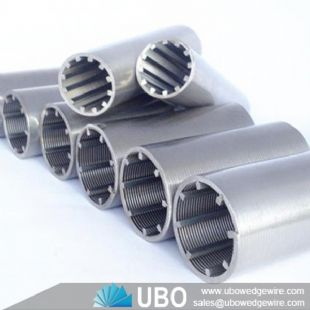

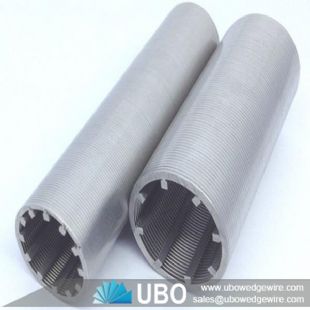

Details of Wedge wire screen cylinders with different end connections

Wedge wire screen cylinders are manufactured by v-wire running radially on the outside surface of the screen cylinder or running axially on the inside of the cylinder. According to the relationship of wedge wire and the supporting rod, there are four flow directions as bellow . Each connection point of wedge wire to the support rod is welded to increase the strength and durability. Wedge screen cylinders can be used as water well screen, rotary screen and nozzle screens for separating solids from liquids.

Wedge wire screen cylinders with different end connections

Advantages of Wedge wire screen cylinders with different end connections


Non-clogging surface
Large open area
Low pressure drop
High flow rates
Great mechanical strength
Abrasion-resistant
Easy cleaning
Flexibility in design
Perfect roundness, smooth surface

Application of Wedge wire screen cylinders with different end connections

Wedge wire screen has a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.
We can also make manufacture according to your detail specifications and we assure that we will give you the best services.

Specifications of Wedge wire screen cylinders with different end connections:

Material:Wedge wire screen cylinders with different end connections

Type:screen cylinder

Wedge wire screen cylinders with different end connections

Size

(inch)

O.D

(mm)

Slot

(inch)

Collapse Strength

(Psi)

Tensile Weight

(Ton)

Wrap(thick*deep)

(mm)

Rods

(mm)

4

117

0.04

395

6

2.2*3.0

3.8mm/22

4

114.3

0.04

395

6

2.3*3.0

3.8mm/22

6

168.3

0.04

252

8

2.3*3.5

3.8mm/32

8

219.1

0.01

399

10.5

3.0*5.0

3.8mm/48

8

219.1

0.02

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.04

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.01

206

11

3.0*5.0

3.8mm/50

10

273.1

0.02

191

11

3.0*5.0

3.8mm/50

10

273.1

0.04

167

11

3.0*5.0

3.8mm/50

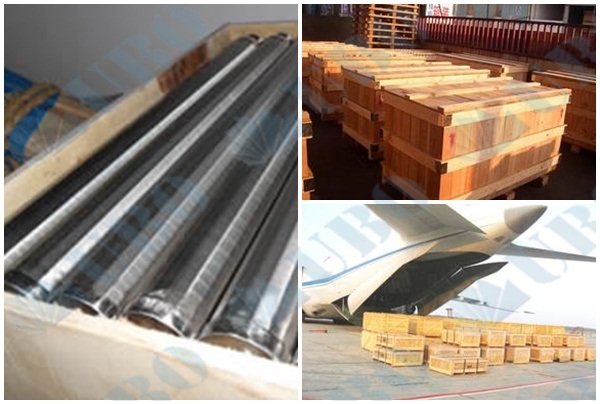

Packaging and Transportation of Wedge wire screen cylinders with different end connections:
