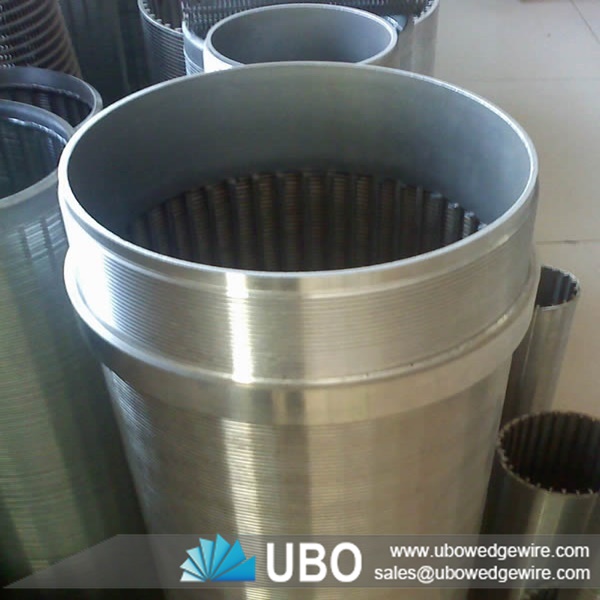

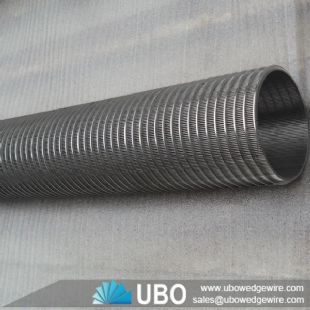

Wedge wire screen cylinder of filtration

More Views

Wedge wire screen cylinder of filtrationWedge wire screen cylinder of filtrationWedge wire screen cylinder of filtration

Wedge wire screen cylinder of filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire screen cylinder of filtration

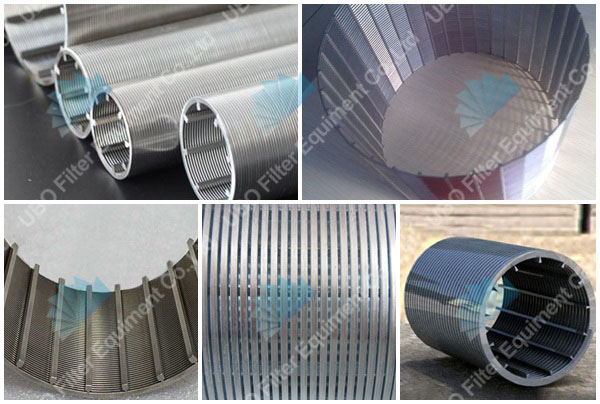

Wedge wire screen cylinders are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.

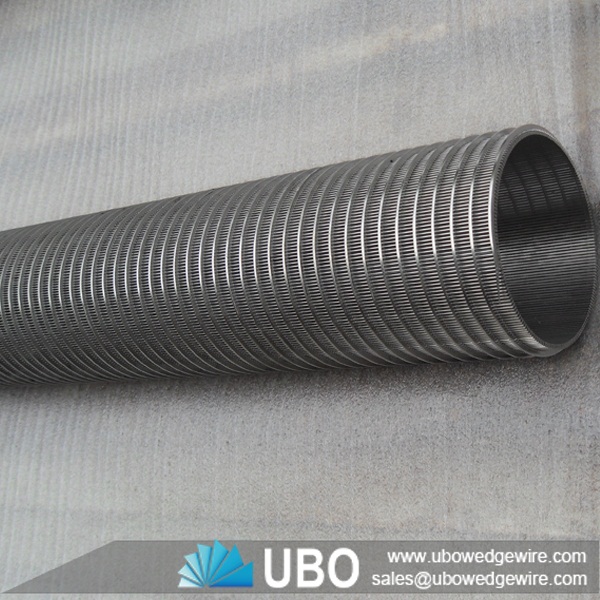

Wedge wire screen cylinder of filtration

Features of wedge wire screen cylinder of filtration

Wedge wire screen Cylinders have the features of great strength, precision, long service life and a wide range of applications in the field of process and engineering such as waste water treatment, sugar juice filtration, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, water, fuels, paints, food products, liquid cooling agents, and chemicals etc.

Wedge wire screen cylinders has a continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer)
A uniform and efficient well development due to the continuous slot opening.
A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.

Applications of wedge wire screen cylinder of filtration

- De-watering;

- Separating;

- Filtering;

- Straining;

- Sizing;

- Drying;

- Media retention

- Water intake;

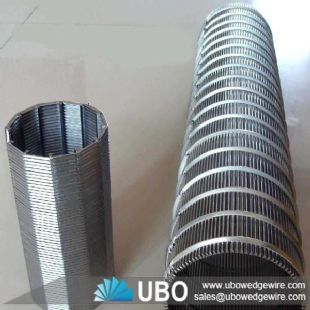

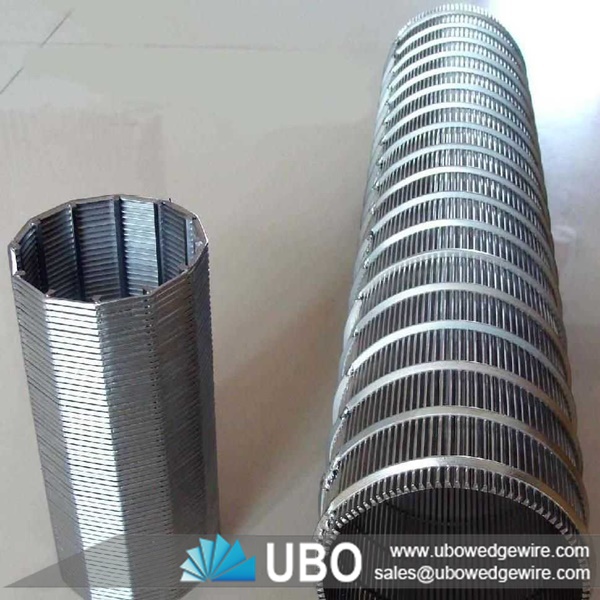

Wedge wire screen cylinder of filtration

Specifications of Wedge wire screen cylinder of filtration:

Specifications:

  Wedge wire screen Cylinder

Application:

oil well, gas well, water well, food processing, etc.

Materail:

wedge/ vee shape stainless steel wire(304/ 316L)

Profile wire:

wedge shape, Width(mm): 0.75   1.00   1.50   Height(mm): 1.50 2.00 3.00.

Support rods:

square shape, Width(mm): 2.00; Height(mm): 2.30 3.00;

Diameter(mm):

From 25.40 to 220mm

Length(mm):

under 2500mm

Filtering slot size(µm):

20µm,25µm,30µm,32µm,35µm,40µm,45µm...75µm...100µm...200µm...

300µm and much more large sizes, other sizes available as per request

End connection:

Beveled end, threaded coupling or flanged

Packaging

1 step: PE FOAM/ Buble paper
2 step: Wooden case
3 step: Straps

Delivery

30 Days after deposit

Wedge wire screen cylinder of filtration

Packaging and Transportation of Wedge wire screen cylinder of filtration:

packing

transportation
