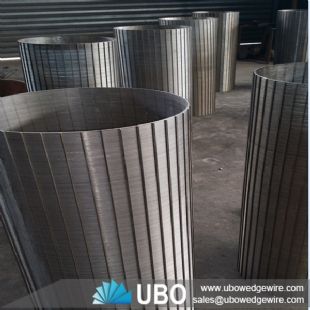

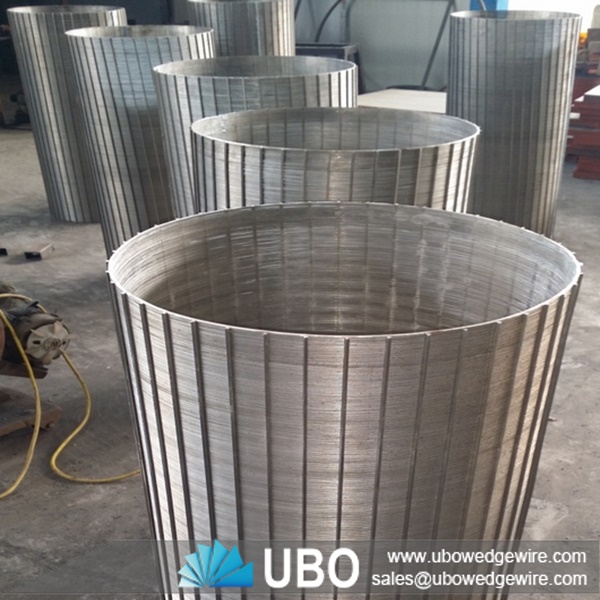

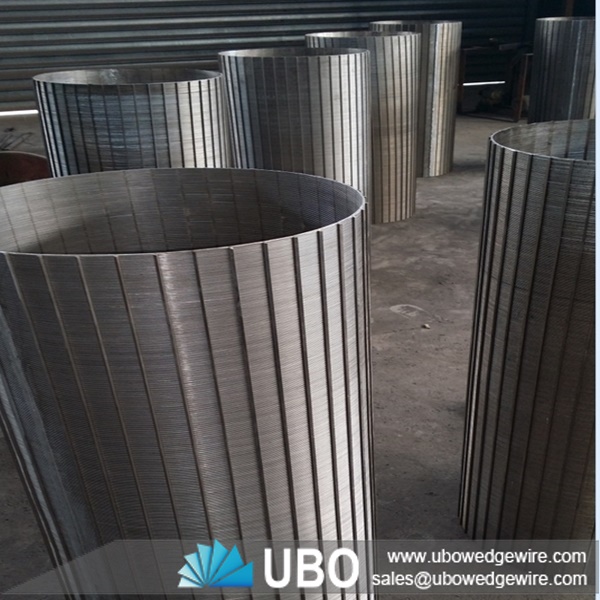

Wedge wire rotary screen for industry

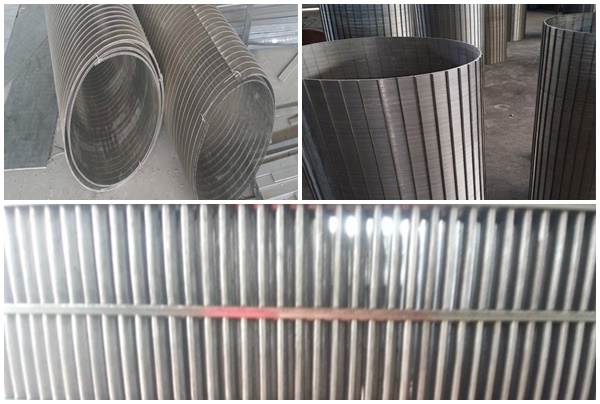

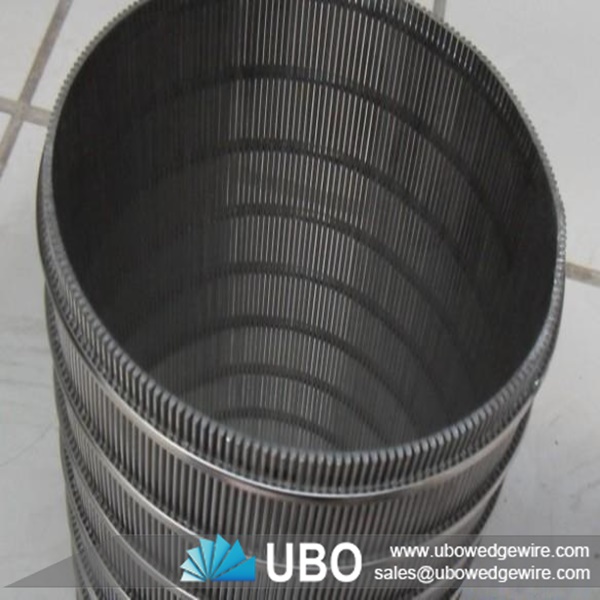

Wedge wire rotary screen can be designed with slot openings and wires running radial on the outside surface of the screen cylinder (above) or they can be positioned axially on the inside of the cylinder (below).

Each intersection of wedge wire and support rod is welded for strength and durability. Various wedge wire and support rod combinations can be used to produce the best screen design.

Characteristics of Wedge wire rotary screen for industry

1) continuous gaps provide larger aperture ratio
2) Precision gaps dimensions
3) difficult to clog,wear-resistance

Applications of Wedge wire rotary screen for industry

Wedge wire rotary screen are used as rotary screens, collectors such as screen laterals and nozzles,
resin traps, in-line strainers, water intake screens, well screens, as well as many other applications
involving liquid / solids separation.

Type: screen pipe

Material: Metal and stainless steel

Filter Rating: more than 98%

Usage:filteration

Thickness: 0.3mm-30mm

Length: 0.5-6m

Width: 25mm--600mm

slot: 0.05,.01 0.2 0.3 0.5 1.0.....60mm

wire diameter: 1.5x2mm,2x3mm,2.2x3.0mm,2.3x3.0mm,2.3x3.5mm......3.0x5.0mm

support rod: 3.0x4.0mm........3.8x4.3mm, 5.0x8.0mm

Technique: welded

Structure: Cartridge Filter

Coating: Galvanized/Polishing

shape: tubeless
