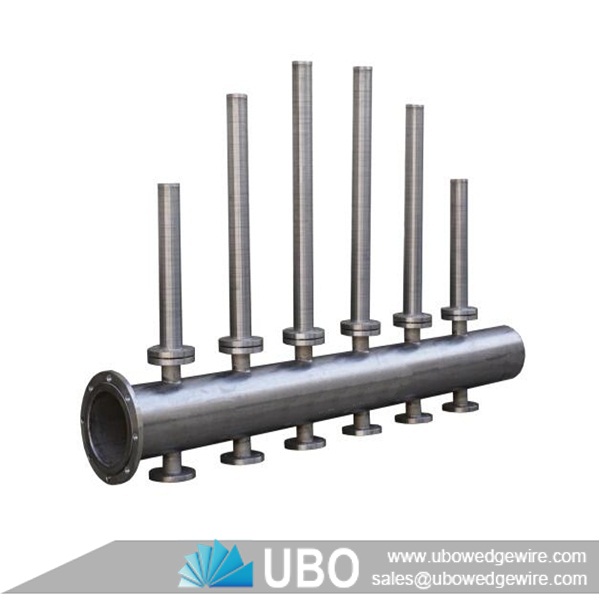

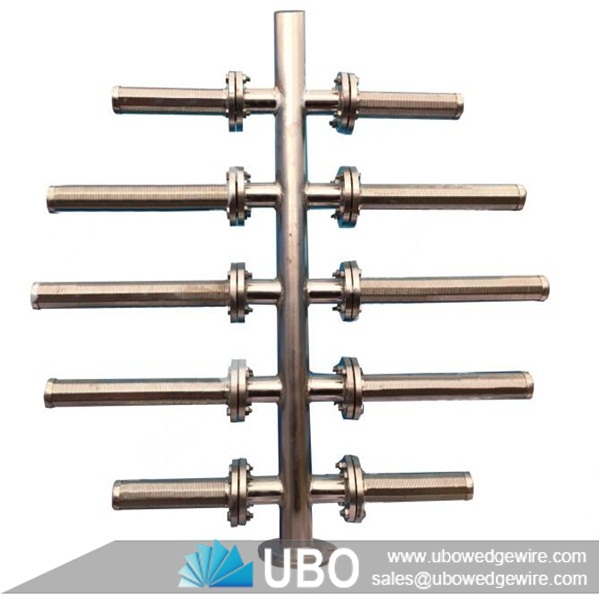

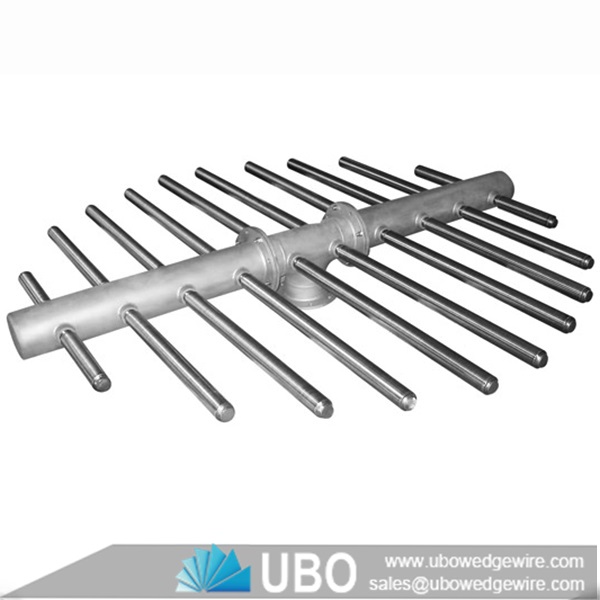

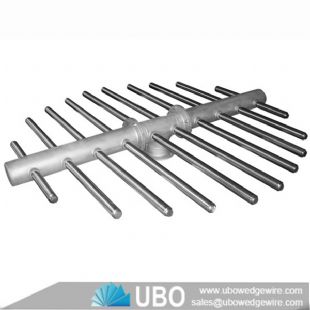

Wedge wire resin Refine header hub laterals

More Views

Wedge wire resin Refine header hub lateralsWedge wire resin Refine header hub lateralsWedge wire resin Refine header hub laterals

Wedge wire resin Refine header hub laterals

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire resin Refine header hub laterals

       They enable the system to collect completely to the bottom of the vessel. Header laterals are suited for flat bottom vessel distributor or collector applications. These systems can be designed to accommodate side, center, top or bottom inlet piping. Integral backwash systems can be designed for any hub or header lateral for a fast, effective and efficient cleaning of the screen. Laterals are usually connected to the hub or header with either flanges or threaded fittings. Systems are designed for effective liquid or solid retention in a wide range of applications including exchangers, clay or sand filtration, carbon towers and power plants with water systems. Our experienced engineering group designs each system to provide even distribution or collection across the entire cross-sectional area of the vessel.

Application for Wedge wire resin Refine header hub laterals:

Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Feature for Wedge wire resin Refine header hub laterals:

Hub Laterals can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel.
Header lateral design is also available for flat bottom vessel distributor or collector applications,All systems are designed for effective liquid or solid retention in a wide range of applications including ion exchangers, clay and sand filtration applications, carbon towers and power plants with water systems.

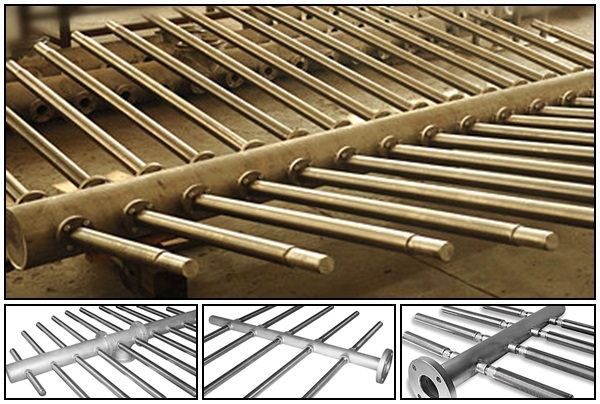

Wedge wire resin Refine header hub laterals

Specifications of Wedge wire resin Refine header hub laterals:

Wedge wire resin Refine header hub laterals

Type

Slots

ФA

ФB

L1

L2

L3

Pipe no

Flange1 DN

Flange2 DN

Length L

99,127,157,

199,224,254,

284,326,351,

538,508,607,

635,665,707,

792,834,861,

889,919,

1016,1046,

1088

AME

0.05

0.1

0.2

0.3

0.5

1

32

40

57

76

89

76

89

108

133

159

219

1100

1280

1500

1700

1800

2000

2500

3200

420

480

600

680

720

1100

1280

1500

1700

1800

6

8

10

12

25

32

40

50

65

80

50

65

80

100

125

150



Packaging and Transportation of Wedge wire resin Refine header hub laterals:

Wedge wire resin Refine header hub laterals
