Wedge wire flat screen panel for industry filtration

More Views

Wedge wire flat screen panel for industry filtrationWedge wire flat screen panel for industry filtrationWedge wire flat screen panel for industry filtration

Wedge wire flat screen panel for industry filtration

Category:Wedge Wire Application
Material:stainless steel302,321,304,316,316L
Properties:wedge wire screen
Application:water,oil,liquid filtration,solid filtration, papermaking,industry etc

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire flat screen panel for industry filtration

Wedge wire flat screen panel is made up of rods and profile wire. The rod can be round wire,triangular wire or trapezoid wire.The profile wire is triangular wire (V-shaped wire).Wedge wire screen has a structure and high open area,as well as accurate slot dimension.At the same time,water well screen have heat-resisting,anti-corrosive,good machine capability,last long,safety and reliability etc. characteristics.It can be used in many kinds of medium filtering.

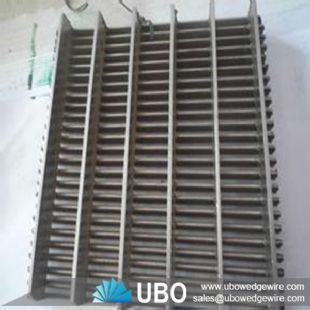

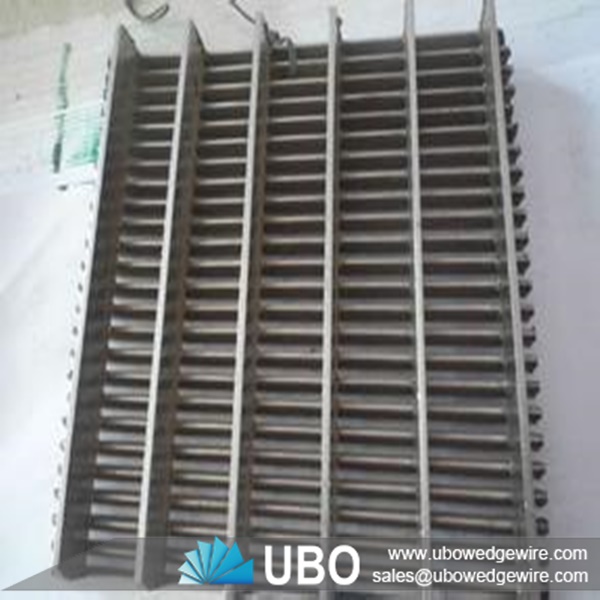

Wedge wire flat screen panel for industry filtration

Advantages of wedge wire flat screen panel for industry filtration

-- More fine fibre removal

-- Better flow rate

-- Original solutions to reduce spare parts cost

-- Special alloys for improved wear life

-- Customised surface finishing

Usages of wedge wire flat screen panel for industry filtration

Wedge wire screen is a kind of filtered water tubing with the perforation.It can be used with the deep well pump,dive the water pump,also may be used in the water-treating equipment,the environmental protection,the sea water transforms into the industrial water and life use water desalination treatment,running water treatment,water softening treatment,the petroleum industry,The petroleum product terminal filters and the chemical acid,the alkali liquid filters,the ethyl alcohol and so on the organic solution recycling filters.

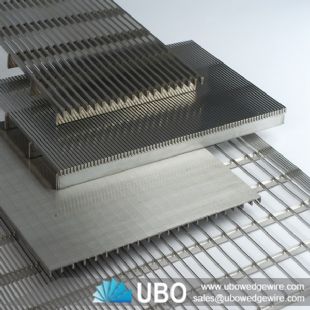

Wedge wire flat screen panel for industry filtration

Specifications of Wedge wire flat screen panel for industry filtration:

1.Profile Wire:#63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
2.Support Rod:1.V shaped. #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
3.Steel Flat. 1.5*20mm, 2.0*25mm, 2.5*30mm etc.
4.Frame:Iron Frame, Steel Frame, or Nothing.

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian



End connection

Plain beveled ends, flanged or threaded couplings

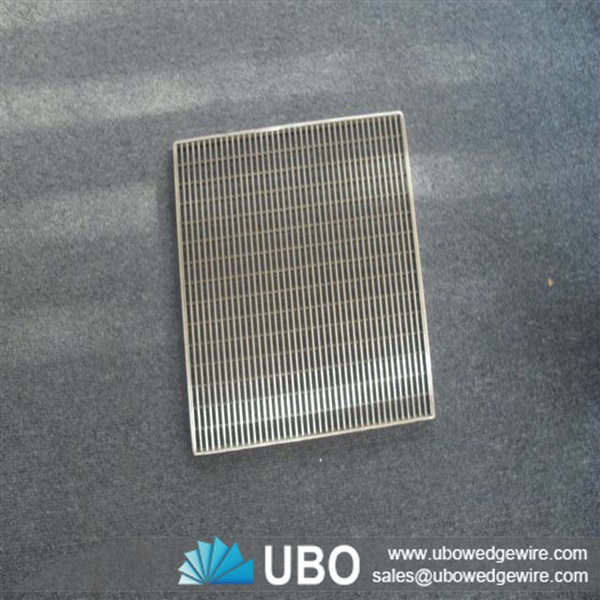

Wedge wire flat screen panel for industry filtration

Packaging and Transportation of Wedge wire flat screen panel for industry filtration:

packing & transportation
