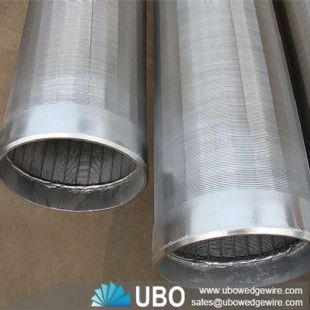

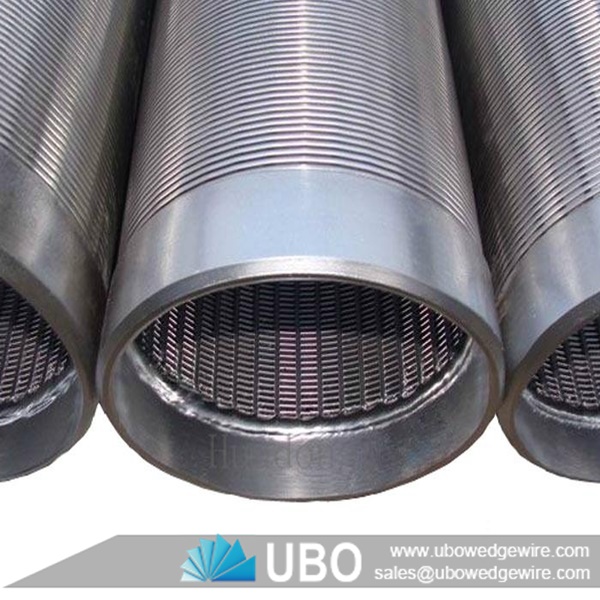

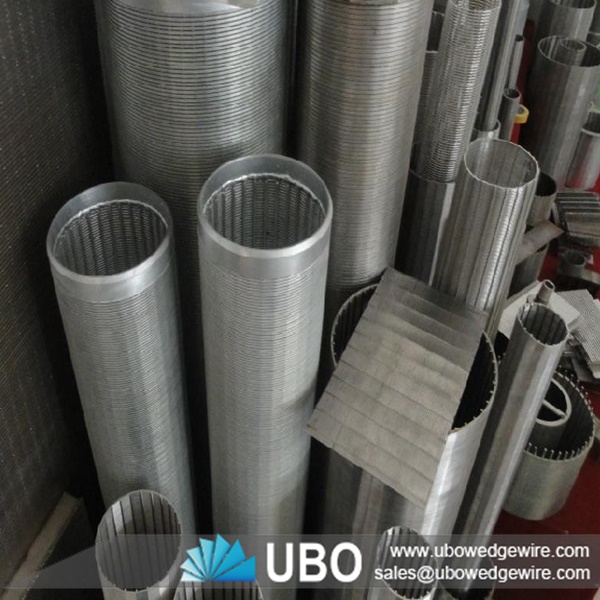

Wedge wire cylindrical element for industry filtration

More Views

Wedge wire cylindrical element for industry filtrationWedge wire cylindrical element for industry filtrationWedge wire cylindrical element for industry filtration

Wedge wire cylindrical element for industry filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire cylindrical element for industry filtration

These screens are known in variety of names like: Water well screens, wedge wire well screens, V wire screens, continuous slot well screens, wire wrapped screens, screen cylinders, wedge slot tubes, wire wrap screen, etc.
A wedge wire cylindrical element / spirally wound on internal array of support rods. Each and every intersection is welded automatically. This creates a continuous non clogging slot.

Advantages of Wedge wire cylindrical element for industry filtration

· Extra strength
The Xinlu wire wrapped screen combines high strength and superior corrosion resistance for unsurpassed durability during installation or retrieval. The stainless steel wrap wire— Firmly welded to every rib wire— Is designed not to shift or unwind in the unlikely event should it be damaged downhole.

· Large inlet area
The Xinlu screen has a much larger inlet area than conventional wire-wrapped screens. No solder strips, weld beads or lugs are present to block flow. Plus, a larger inlet area results in lower entrance velocity for produced fluids, reducing the potential for screen erosion.

· Filtration assurance
With precise gauge control for reliability, gauge spacing of the screen is permanent. Weld strength and wire orientation are controlled to ensure the gauge required is the gauge delivered down hole.

· Filter Construction
Round wires form the ribs, while the diameter and number are specified by the strength required and size of screen. Wedge Vee - Keystone-shaped wire is used for the wrap wires, which are helically wrapped around the preset vertical rib wires. Each point of contact is welded using a proprietary Xinlu procedure. Wrapping is accurately controlled— Resulting in a uniform, precise gauge. The keystone shape of the wrap wire forms "V" shaped openings between wraps. This shape opening provides self-cleaning action and greatly reduces flow friction. Smaller particles can easily pass through the continuous slot while larger ones are held out without inhibiting the total inlet area.

Uses of Wedge wire cylindrical element for industry filtration

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid,powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

           Wedge wire cylindrical element for industry filtration

Specifications of Wedge wire cylindrical element for industry filtration:

SLOT

(INCH)

LENGTH

(m)

WIDTH

(m)

COLLAPSE

STERENG

(PSI)

TENSILE

WEIGHT

(TON)

WRAP

(thick*deep)

(mm)

RODS

(mm)

0.04

1-6

0.5-2

395

6

2.2*3.0

3.8mm/22

0.04

1-6

0.5-2

395

6

2.3*3.0

3.8mm/22

0.04

1-6

0.5-2

252

8

2.3*3.5

3.8mm/32

0.01

1-6

0.5-2

399

10.5

3.0*5.0

3.8mm/48

0.02

1-6

0.5-2

370

10.5

3.0*5.0

3.8mm/48

0.04

1-6

0.5-2

323

10.5

3.0*5.0

3.8mm/48

0.01

1-6

0.5-2

206

11

3.0*5.0

3.8mm/50

0.02

1-6

0.5-2

191

11

3.0*5.0

3.8mm/50

0.04

1-6

0.5-2

167

11

3.0*5.0

3.8mm/50





PROFILE WIRE
WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

SUPPORT ROD
ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----
