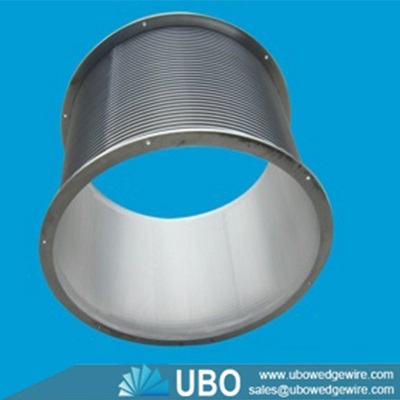

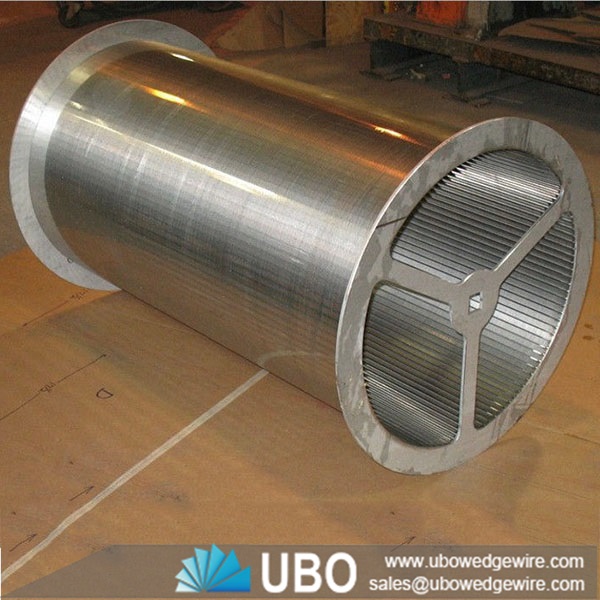

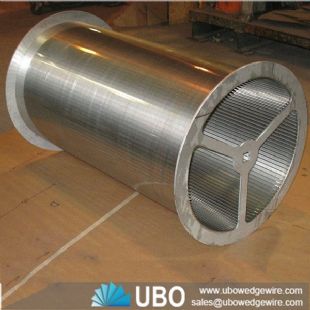

Wedge wire Vessel Internals for booster pump stations

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Cylinder
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire Vessel Internals for booster pump stations

Welded continuous slot wedge wire screens are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Features for Wedge wire Vessel Internals for booster pump stations:

Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.

High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.

High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

Usages for Wedge wire Vessel Internals for booster pump stations:

Wedge wire well screen pipe has a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid , liquid , solid and gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

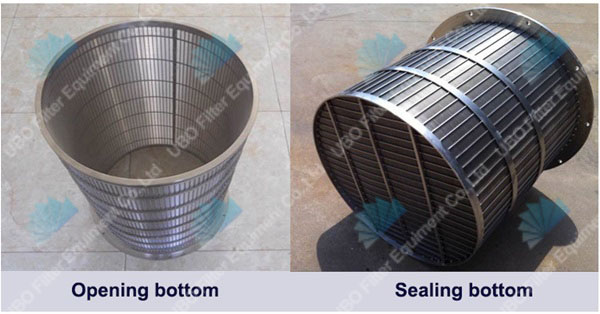

Wedge wire Vessel Internals for booster pump stations

Specifications of Wedge wire Vessel Internals for booster pump stations:

Wedge wire Vessel Internals for booster pump stations Wedge wire Vessel Internals for booster pump stations



Wedge wire Vessel Internals for booster pump stations



Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05





Packaging and Transportation of Wedge wire Vessel Internals for booster pump stations:

 Outside Diameter Profile wire Rod wire Rod quantity Slot size Length DN Inch mm mm mm mm mm 20 3/4 26.9 1.5*2 2*3 12 0.1~0.25 45~3000  25 1 33.7 1.5*2 2*3 14 0.1~0.25 45~3000  32 1-1/4 42.4 1.5*2 2*3 16 0.1~0.25 45~3000  40 1-1/2 48.3 1.5*2 2*3 16 0.1~0.25 45~3000  50 2 60.3 1.5*2 2*3 18 0.1~0.5 45~3000  65 2-1/23 76.1 1.5*2 2*3 20 0.1~0.5 45~3000  80 3 88.9 1.8*2.5 2*3 24 0.1~0.5 1000~6000  100 4 114.3 1.8*2.5 2*3 30 0.5~2 1000~6000  125 5 139.7 2.3*2.7 2*3 36 0.5~2 1000~6000  150 6 168.3 2.3*2.7 3*5 44 0.5~2 1000~6000  200 8 219.1 3.3*3.5 3*4.7 56 0.5~2 1000~6000  250 10 273 3.3*3.5 4*6 66 0.5~2 1000~6000  300 12 323.9 3.3*4.7 4*6 72 0.5~2 1000~6000  350 14 355.6 3.7*5 4*6 80 0.5~2 1000~6000  400 16 406.4 1.5*2 2*3 94 0.1*2 1000~6000  450 18 457 2*3 4*5 112 0.1*2 500~400  500 20 508 2*3 4*5 124 0.1*2 500~400  550 22 559 2*3 4*5 140 0.1*2 500~400  600 24 610 2*3 4*5 156 0.1*2 500~400  Siot:0.1mm~2mm    Tolerance:0.05
