Wedge Wire wedge v wire screen plate for filtration
| Category: | Wedge Wire Application |
|---|---|
| Material: | stainless steel 302,304,316, 316L |
| Properties: | wedge wire screen |
| Application: | water,oil,liquid filtration,industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire wedge v wire screen plate for filtration

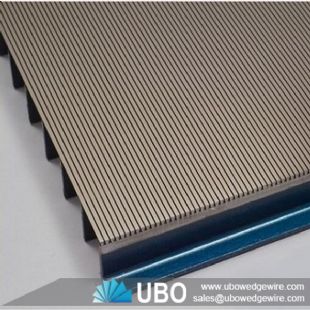

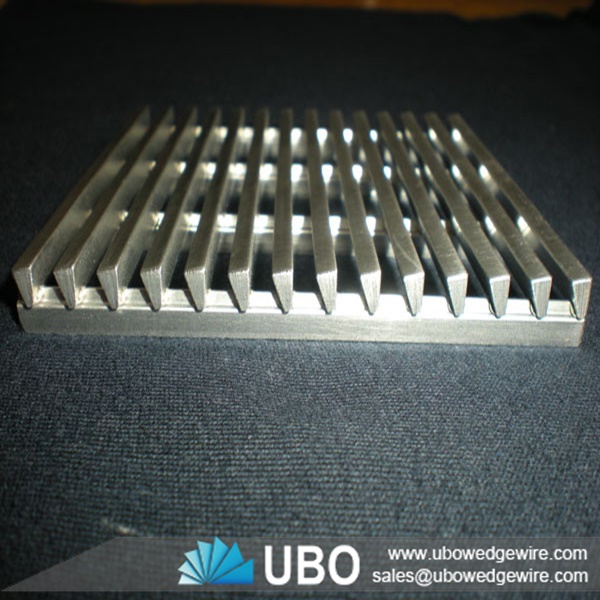

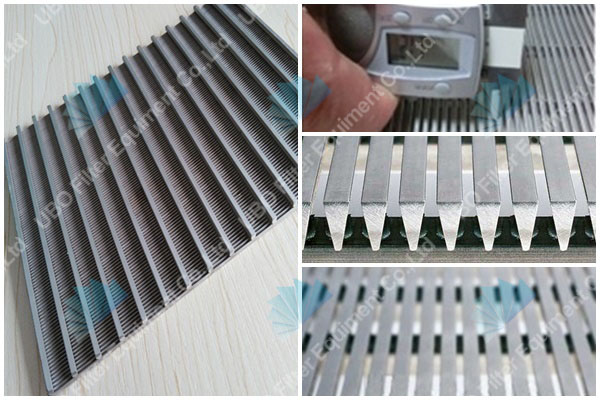

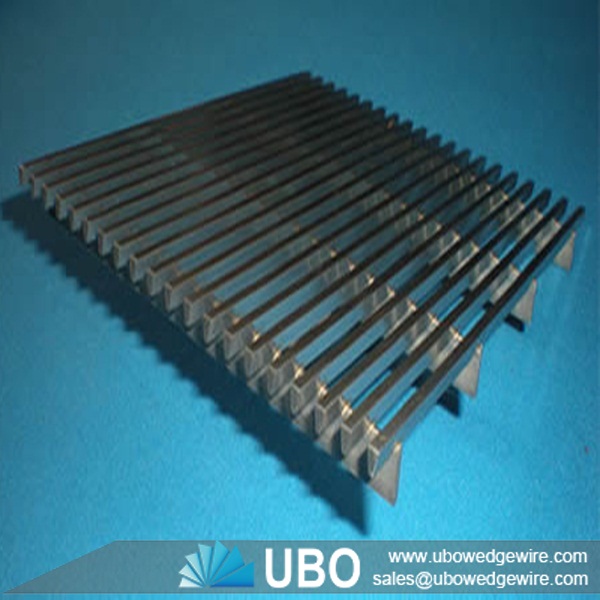

Wedge Wire wedge v wire screen plate is made of SS "V"shaped and SS "V"shaped or SS "V"shaped and SS rod ,and SS "V"shaped and SS "Square "shaped rod with an unique weldeding process, offering great strenght .precision ,long service life . The Screen have a perfectly flat and smoothsurface with rectangular openings , also named flat wedge wire screen ,flat wedge wire screen panel or wegde wire .
Advantages of Wedge Wire wedge v wire screen plate for filtration
1. With smooth surface, the material is easy to flow.
2. Uniform slot can reach high efficiency sieving
3. Unique processing technic ensures the higher supporting strength
4. Can be manufactured into any shape per customer's request
Application of Wedge Wire wedge v wire screen plate for filtration
It is widely applied in the screening, filtering, dehydration and slime separation of various industries, such as chemical industry, petrochemical industry, environmental protection, water treatment, paper making, water filtration, starch processing, sugar refining, coal washing, solid-liquid separation separation, ore screening and etc.
Specifications of Wedge Wire wedge v wire screen plate for filtration:
|
|
|
|
Material: |
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.) |
|
Wedge Wire (mm): |
Width : 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
|
Support Rod (mm): |
Width : 2.30 3.00 3.30 3.70 |
|
Height : 2.70 3.60 4.70 5.60 6.30 |
|
|
Round : 2.50mm -- 6.0mm |
|
| Width |
from 1 inch -----45 inch. |
|
Length: |
lengths up to 6 meters. |
|
Slot size: |
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request. |
|
Note: Other specifications can be customized according to your requirement |
|
Packaging and Transportation of Wedge Wire wedge v wire screen plate for filtration:
Packaging
1. All the products are packed in seaworthy wooden cases.
2. Any special requirement for package, please feel free to tell us.
