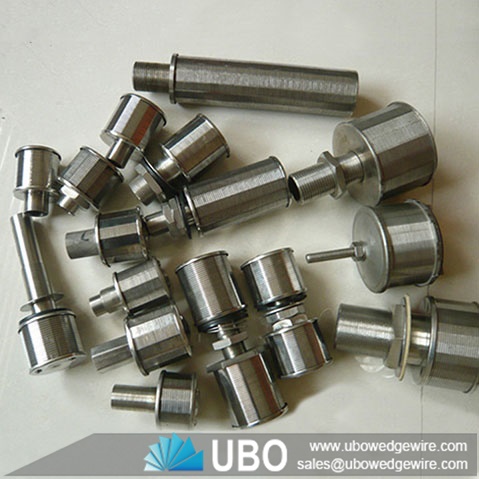

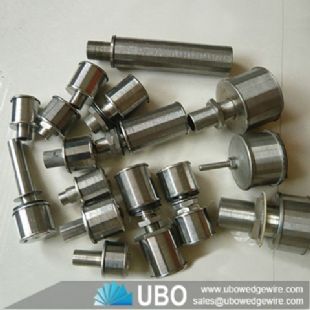

Wedge Wire screen nozzle Double and single cap strainer water filter

More Views

Wedge Wire screen nozzle Double and single cap strainer water filterWedge Wire screen nozzle Double and single cap strainer water filterWedge Wire screen nozzle Double and single cap strainer water filter

Wedge Wire screen nozzle Double and single cap strainer water filter

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Filter Nozzle
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire screen nozzle Double and single cap strainer water filter

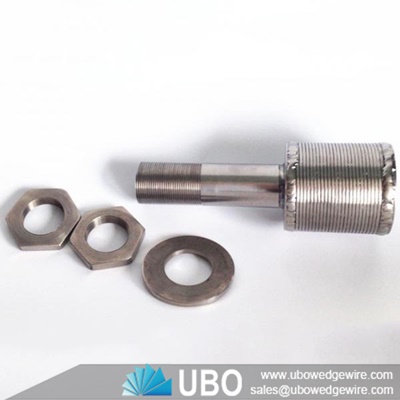

SS wedge wire screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

Application for Wedge Wire screen nozzle Double and single cap strainer water filter :

Stainless Steel wedge wire water treatment filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Feature for Wedge Wire screen nozzle Double and single cap strainer water filter:

1.We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.
2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities
3.After work for a period of time, the filter can be back flush.It can use for many times.
Filtering direction from outside to inside (FOTI)

Advantages for Wedge Wire screen nozzle Double and single cap strainer water filter:

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Technology for Wedge Wire screen nozzle Double and single cap strainer water filter:

Manfre introduce advanced korea technology , the construction method used is the latest, ultra clean TiG and plasma welding system. This method of construction guarantees cartridge integrity, eliminating the risk of bypass and the presence of extractables derived from any bonding agents

Wedge Wire screen nozzle Double and single cap strainer water filter

Specifications of Wedge Wire screen nozzle Double and single cap strainer water filter:

Wedge Wire screen nozzle Double and single cap strainer water filter

Catalogue Item

Slots  mm

Thread

ΦAmm

Thread length  L1mm
Shaft  L2 mm

L3 mm

Type B

0.05, 0.1, 0.2, 0.3 , 0.5, 1.0

1¼"WW

32

25,30,45

80,110,

40,200,

250,300,

350,…

45,50,55,

 60,70,80

M30

30*3.5

30

G 3/4"

26.5

20,45,+5+5...

1"WW

25.4

20,45,+5+5...

M24

24

20,45,+5+5...

Packaging and Transportation of Wedge Wire screen nozzle Double and single cap strainer water filter:

Wedge Wire screen nozzle Double and single cap strainer water filter



Wedge Wire screen nozzle Double and single cap strainer water filter
