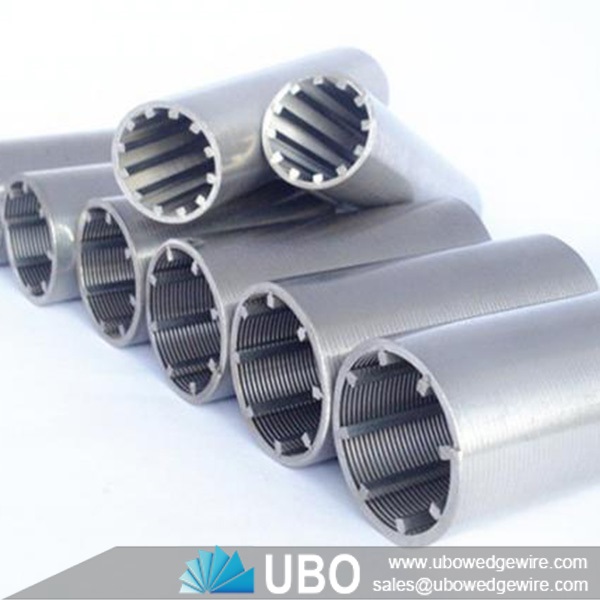

Wedge Wire Wrapped Screen Pipe for Water Well

More Views

Wedge Wire Wrapped Screen Pipe for Water WellWedge Wire Wrapped Screen Pipe for Water WellWedge Wire Wrapped Screen Pipe for Water Well

Wedge Wire Wrapped Screen Pipe for Water Well

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Cylinder
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Wrapped Screen Pipe for Water Well

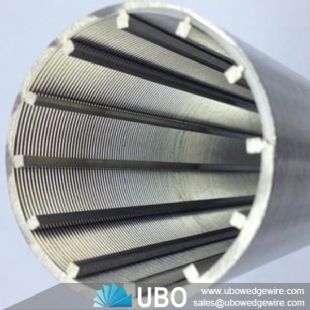

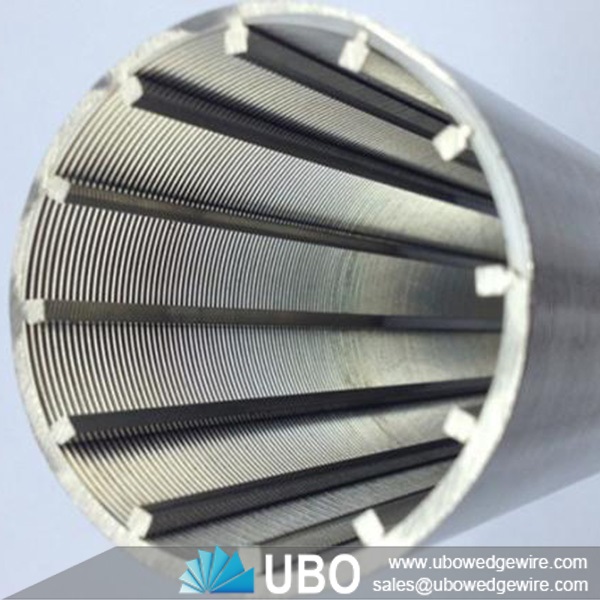

Wedge wire wrapped screen pipe for water well is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension.

Advantages for Wedge Wire Wrapped Screen Pipe for Water Well:

1) Non-clogging construction: The V-shape section plane of wedge wire screens (Johnson type screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2) Large Filtering Area: The consecutive slot of wedge wire screens (Johnson type screens) have wider open area,
and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better,which can increase the water yield and prolong service time of the well.

3) Long service life Wire and support rods are all-welded, which makes wedge wire screens (Johnson types screens) more robust and longer life.

4) Excellent construction strength: The longitudinal support rods and the continuous slot make the wedge wire screens(Johnson type screens) have more excellent pressure-resistant performance.

5) Specifications and end connections of wedge wire screens(Johnson screens) can me fabricated according to customers’ requirements.

Usages for Wedge Wire Wrapped Screen Pipe for Water Well:

It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Features for Wedge Wire Wrapped Screen Pipe for Water Well:

1) They consist of V-shape or wedge shape profile wire and the longitudinal support rods.

2) The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.

3) Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.

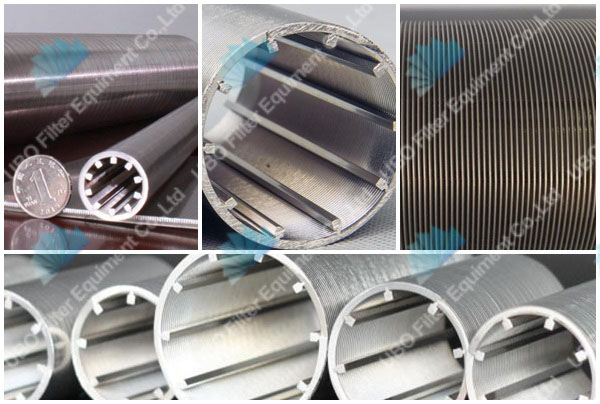

Wedge wire wrapped screen perforated pipe for water well

Specifications of Wedge Wire Wrapped Screen Pipe for Water Well:



Specification (Wedge Wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (Support Rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot Size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End Connection

Plain beveled ends, flanged or threaded couplings

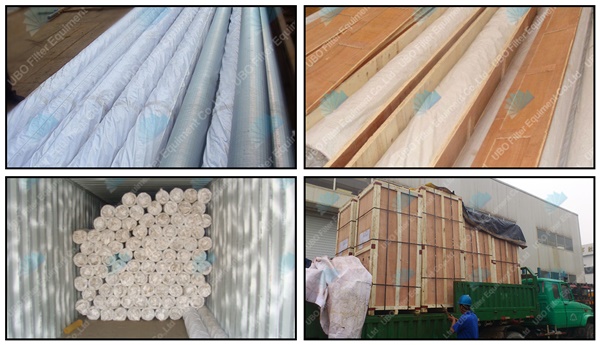

Packaging and Transportation of Wedge Wire Wrapped Screen Pipe for Water Well:
