Quality Wedge Wire Screen Manufacturer in China

Wedge Wire Wrapped Profile Screen Panel Filter

More Views

Wedge Wire Wrapped Profile Screen Panel FilterWedge Wire Wrapped Profile Screen Panel FilterWedge Wire Wrapped Profile Screen Panel Filter

Wedge Wire Wrapped Profile Screen Panel Filter

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Details of Wedge Wire Wrapped Profile Screen Panel Filter

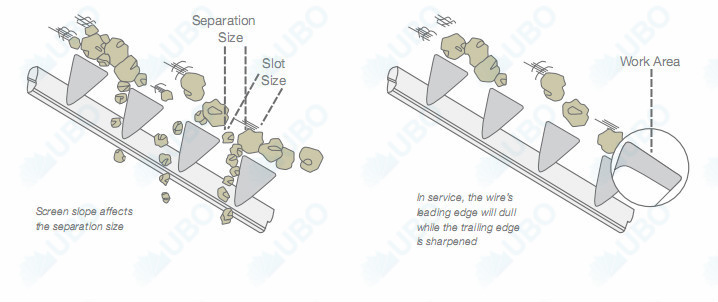

Wedge wire wrapped profile screen plates can be used in a variety of applications ranging from classifying to recovering usable products that would end up in sewer line to capturing solids from effluents.

This screen panel gives you a great amount of open area, is significantly more affordable and requires less maintenance than vibrating or rotary drum options.

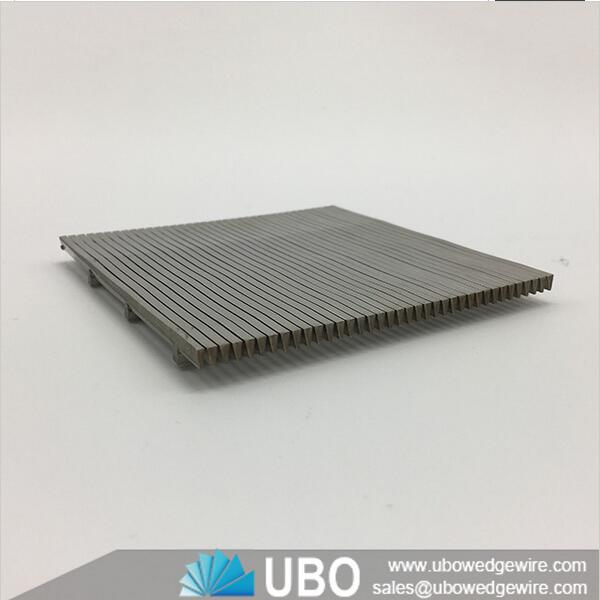

Wedge Slot wrapped wire screen plate welded wire panel filter

Wedge Slot wrapped wire screen plate welded wire panel filter

Application of Wire Wrapped Profile Screen Panel Filter

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification

Feature of Wire Wrapped Profile Screen Panel Filter

-- High mechanical strength

-- High wear resistance

-- High impact resistance

-- Larger open area

-- Self-supporting structure

-- Non-plugging slot design

-- Lower operation and maintenance cost

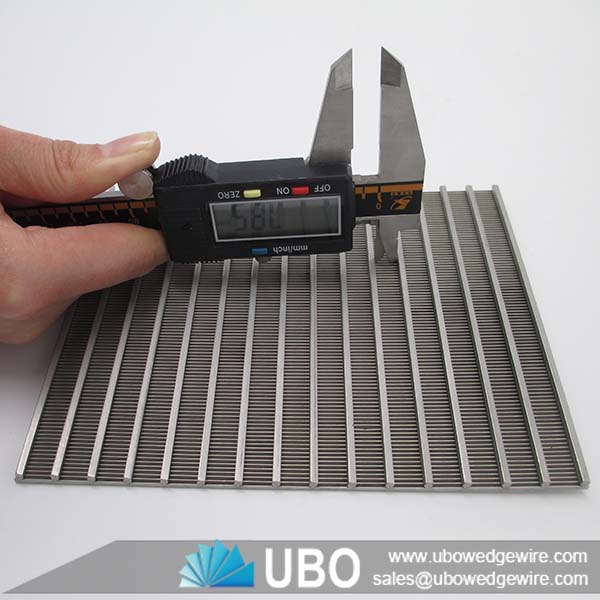

Wedge Slot wrapped wire screen plate welded wire panel filter

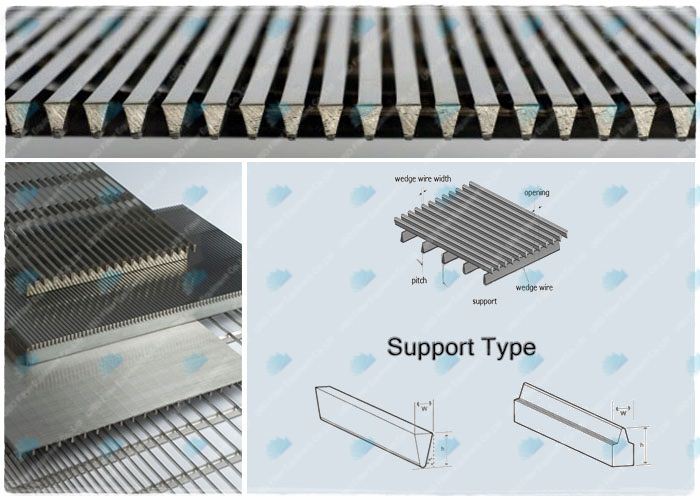

Specifications of Wedge Wire Wrapped Profile Screen Panel Filter:

Wedge Slot wrapped wire screen plate welded wire panel filter



Wedge wire screen panel
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Length Can be customized as your request
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.

Packaging and Transportation of Wedge Wire Wrapped Profile Screen Panel Filter:

Wedge Slot wrapped wire screen plate welded wire panel filter
