Wedge Wire Wrapped Liner Screen for Petrochemical Filtration

More Views

Wedge Wire Wrapped Liner Screen for Petrochemical FiltrationWedge Wire Wrapped Liner Screen for Petrochemical FiltrationWedge Wire Wrapped Liner Screen for Petrochemical Filtration

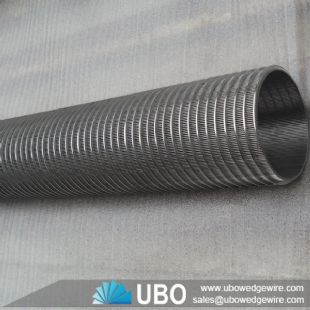

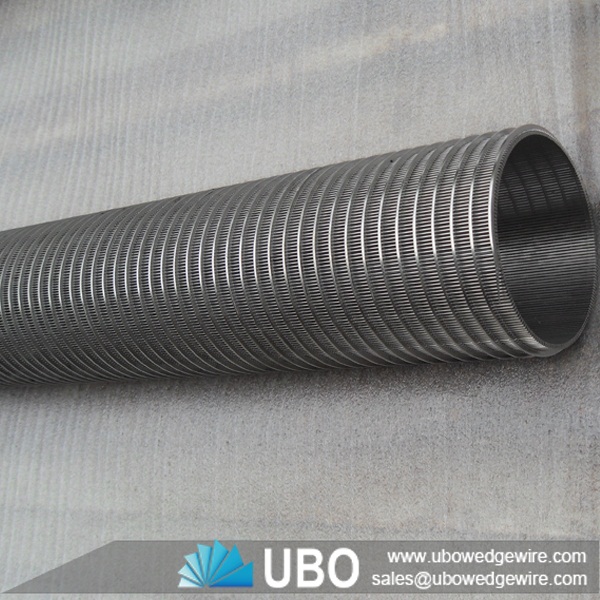

Wedge Wire Wrapped Liner Screen for Petrochemical Filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,petrochemical filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Wrapped Liner Screen for Petrochemical Filtration

The wedge wire wrapped liner screen is also called wedge wire water screen, water well screen, water well screen pipe, well screen filter, Wedge Wire Screen filter Stainless steel Pipes, Cartridge type Johnson, Cartridge filter, 304 V wire pipes for water filtration, water treatment sieve, Screen Pipes, All welded continuous slot screen, Filter element for water /oil treatment.

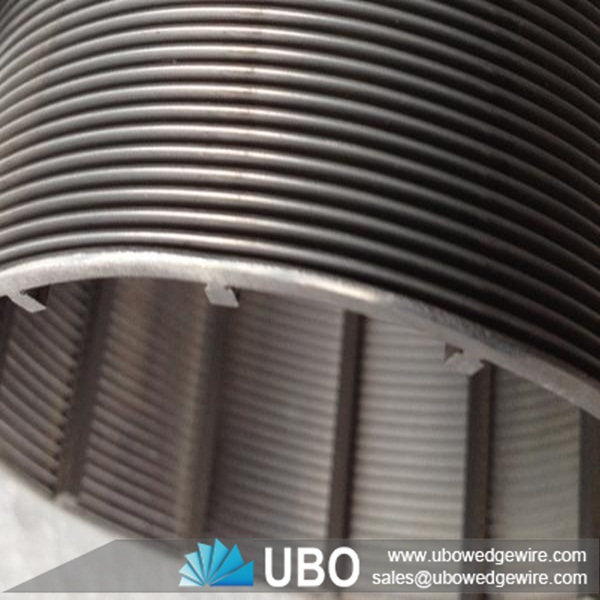

Wedge wire wrapped liner screen is composed of a surface profile that is spirally wrapped around axial support profiles and attached to each other by resistance welding. Wedge wire screen have the unique advantages of very accurate, narrow slot openings and perfect roundness all in one. Our wedge wire screen can be provided with the necessary end pieces for attachments and/or reinforcements.

Features of Wedge Wire Wrapped Liner Screen for Petrochemical Filtration

The Continuous slot screens are made of V-shape wire or wedge shape wire around an internal array of longitudinal support rods. Each joint point of these wire is fusion welded, the V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. Therefore the screen allows water or oil to enter the well freely in ample quantities while keeps the majority of sand and gravel out of the well at the same time.

Advantages of Wedge Wire Wrapped Liner Screen for Petrochemical Filtration

Non clogging:"V" shaped profile wire, avoids clogging, is self-cleaning and ensures an uninterrupted flow. Sand grains make only two point contact and do not wedge in the screen's inwardly enlarging slot.

Large open area: This allows more water to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.

High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

Applications of Wedge Wire Wrapped Liner Screen for Petrochemical Filtration

The wedge wire wrapped screen is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and so on the organic solution recycling filters.

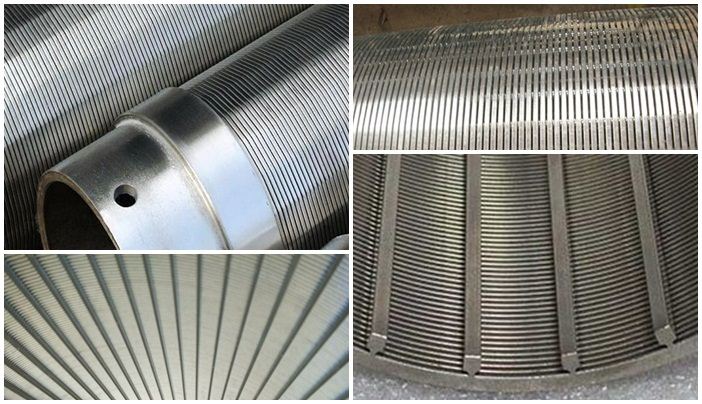

wedge wire wrapped liner screen for petrochemical filtration

Specifications of Wedge Wire Wrapped Liner Screen for Petrochemical Filtration:

wedge wire wrapped liner screen for petrochemical filtration

Wedge Wire Wrapped Liner Screen
Material: AISI304/316/316L,Galvanized Low Carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot / Opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Length / Width Can be customized as your request
Diameter 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.


Packaging and Transportation of Wedge Wire Wrapped Liner Screen for Petrochemical Filtration:

transportation
