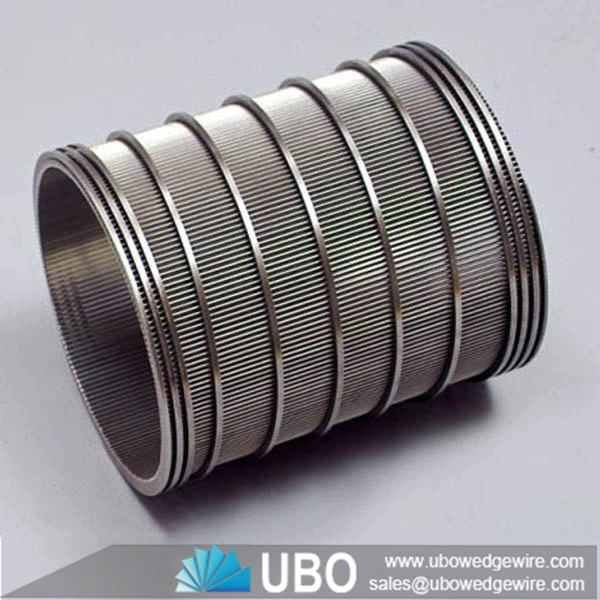

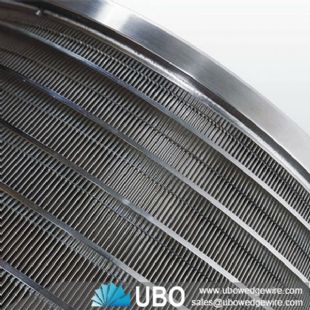

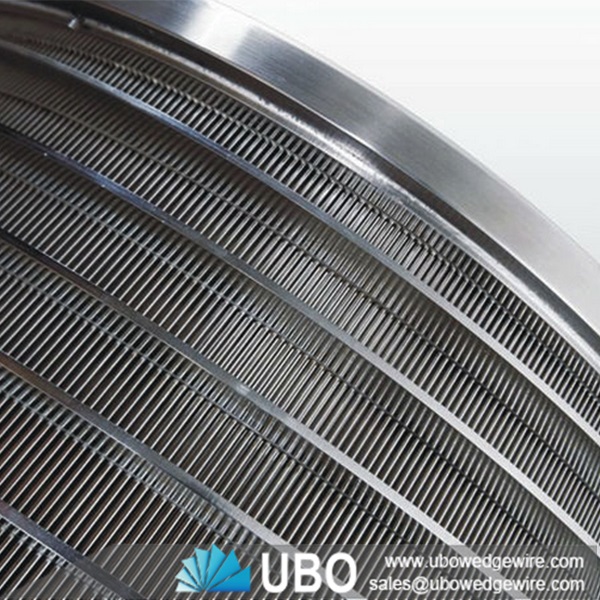

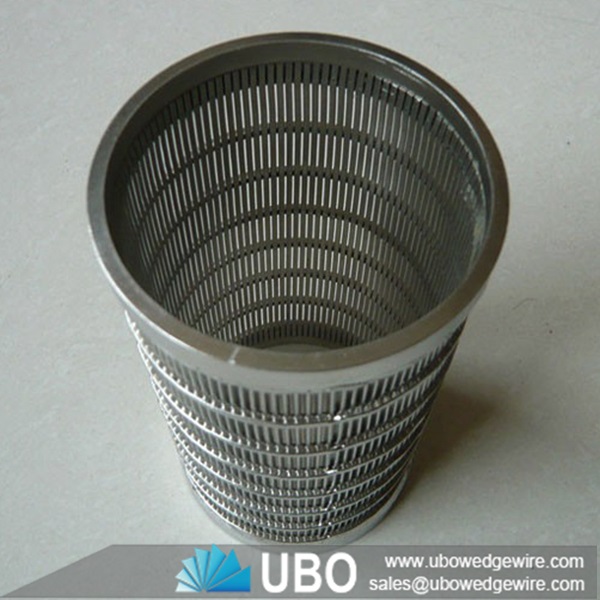

More Views

Wedge Wire Stainless Steel V Wire Water Well Screen Pipe ManufacturerWedge Wire Stainless Steel V Wire Water Well Screen Pipe ManufacturerWedge Wire Stainless Steel V Wire Water Well Screen Pipe Manufacturer

Wedge Wire Stainless Steel V Wire Water Well Screen Pipe Manufacturer

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Pipe
Application:Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Stainless Steel V Wire Water Well Screen Pipe Manufacturer

     The advanced wire wrapped screen technology provides superior weld strength and accurate slot openings. The accurate V-shaped wires provide free flow and optimal sand control.
      A large number of support rods increases tensile strength and achieves rounder and stronger screens.The screen jacket is fully pickled and passivated for maximum corrosion resistance.

Wedge Wire Stainless Steel V Wire Water Well Screen Pipe Manufacturer

Application for Wedge Wire Stainless Steel V Wire Water Well Screen Pipe Manufacturer:

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load.
Used for fiber removal in Starch industry.

Advantage for Wedge Wire Stainless Steel V Wire Water Well Screen Pipe Manufacturer:

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.
3. Reduce the abrasion of the pump Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells Comparatively, groundwaters entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

Characteristics for Wedge Wire Stainless Steel V Wire Water Well Screen Pipe Manufacturer:

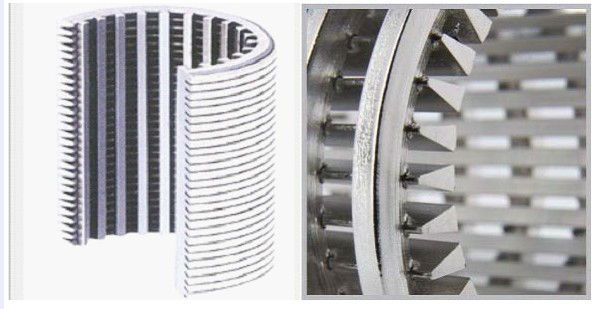

1.They consist of V-shape or wedge shape profile wire and the longitudinal support rods.
2.The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.
3.Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.

Wedge Wire Stainless Steel V Wire Water Well Screen Pipe Manufacturer

Specifications of Wedge Wire Stainless Steel V Wire Water Well Screen Pipe Manufacturer:

Wedge Wire Stainless Steel V Wire Water Well Screen Pipe Manufacturer

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
