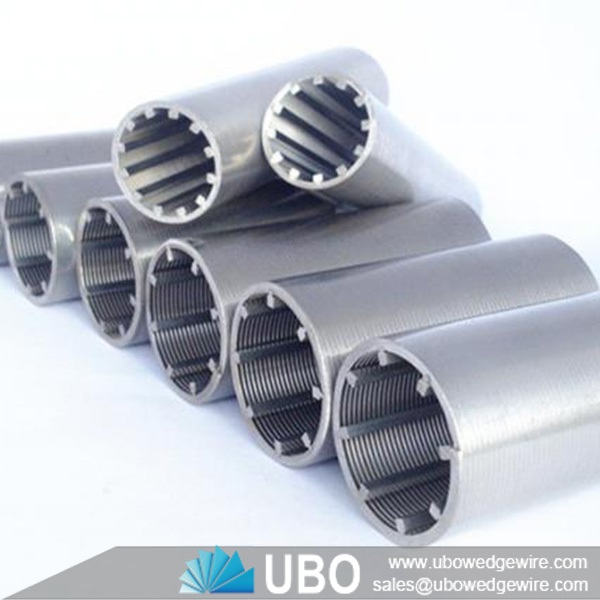

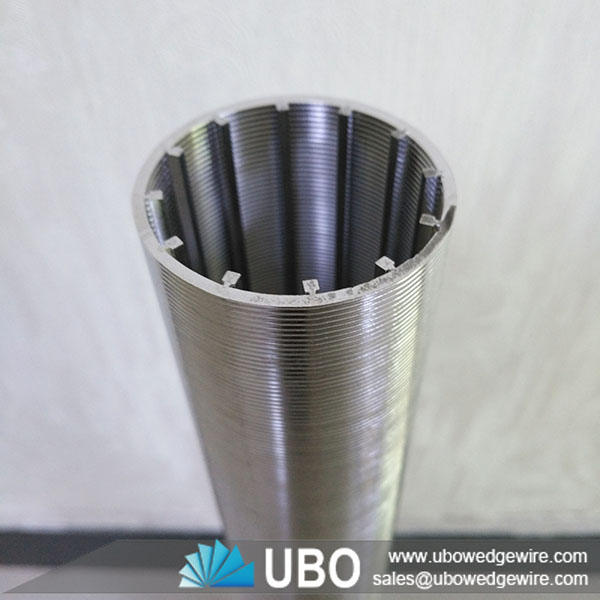

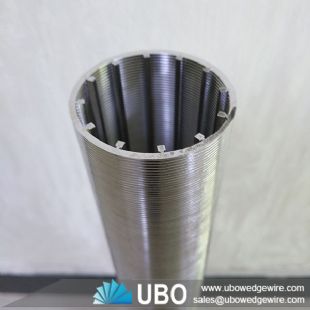

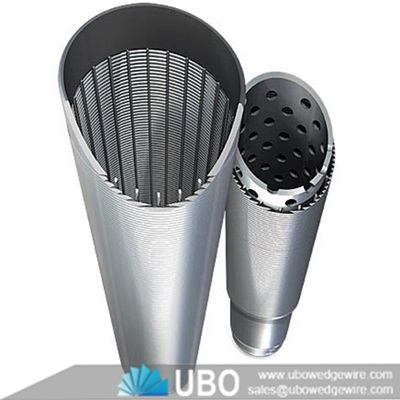

Wedge Wire stainless steel wedge wrapped v wire screen tube
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen pipe |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire stainless steel wedge wrapped v wire screen tube
The Wedge Wire stainless steel wedge wrapped v wire screen tube is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.
The Wedge Wire stainless steel wedge wrapped v wire screen tube can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.
Applications of Wedge Wire stainless steel wedge wrapped v wire screen tube
Petroleum industry. Oil filtration.
Water treatment industry. Desalination of seawater, treatment of industrial water and domestic water. Water softening treatment.
Chemical industry. End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol and other products filtering.
Hydro-geological exploration.
Drilling construction.
Geothermal development.
Characteristics of Wedge Wire stainless steel wedge wrapped v wire screen tube
1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits
Specifications of Wedge Wire stainless steel wedge wrapped v wire screen tube:
|
|||||||
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
||||||
OD Range |
19mm-2000mm |
||||||
ID Range |
13mm-1981mm |
||||||
Length Range |
Up to 6000 mm |
||||||
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
||||||
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5*2 |
2x3 |
2*4 |
3*5 |
Support Rod |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.8*2.5
2x3 |
2x3
2x4
3x5
3x6
3x10
4x7 |
2x4
3x5
3x6
3x10
4x7
5x6 |
3x5
3x6
3x10
4x7
5x6
5x8 |
End Finishing |
Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc |
||||||
Note |
Customized According To Requirement |
