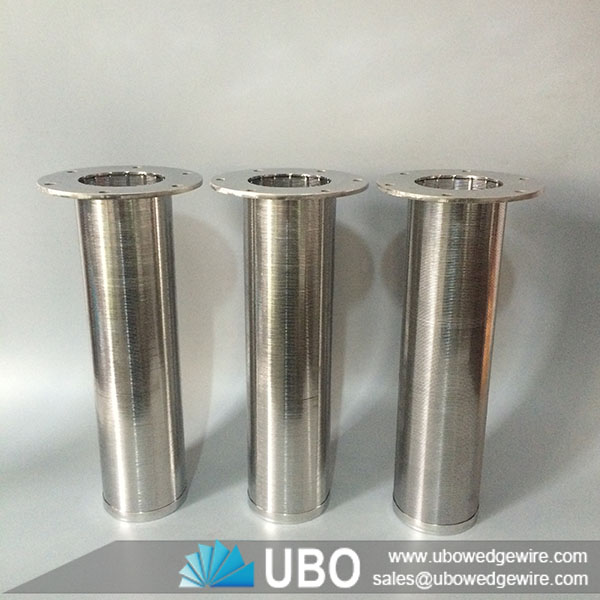

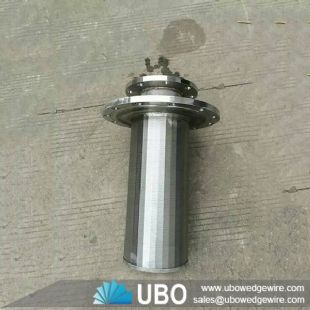

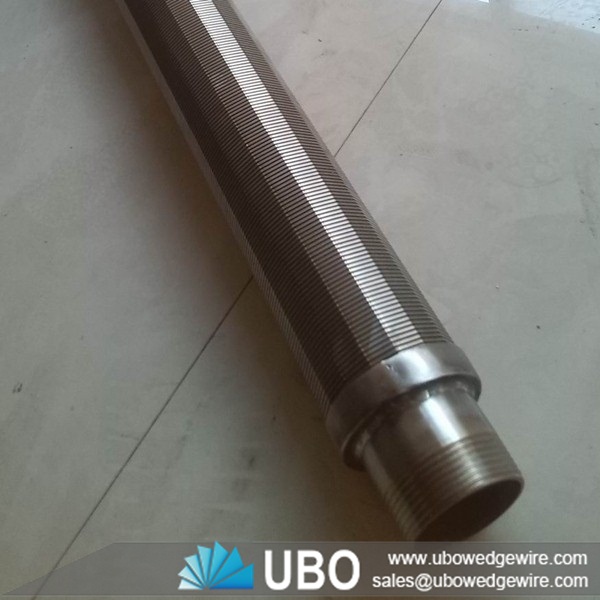

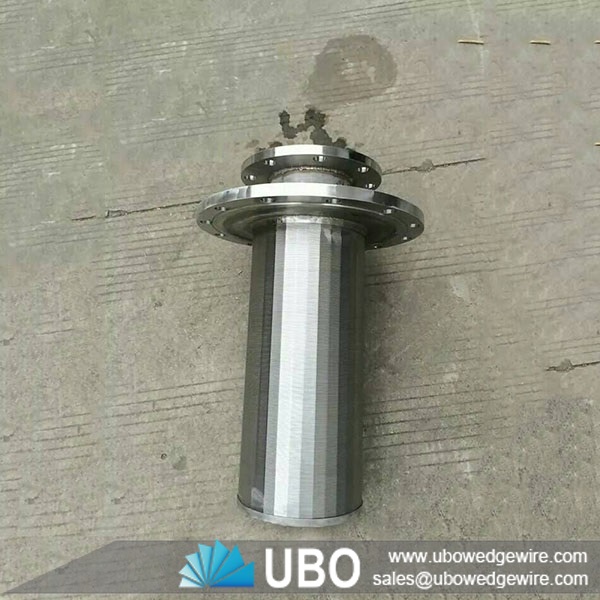

Wedge Wire stainless steel resin trap wedge Wedge Wire screen tube
Category: | Resin Traps |
---|---|
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | resin trap |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire stainless steel resin trap wedge Wedge Wire screen tube
Wedge Wire stainless steel resin trap wedge Wedge Wire screen tubes are placed in a housing, inline with the flow to capture expensive media from traveling downstream. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly thus minimizing pressure loss through the system.
Your resin trap can be designed to suit either new or existing strainer bodies.
Application of Wedge Wire stainless steel resin trap wedge Wedge Wire screen tube
Resin traps are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.
Characteristics of Wedge Wire stainless steel resin trap wedge Wedge Wire screen tube
High mechanical strength
High wear resistance
High impact resistance
Larger open area
Self-supporting structure
Non-plugging slot design
Lower operation and maintenance cost
Specifications of Wedge Wire stainless steel resin trap wedge Wedge Wire screen tube:
|
||||||
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
|||||
OD Range |
25mm-2000mm |
|||||
ID Range |
19mm-1981mm |
|||||
Length Range |
Up to 6000 mm |
|||||
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
|||||
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5*2 |
2x3 |
2*4 |
Support Rod |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.8*2.5
2x3 |
3*5 |
3*5 |
Connection |
Flange and thread |
|||||
End Type |
Closed plate |
|||||
Note |
Customized According To Special Requirement |
