Quality Wedge Wire Screen Manufacturer in China

Wedge Wire Sieve Bends for Screening and Dewatering

More Views

Wedge Wire Sieve Bends for Screening and DewateringWedge Wire Sieve Bends for Screening and DewateringWedge Wire Sieve Bends for Screening and Dewatering

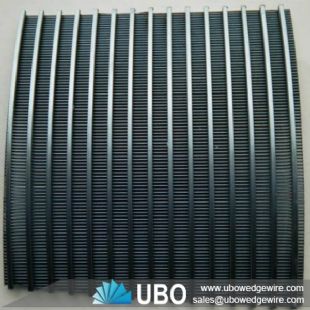

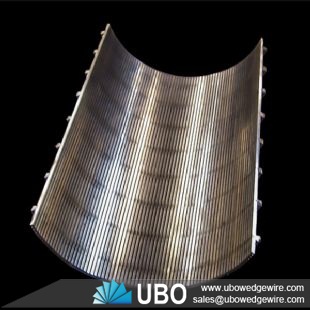

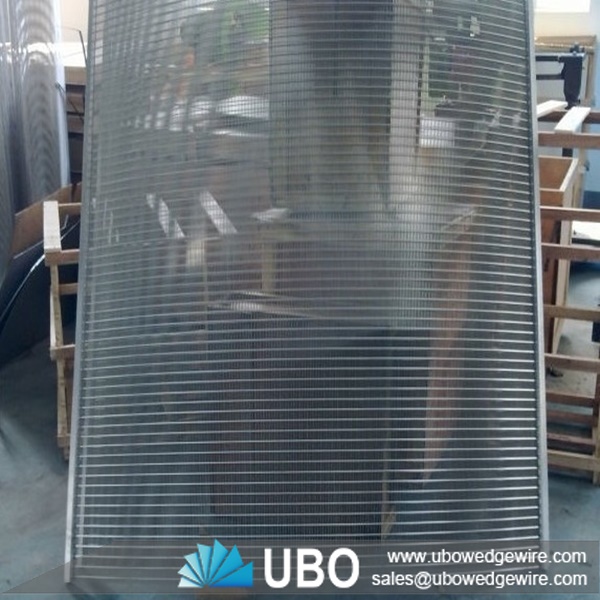

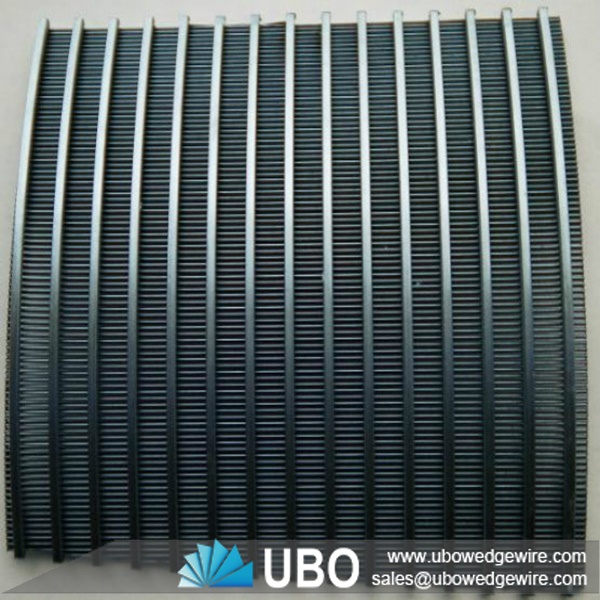

Wedge Wire Sieve Bends for Screening and Dewatering

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Sieve Bends for Screening and Dewatering

Wedge wire sieve bends are made of stainless steel wedge wires. They are consist of a concave curved profile wire screen, which are inserted into a stainless steel frame. The wedge wire sieve bends are manufactured by wrapping and welding stainless steel V-shaped profile wire and support rods. Then the panel screens are cutting and curved into arc screen.

The wedge wire sieve bends have continuous slots, which has efficient filtering performance. Forces exerted as materials flows against the curved surface, curved screen structure has better filtering and greater capacity than the wedge wire screen panel.

Features of Wedge Wire Sieve Bends for Screening Sizing Dewatering

Wedge wire sieve bends for beer breweries is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine, then be made to screen panel through cutting and edge welding. Each profile wire and support rod is welded by resistance welding.

Applications of Wedge Wire Sieve Bends for Screening Sizing Dewatering

The wedge wire sieve bends are mainly used for dewatering, sizing and waste water cleanup applications. They can be used in various fields, such as:
Sewage treatment.
Laundry wash water cleanup.
Poultry, fish, fruit and vegetable waste water processing.
Minerals processing.
Paper production.
Textile plants.

Wedge Wire Sieve Bends for Screening Sizing and Dewatering

Specifications of Wedge Wire Sieve Bends for Screening and Dewatering:

Wedge Wire Sieve Bends

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot Size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

15º,30º,45º,60º

End Connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire Sieve Bends for Screening and Dewatering:

transportation
