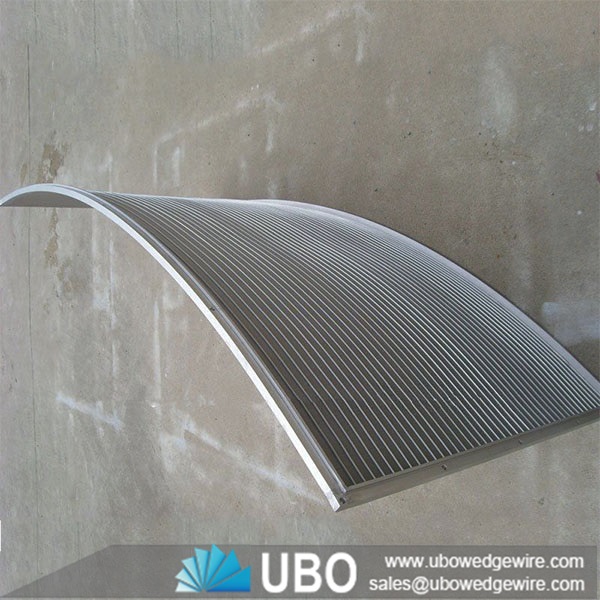

Wedge Wire Sieve Bend Screen For Water and Effluent Treatment

More Views

Wedge Wire Sieve Bend Screen For Water and Effluent TreatmentWedge Wire Sieve Bend Screen For Water and Effluent TreatmentWedge Wire Sieve Bend Screen For Water and Effluent Treatment

Wedge Wire Sieve Bend Screen For Water and Effluent Treatment

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:sieve bend screen
Application:Wedge wire screen is widely used in mining, coal, petroleum, fertilizer, grain, salt industry, environment protection, etc. Sieving liquid, powder and

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Sieve Bend Screen For Water and Effluent Treatment

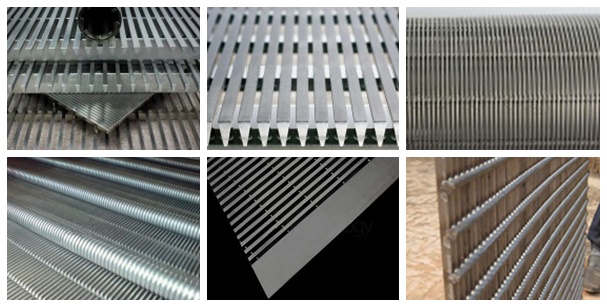

Wedge wire screen or profile screen is in flat, curved or cylindrical panels made of coiled, round and/or wedge shaped woven wires for precise openings. It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment. Wedge wire screen is made with certain size of woven wire cloth as screen fabrics, then framed with stainless steel or coated carbon steel plates. offering great strength. precision ,long service life.

Application for Wedge Wire Sieve Bend Screen For Water and Effluent Treatment:

mining, coal separation, drilling, fertilizer, food, environmental protection, metallurgy, medicine and other industries

Features for Wedge Wire Sieve Bend Screen For Water and Effluent Treatment:

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation

Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.

3) Reduce the abrasion of the pump

Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.

4) Extend the life span of wells

Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells

Advantages for Wedge Wire Sieve Bend Screen For Water and Effluent Treatment:

Johnson screen has a continuous slot opening which significantly increases the available open area , thus providing greater access to the water bearing zone(the aquifer)

Wedge Wire Sieve Bend Screen For Water and Effluent Treatment

Specifications of Wedge Wire Sieve Bend Screen For Water and Effluent Treatment:

Wedge Wire Sieve Bend Screen For Water and Effluent Treatment

Outside Diameter
Profile
wire
Rod
wire
Rod
quantity
Slot
size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25
45~3000
25
1
33.7
1.5*2
2*3
14
0.1~0.25
45~3000
32
1~1/4
42.4
1.5*2
2*3
16
0.1~0.25
45~3000
40
1~1/2
48.3
1.5*2
2*3
16
0.1~0.25
45~3000
50
2
60.3
1.5*2
2*3
18
0.1~0.5
45~3000
65
2~2/2
76.1
1.5*2
2*3
20
0.1~0.5
45~3000
80
3
88.9
1.8*2.5
2*3
24
0.1~0.5
45~3000
100
4
114.3
1.8*2.5
2*3
30
0.5~2
1000~6000
125
5
139.7
2.3*2.7
2*3
36
0.5~2
1000~6000
150
6
168.3
2.3*2.7
3*5
44
0.5~2
1000~6000
200
8
219.1
3.3*4.5
3*4.7
56
0.5~2
1000~6000
250
10
273
3.3*4.5
4*6
66
0.5~2
1000~6000
300
12
323.9
3.3*4.7
4*6
72
0.5~2
1000~6000
350
14
355.6
3.7*5
4*6
80
0.5~2
1000~6000
400
16
406.4
1.5*2
2*3
94
0.1~2
1000~6000
450
18
457
2*3
4*5
112
0.1~2
500~400
500
20
508
2*3
4*5
124
0.1~2
500~400
550
22
559
2*3
4*5
140
0.1~2
500~400
600
24
610
2*3
4*5
156
0.1~2
500~400
Siot:0.1mm~2mm    Tolerance:0.05

Packaging and Transportation of Wedge Wire Sieve Bend Screen For Water and Effluent Treatment:

Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearlymarked with:
Name & identification mark of manufacturer
Batch number
Date of manufacture
Material
Safe heating & application temperature
