Wedge Wire Screen V Wire Panel for Fish Diversion
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Wedge Wire Screen Panel |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire Screen V Wire Panel for Fish Diversion

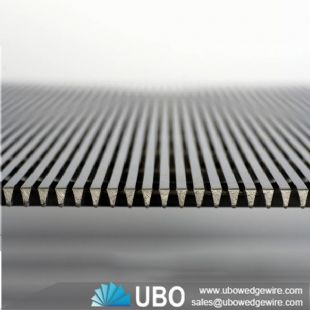

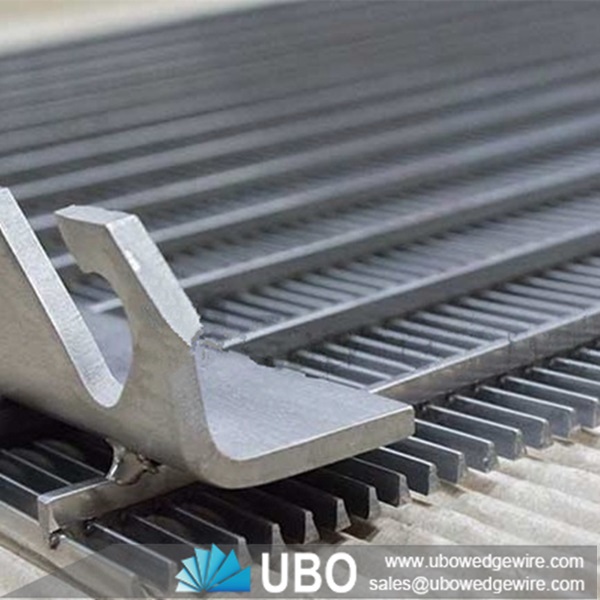

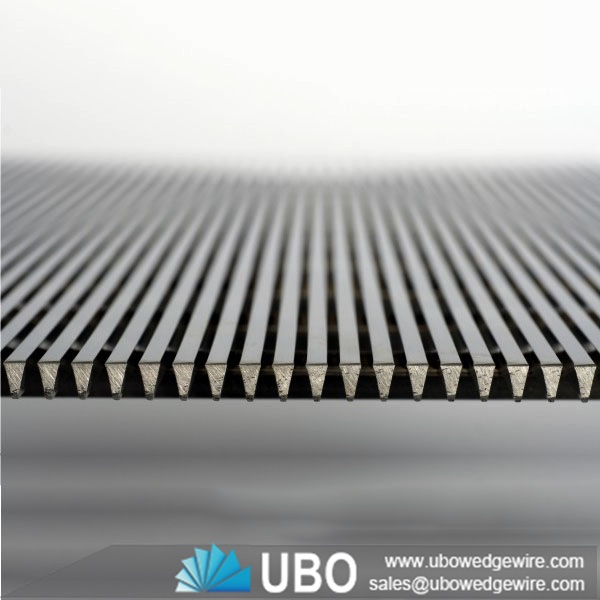

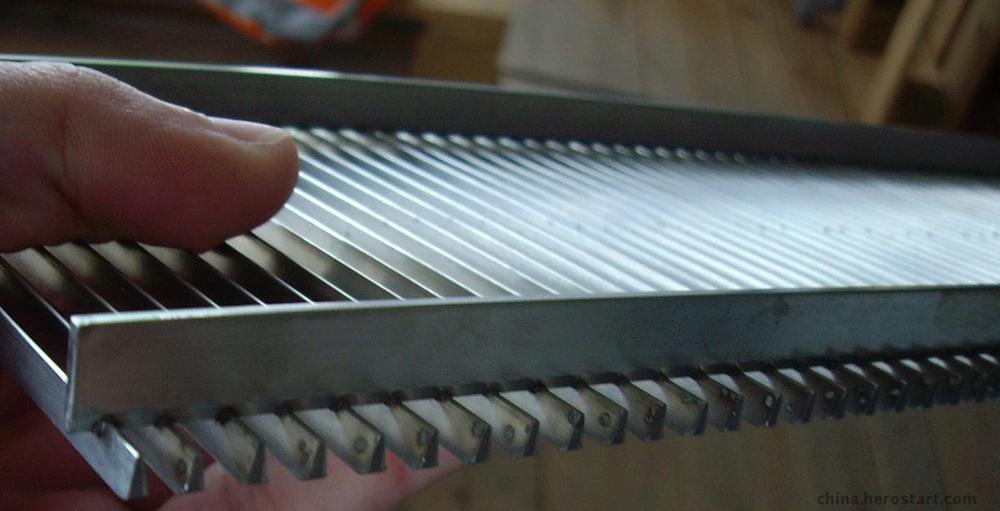

Wedge Wire screen v wire panels are welded steel structure, used for filtration, separation and retention media.

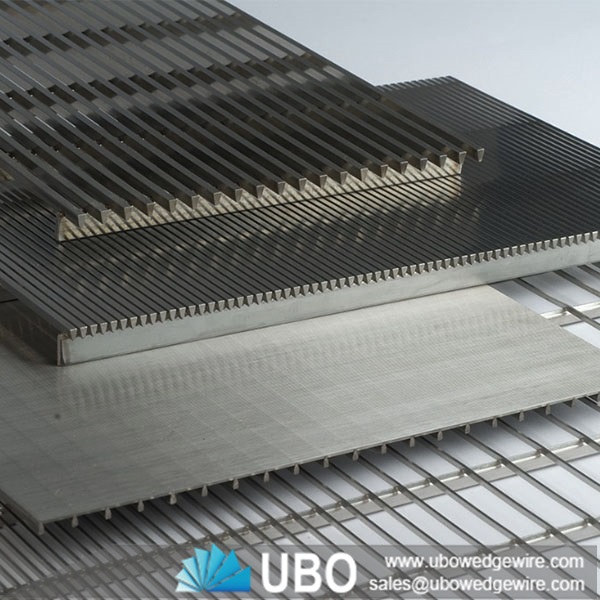

It is available in a wide variety of shapes and sizes. From two basic forms, slot tubes and flat screens, almost all shapes and sizes can be developed to fit customers´ requirements.
Applications for Wedge Wire screen v wire panel for fish diversion:
Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.
Advantages for Wedge Wire screen v wire panel for fish diversion:

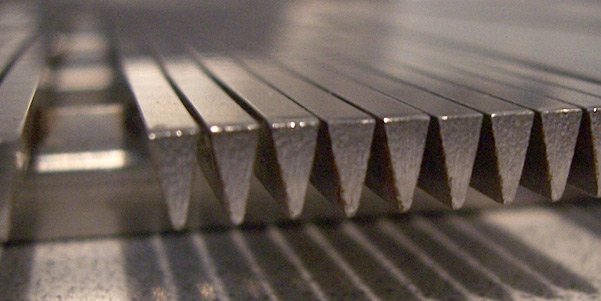

Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.
High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.
Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.
Low pressure-drop.

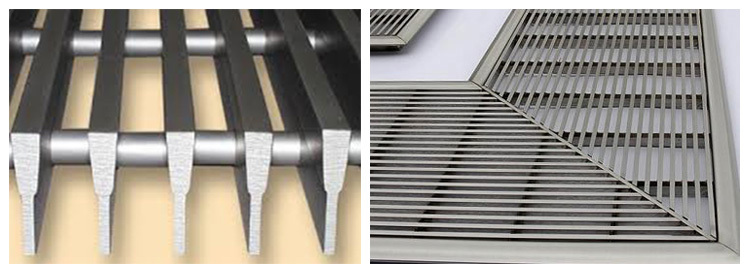

Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.
High efficiency: continuous slot opening.
Large flow rate: V shaped profile wire ensures a uninterrupted flow.
Specifications of Wedge Wire Screen V Wire Panel for Fish Diversion:
Surface Profile |
W
|
H
|
Material |
10S |
0.75
|
1.425
|
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL |
10.75
|
1.8
|
|
22S |
1.8
|
3.7
|
|
4S |
0.45
|
1.2
|
|
50SL |
3.4
|
7.5
|
Surface Profile
|
W
|
H
|
Material
|
Q22
|
2
|
2.28
|
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35
|
3
|
5
|
|
Q53
|
4
|
3
|
|
D56
|
4
|
5.6
|
|
D45
|
3.8
|
6.0
|
