Stainless Steel AISI 304 Wire Wrap V Shaped Pipe Base Screen

More Views

Stainless Steel AISI 304 Wire Wrap V Shaped Pipe Base ScreenStainless Steel AISI 304 Wire Wrap V Shaped Pipe Base ScreenStainless Steel AISI 304 Wire Wrap V Shaped Pipe Base Screen

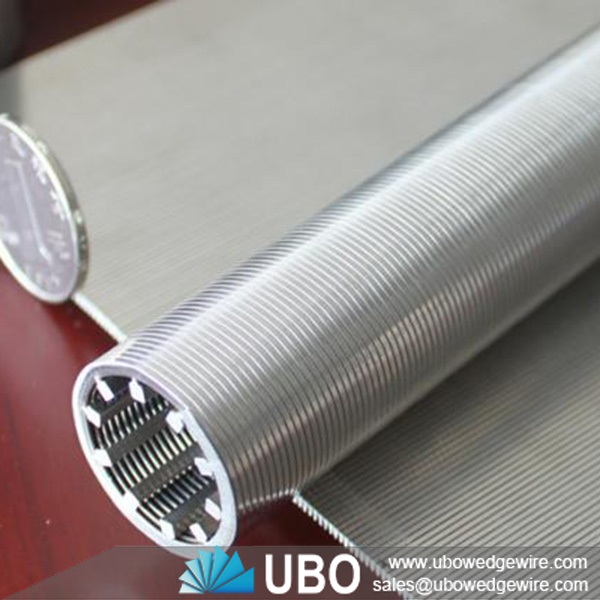

Stainless Steel AISI 304 Wire Wrap V Shaped Pipe Base Screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel AISI 304 Wire Wrap V Shaped Pipe Base Screen

Wedge wire screen tube, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

As we all know, the wedge wire screen tube is composed of surface profiles and support profiles. The wire type of surface profile is commonly triangular wire, which is also called V-shaped wire. The support wire can be triangular wire, round wire and trapezoid wire.

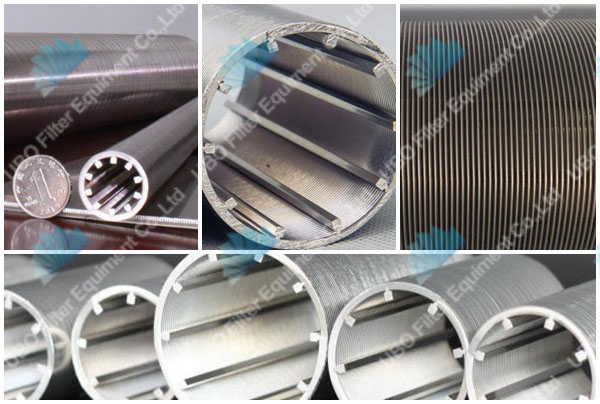

Stainless Steel AISI 304 Wire Wrap V Shaped Pipe Base Screen

Applications for Stainless Steel AISI 304 Wire Wrap V Shaped Pipe Base Screen:

This wedge wire screen pipe is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chem ical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.

Advantages for Stainless Steel AISI 304 Wire Wrap V Shaped Pipe Base Screen:

• High mechani cal strength to withstand greater pressure difference.

• The homogeneous filtration gap forms a relatively homogeneous cake to facilitate backwash regeneration.

• Wedged gap can improve backwash regeneration capacity.

• Pressure, temperature, aging and corrosion—resistant, suitable for all kinds of fluids.

• Metal wedged wire mesh is adopted as filter element and has the advantages, such as, high mechanical strength, high g reater pressure difference, easy cleaning, and regeneration. Al most two—dimensional filter mesh have no par— ticle packing dead space, the wedged gap can gather energy when backwashing, with good resuIt.

Features for Stainless Steel AISI 304 Wire Wrap V Shaped Pipe Base Screen:

-- Accurate filtering performance.

-- High efficiency.

-- Narrow slot openings.

-- Normal or high grade type for choice.

-- Various edge types.

-- Wide range of diameters for choice.

-- Special sizes can be customized.

-- Economical but high grade.

-- Corrosion resistance.

-- Rust resistance.

-- Long service life and durable

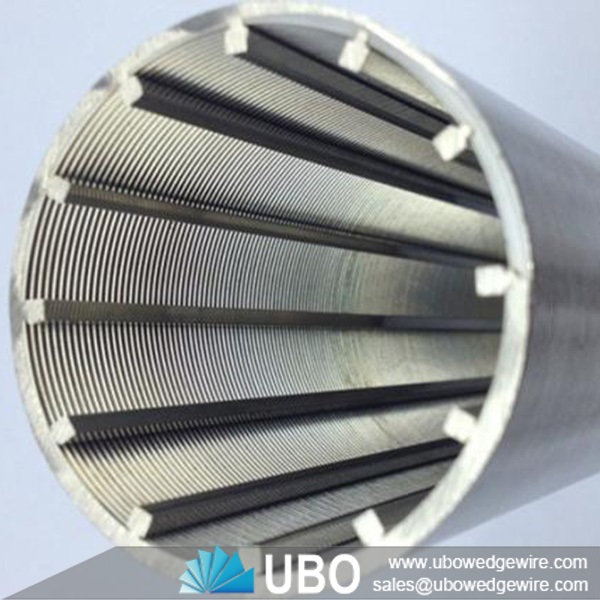

Stainless Steel AISI 304 Wire Wrap V Shaped Pipe Base Screen

Specifications of Stainless Steel AISI 304 Wire Wrap V Shaped Pipe Base Screen:

Stainless Steel AISI 304 Wire Wrap V Shaped Pipe Base Screen

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
