SS304 Wedge Wire type wedge wire Fish Diversion Screens
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Sieve Bend Screen |
Application: | waste water filtration, pulp and paper as well as mineral processing applications |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

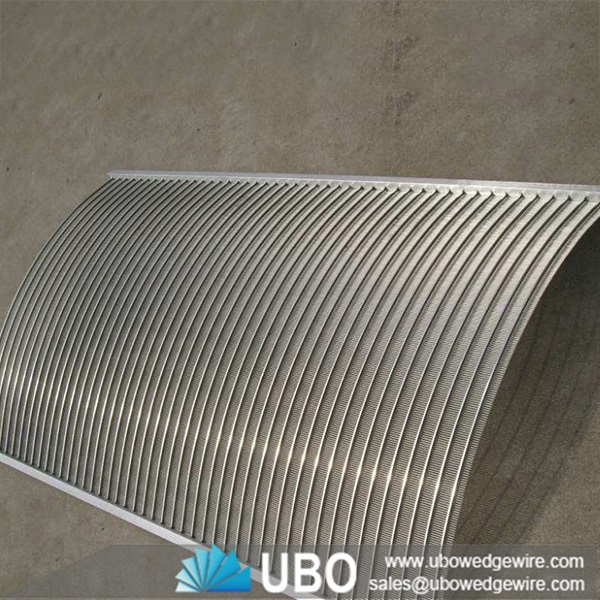

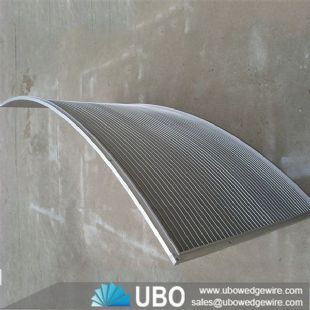

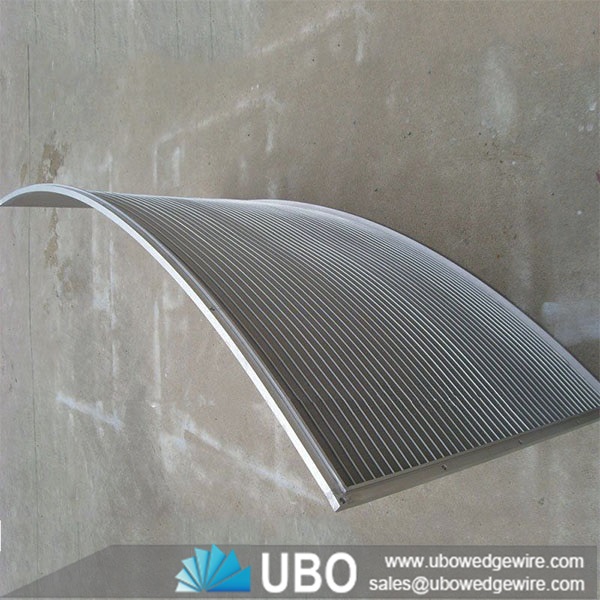

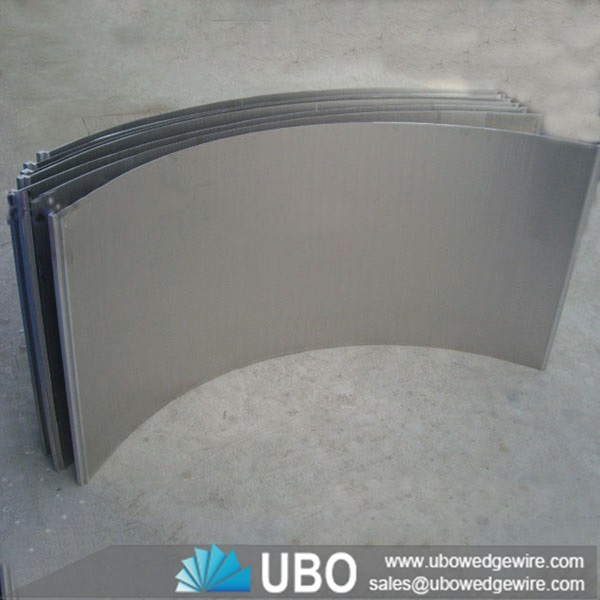

Details of SS304 Wedge Wire type wedge wire Fish Diversion Screens

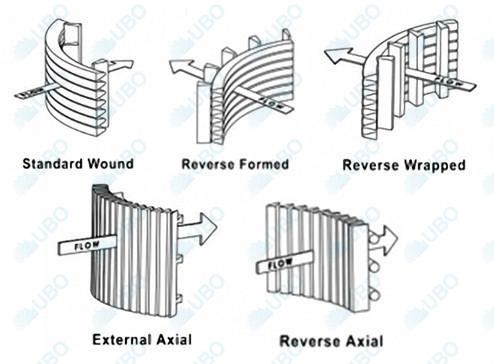

Wedge wire screen panels are made using only the highest quality standard stainless steel materials. The screen's surface structure is welded at 90 degrees angle with the support profiles which widen inwardly.
Our company can custom make any Wedge Wire Screen Panel to fit any customer's specified width and length requirements. The quality of workmanship that comes with constructing the panels, superior materials used and high precision slots ensure that our panels will meet even the most demanding applications in the industry.
Applications for SS304 Wedge Wire Type Wedge Wire Fish Diversion Screens:
-- Fish Diversion Screen Panels
-- Flooring for malt kiln, germination and grain drying
-- Food Processing
-- Hatchery Screens
-- Mineral Processing
-- Surface water intake screens
-- Vibrating or Static intake screens
Advantages for SS304 Wedge Wire Type Wedge Wire Fish Diversion Screens:
1) Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.
2) Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.
3) Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.
4) Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)
5) Long live: Welded at each intersection creating a strong and durable screen.
6) Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.
7) Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.
Specifications of SS304 Wedge Wire type wedge wire Fish Diversion Screens:
Surface Profile |
W
|
H
|
Material |
10S |
0.75
|
1.425
|
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL |
10.75
|
1.8
|
|
22S |
1.8
|
3.7
|
|
4S |
0.45
|
1.2
|
|
50SL |
3.4
|
7.5
|
Surface Profile
|
W
|
H
|
Material
|
Q22
|
2
|
2.28
|
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35
|
3
|
5
|
|
Q53
|
4
|
3
|
|
D56
|
4
|
5.6
|
|
D45
|
3.8
|
6.0
|
