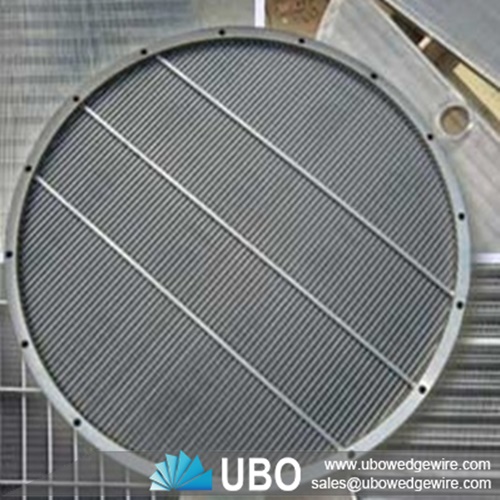

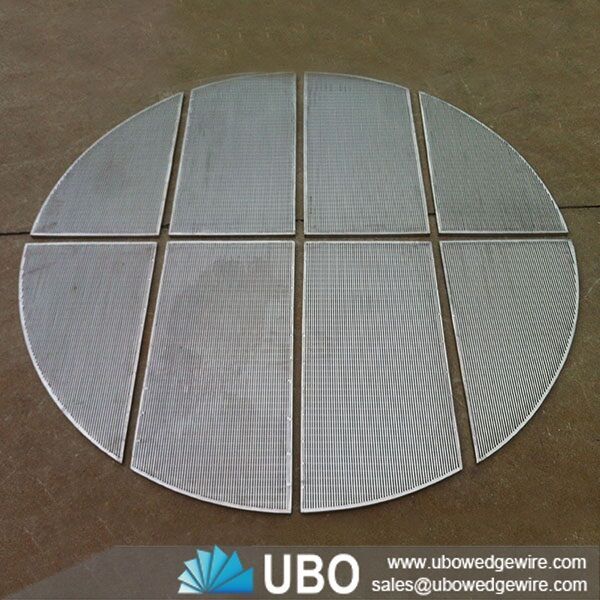

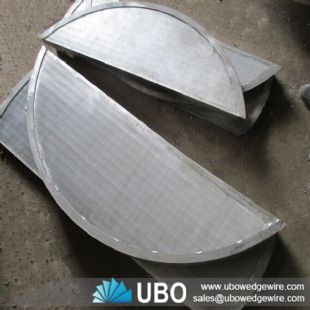

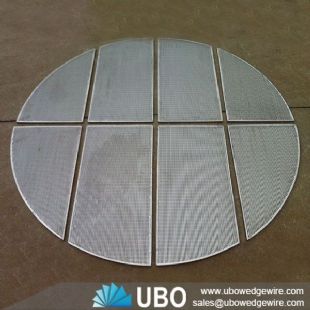

Wedge Wire Screen Support Grid for Filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Support Grid for Filtration

Wedge wire screen support grid is made of all stainless steel materials or nickel alloy materials, including the wedge wire screen, frames and other accessories. The high quality material make the wedge wire screen support grid corrosion and rust resistance and long service life. Compared with woven wire mesh or perforated metal, wedge wire has continuous slots, which have higher open area and precise openings. It can supply more precise filtering performance, higher strength and more durable life.

Applications of Wedge Wire Screen Support Grid for Filtration

The wedge wire screen support grids are very important to provide uniform flow collection The support grid can be used in the carbon filters, desulfurizers, molecular sieves, gas sweeteners and lauter tuns.

Characteristic of Wedge Wire Screen Support Grid for Filtration

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

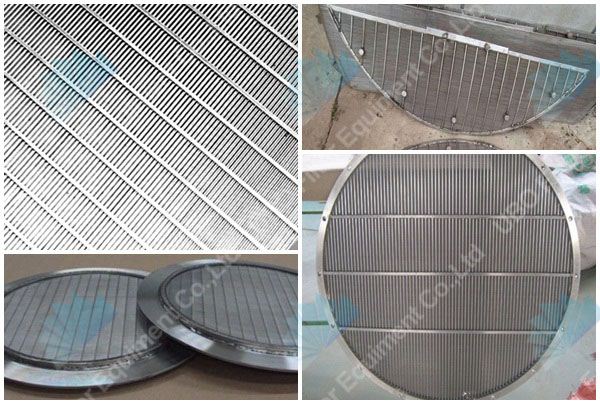

Wedge Wire Screen Support Grid for Filtration

Specifications of Wedge Wire Screen Support Grid for Filtration:

Wedge Wire Screen Support Grid for Filtration

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
