Wedge Wire Screen Support Grid for Digesters
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | wedge wire screen |
Application: | water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire Screen Support Grid for Digesters

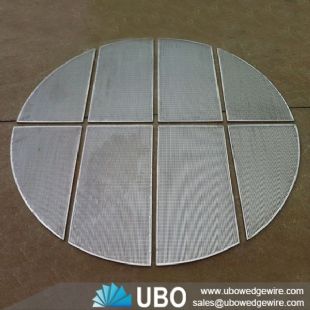

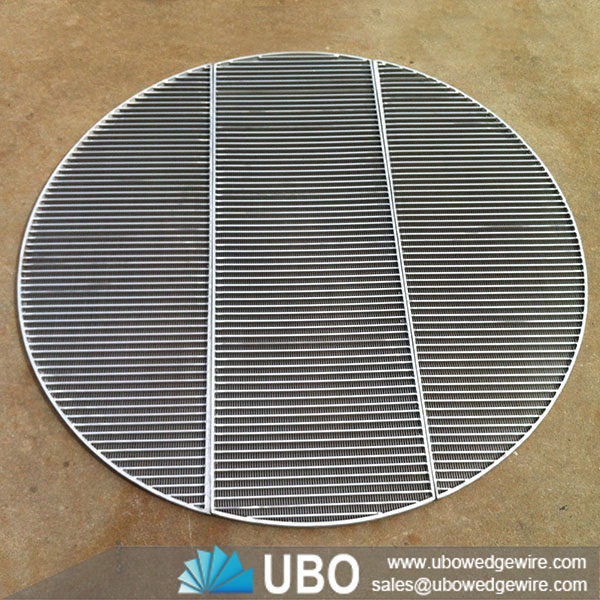

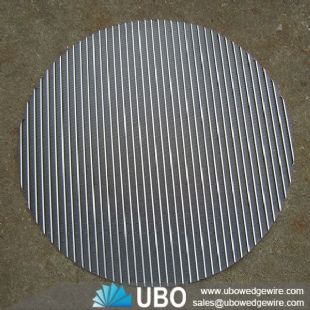

The support grid is a flat screen panel that provides uniform flow collection which is essential in many applications. This is particularly important when screens are used to reserve expensive ion exchange resins. Support grids provide superior media retention characteristics in vessels of all types. They feature durable construction, precise open area, and are virtually non-clogging. For larger vessel diameters SanQiang screen support grids are fabricated in segments to allow installation through a vessel man-way.
Applications for Wedge Wire Screen Support Grid for Digesters
Molecular sieve; Catalyst bed support; Ion exchange; Sand filters; False bottoms
Installation for Wedge Wire Screen Support Grid for Digesters

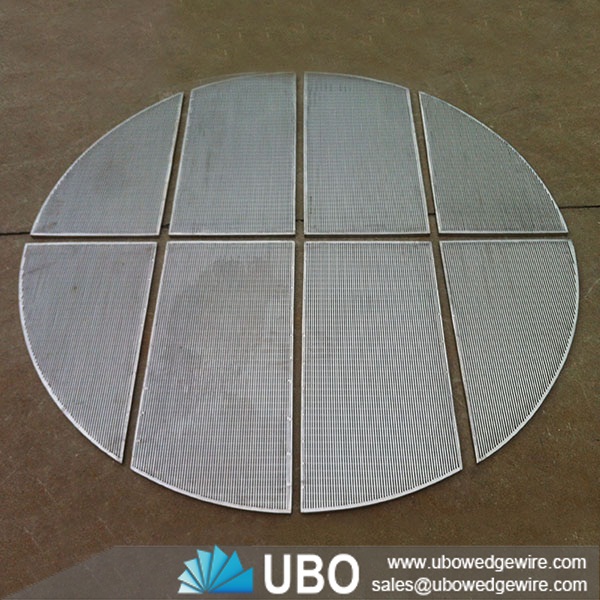

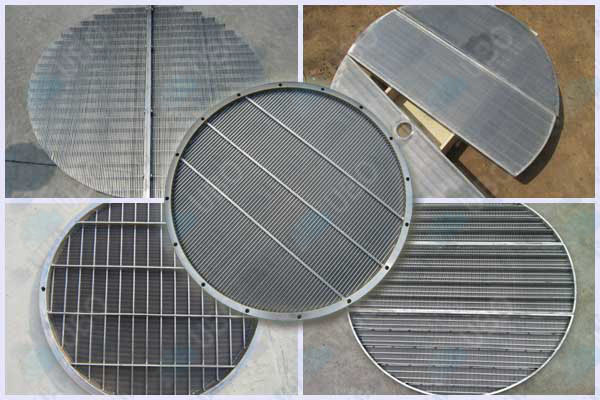

A support grid could be made out of parallel or pie shaped segments, each segment just resting on the beams or bolted to or welded to the next one. The joining bars could be flush or project above the screening surface. Support structure can be included for additional strength.
The support grids can be attached to the supporting structure by bolts fixed to the grid or part of the vessel itself.
Specifications of Wedge Wire Screen Support Grid for Digesters:
Surface Profile |
W
|
H
|
Material |
10S |
0.75
|
1.425
|
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL |
10.75
|
1.8
|
|
22S |
1.8
|
3.7
|
|
4S |
0.45
|
1.2
|
|
50SL |
3.4
|
7.5
|
Surface Profile
|
W
|
H
|
Material
|
Q22
|
2
|
2.28
|
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35
|
3
|
5
|
|
Q53
|
4
|
3
|
|
D56
|
4
|
5.6
|
|
D45
|
3.8
|
6.0
|
Packaging and Transportation of Wedge Wire Screen Support Grid for Digesters:
