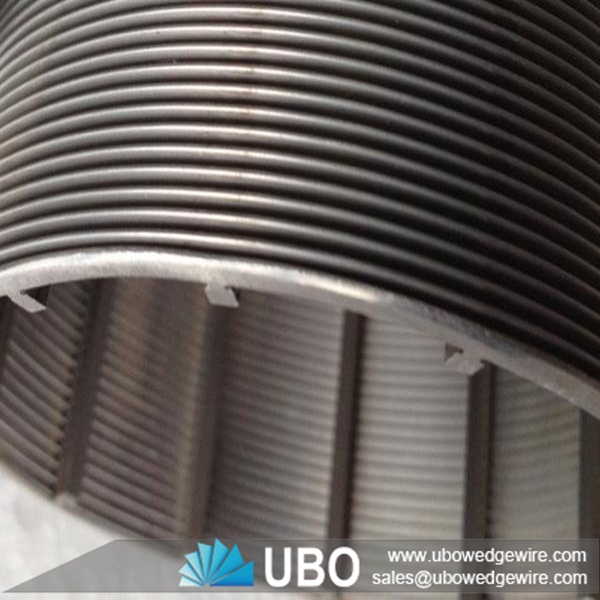

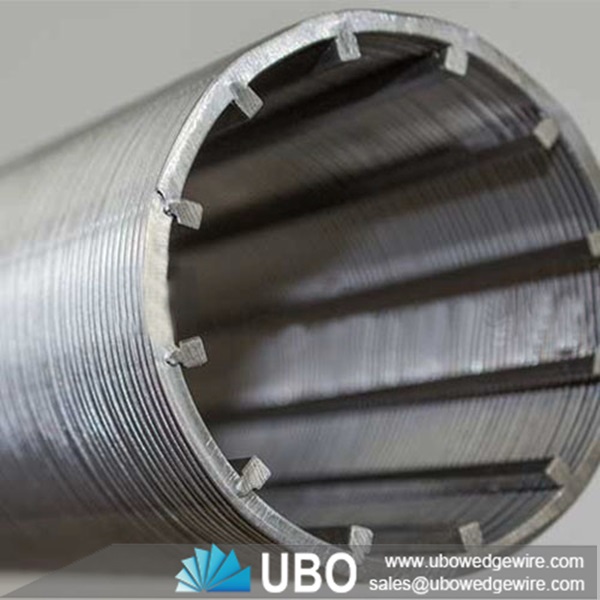

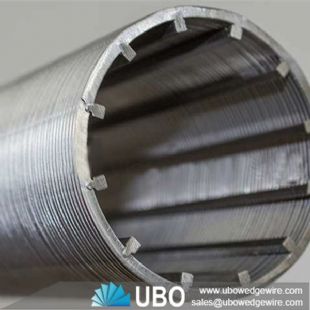

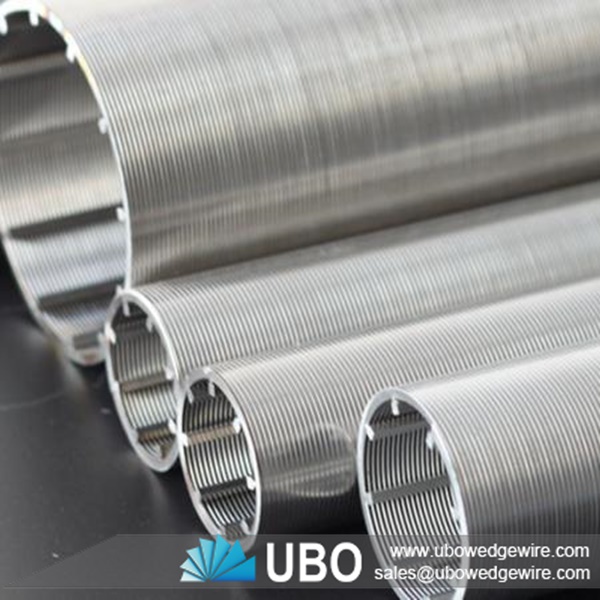

Wedge Wire Screen Strainer Tube for Filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Strainer Tube for Filtration

These screens tubes are known in variety of names like: Water well screens, wedge wire well screens, V wire screens, continuous slot well screens, wire wrapped screens, Screen Cylinders, wedge slot tubes, wire wrap screen, etc.

UBO offer these screens tubes in one single piece construction. One of the important features of wedge wire screen for filtering and separation is the continuous aperture or "slot", which automatically provides a large open area and low tendency to blind or clog. The continuous aperture and triangular wire section ensures there are only two particle contact points, which minimizes the risk of blinding and clogging.

Features of Wedge Wire Screen Strainer Tube for Filtration

-- Self Supporting;

-- High Abrasion resistance;

-- Low pressure drop;

-- High resistance to Vibration.

Application of Wedge Wire Screen Strainer Tube for Filtration

The screen tube is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

wedge wire strainer screen tube for filtration

Specifications of Wedge Wire Screen Strainer Tube for Filtration:


SIZE
(INCH)
O.D
(MM)
SLOT
(INCH)
LENGTH
(M)
COLLAPSE
STRENGTH
(PSI)
TENSILE
WEIGHT
(TON)
WRAP(thick*deep)
(MM)
RODS
(MM)
4 117 0.040 3 395 6 2.2*3.0 3.8MM/22
4 114.3 0.040 3 395 6 2.3*3.0 3.8MM/22
6 168.3 0.040 3 252 8 2.3*3.5 3.8MM/32
8 219.1 0.010 3 399 10.5 3.0*5.0 3.8MM/48
8 219.1 0.020 3 370 10.5 3.0*5.0 3.8MM/48
8 219.1 0.040 3 323 10.5 3.0*5.0 3.8MM/48
10 273.1 0.010 3 206 11 3.0*5.0 3.8MM/50
10 273.1 0.020 3 191 11 3.0*5.0 3.8MM/50
10 273.1 0.040 3 167 11 3.0*5.0 3.8MM/50

Packaging and Transportation of Wedge Wire Screen Strainer Tube for Filtration:

Package: in wood case

Delivery Time: 5-25 days
