Wedge Wire Screen Resin Trap for Filtration

Wedge Wire screen resin trap used in water treatment processes namely in "Ion Exchange" and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

The Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.
In the event that there is resin/media build up with the Resin Trap Screen assembly, an increase in the pressure drop will result and if one is installed, the resin/media will be visible through the “sight glass”.

Materials: stainless steel 304,316L

Application: water treatment, resin traps, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Surface treatment: polishing, chroming.

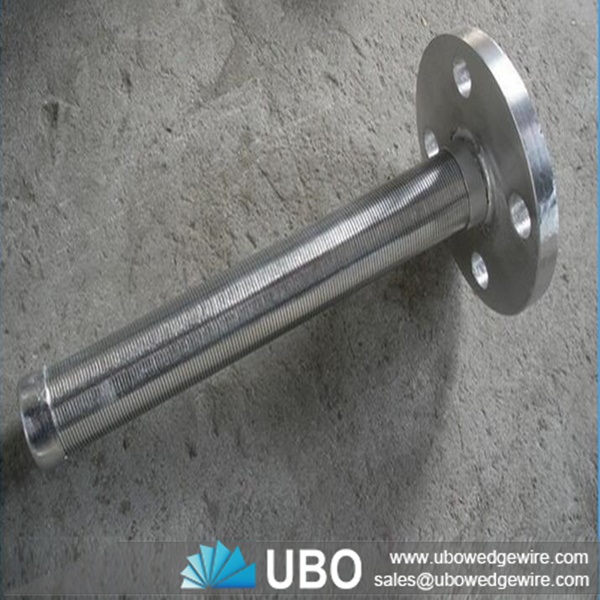

Product structure: candle filter screen

Wire diameter: 1.5x2mm, 2x3mm, etc.

Length: 0.5meters or as per your request.

Diameter: 80mm or as per your request.

Slot size: 1mm also achieved upon request.

Connection:flange or thread

Characteristics: High filtering accuracy, High strength and durability.
