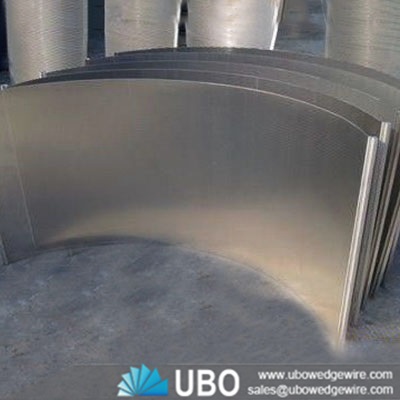

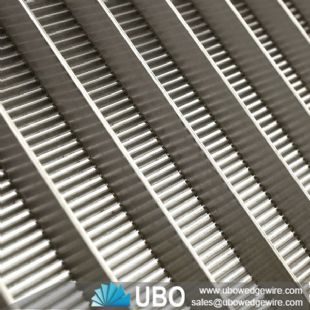

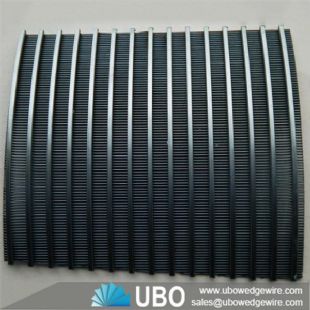

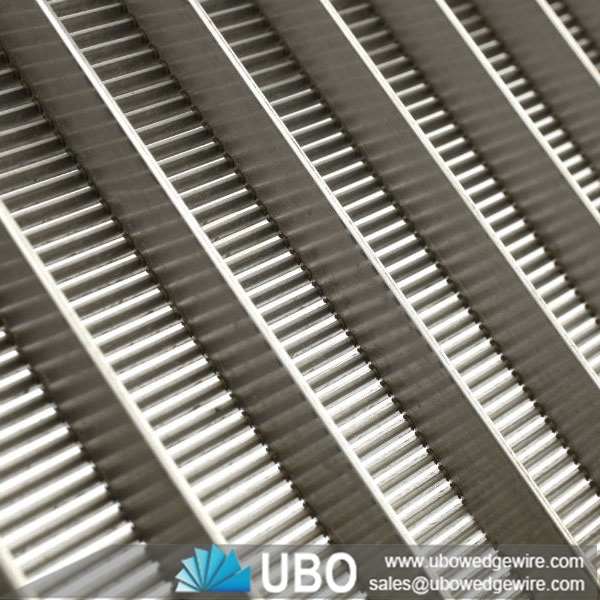

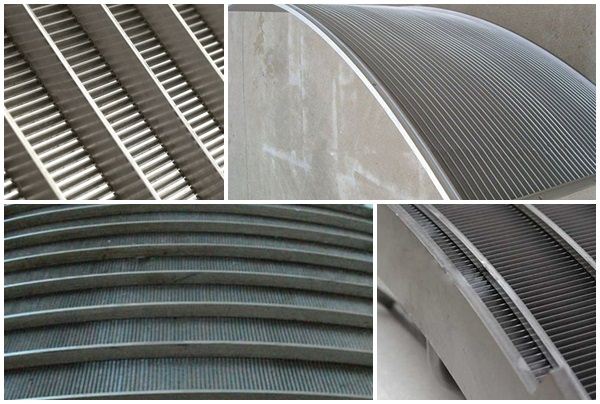

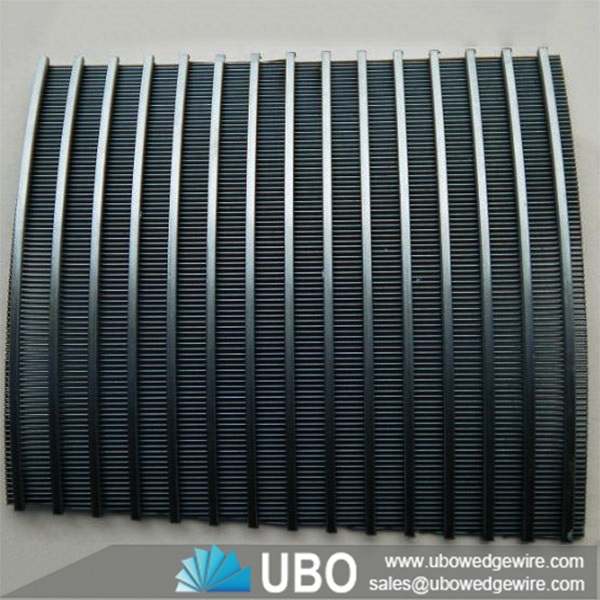

Wedge Wire Screen Panel for Mining Industry
| Category: | Wedge Wire Application |
|---|---|
| Material: | SS 304,316,316L, Stainless steel and carbon steel. |
| Properties: | Wedge wire screen |
| Application: | Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire Screen Panel for Mining Industry
Sieve Bend Screens also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.
Features for Wedge Wire Screen Panel for Mining Industry:
Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.
Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.
Wedge Wire
Applications for Wedge Wire Screen Panel for Mining Industry:
They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load. Widely used for fiber removal in Starch industry.
Specifications of Wedge Wire Screen Panel for Mining Industry:
|
Profile Wire
|
|
|
|
|
|
|
|
|
|
Width(mm)
|
1.5
|
1.5
|
2.3
|
2.3
|
1.8
|
3.0
|
3.7
|
3.3
|
|
Height(mm)
|
2.2
|
2.5
|
2.7
|
3.6
|
4.3
|
4.7
|
5.6
|
6.3
|
|
Support Rod
|
|
|
|
|
|
Round
|
|
Width(mm)
|
2.3
|
2.3
|
3.0
|
3.7
|
3.3
|
Ø2.5~Ø5mm
|
|
Height(mm)
|
2.7
|
3.6
|
4.7
|
5.6
|
6.3
|
|
|
Model
|
Diameter (mm)
|
Angle (°)
|
slot (mm)
|
|
WZ-1200
|
1300
|
20
|
0.3,0.4,0.5
|
|
H-900
|
900
|
15
|
0.3,0.4,0.5
|
|
H-1000
|
1000
|
15
|
0.3,0.4,0.5
|
|
HSG-1100
|
1100
|
13
|
0.35,0.4
|
|
HSG-1200
|
1200
|
13
|
0.35,0.4,0.5
|
|
HSG-1300
|
1300
|
13
|
0.35,0.4,0.5
|
|
HSG-1500
|
1500
|
13
|
0.45,0.5
|
Packaging and Transportation of Wedge Wire Screen Panel for Mining Industry:
