Wedge Wire Profile Wire Wrapped Pipe Screen For Water Treatment

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Profile Wire Wrapped Pipe Screen For Water Treatment

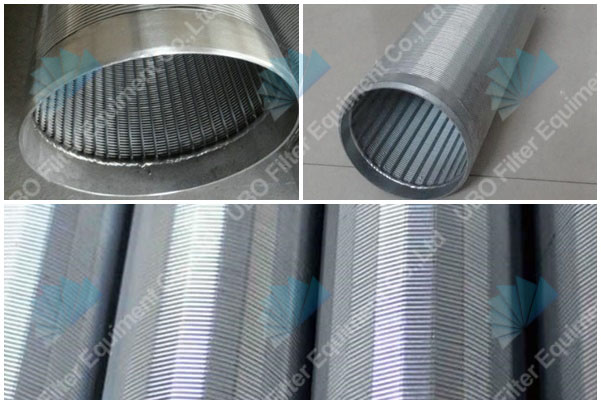

Wedge Wire Profile Wire Wrapped Pipe Screen For Water Treatment is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding,easily fit for various of water screening in lakes, rivers and other natural bodies of water in water and wastewater treatment.

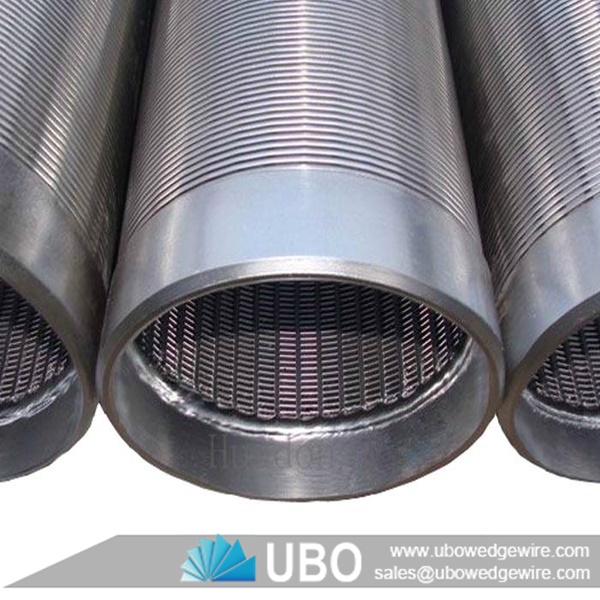

Wedge Wire Profile Wire Wrapped Pipe Screen For Water Treatment

Advantages of Wedge Wire Profile Wire Wrapped Pipe Screen for Water Treatment

-- Good strength;

-- Good resistance to abrasion and corrosion;

-- High rigidity;

-- Good in filtration and fluidity;

-- Flat panel surface;

-- Long work time.

-- Easy to clean and back wash;

-- Uniform gap;

Application of Wedge Wire Profile Wire Wrapped Pipe Screen for Water Treatment

Wedge wire filters are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Wedge wire filters are the most popular mining screen due to its strength.

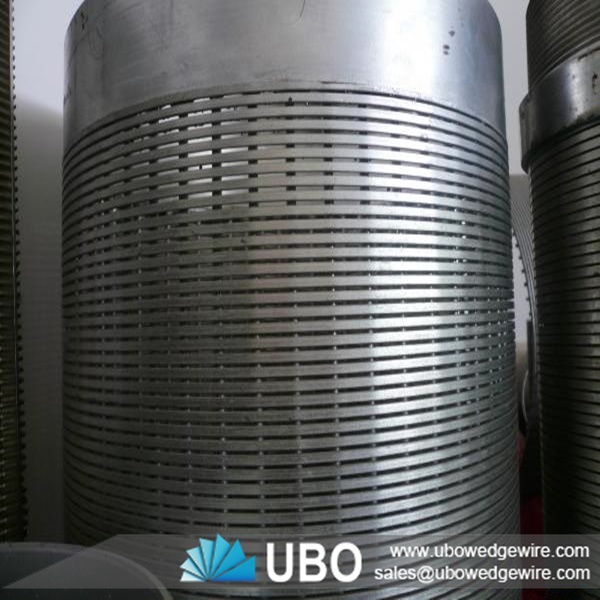

Wedge Wire Profile Wire Wrapped Pipe Screen For Water Treatment

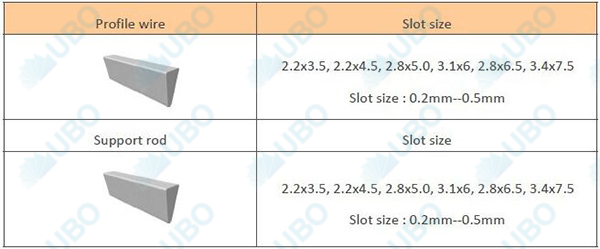

Specifications of Wedge Wire Profile Wire Wrapped Pipe Screen For Water Treatment:

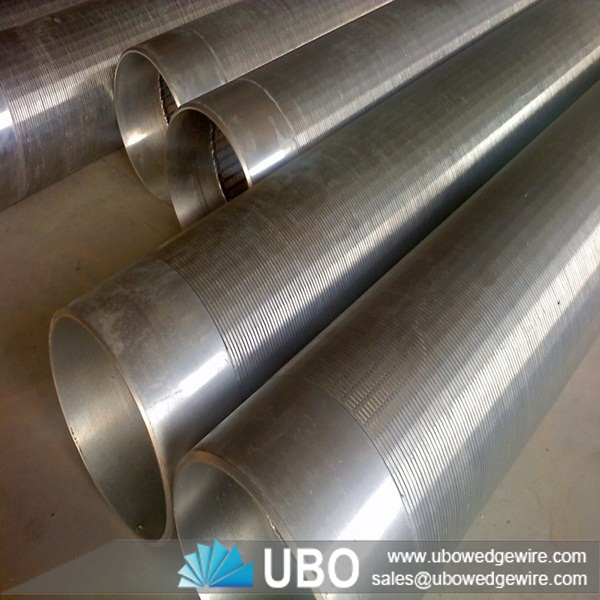

Wedge Wire Profile Wire Wrapped Pipe Screen For Water Treatment


Wedge Wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Slot Size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length up to 6m
Diameter from 25mm to 1200mm.
End Connection

Plain beveled ends, flanged or threaded couplings
