Wedge Wire Passive Screen for Filtration

More Views

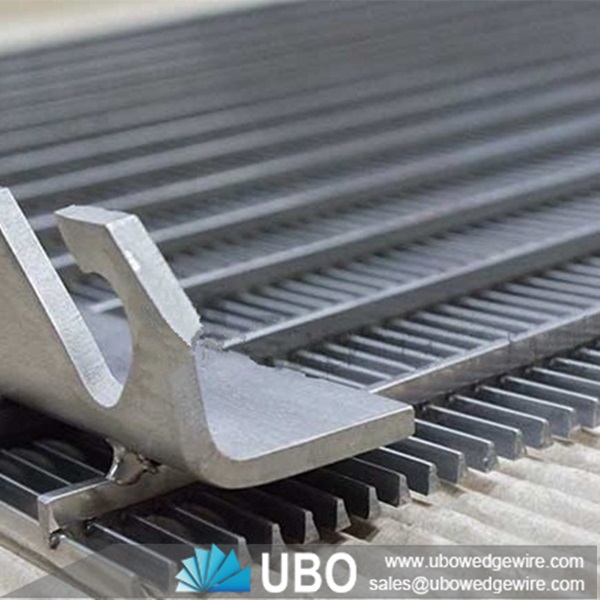

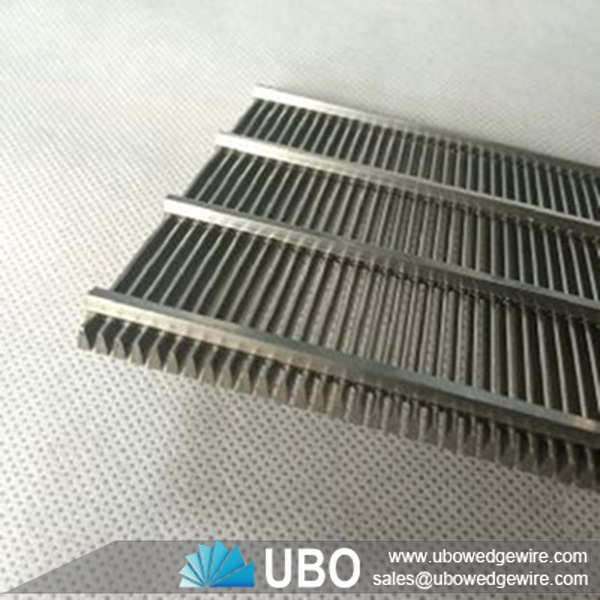

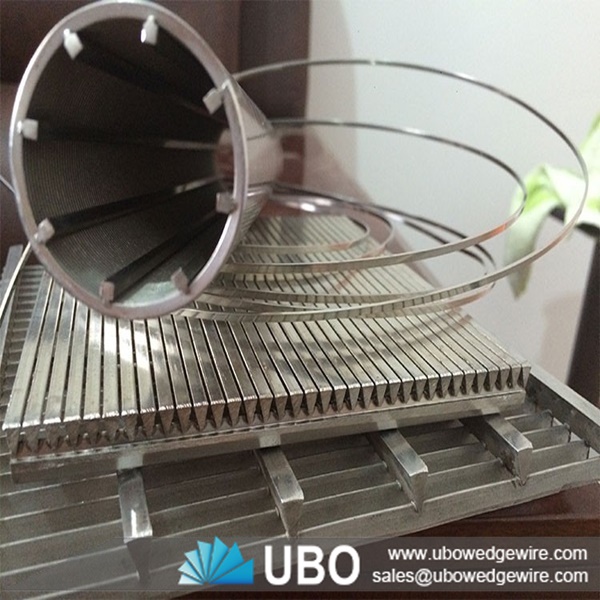

Wedge Wire Passive Screen for FiltrationWedge Wire Passive Screen for FiltrationWedge Wire Passive Screen for Filtration

Wedge Wire Passive Screen for Filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Passive Screen for Filtration

Passive intake screens, for the withdrawal of large volumes of water from streams, lakes/reservoirs is a very important segment of the products designed and manufactured by UBO Screen Company.

Passive screening admits water through the intake point at a low, uniform velocity. Water passes through the screen while aquatic life and debris remain in the water source. The screens have no moving parts, therefore the term “passive screening”. The screens can be placed away from the shoreline for better water quality and distant from high concentrations of debris and marine life.

Advantages of Wedge Wire Passive Screen for Filtration

-- Reliable water delivery

-- Lower screen cost

-- Simple intake and pump station design

-- Lower maintenance cost

-- Very low slot velocity and uniform flow

-- Environmentally fish friendly

-- Bio-fouling resistant screen material

Application of Wedge Wire Passive Screen for Filtration

-- Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.

-- Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.

-- Used for fiber removal in Starch industry.

wedge wire passive screen for filtration

Specifications of Wedge Wire Passive Screen for Filtration:

Surface profiles

Support profiles

Min.slot opening

Min.pitch in mm

Max.pitch in mm

10S

Q25

0.030

5

17

11S

Q25

0.030

5

17

12S

Q35

0.050

8.5

25

18S

Q35

0.050

8.5

25

18S

10x3/25x3

0.200

17

25

22S

Q25

0.100

8.5

22

22S

10x3

0.200

17

25

28S

Q35/D45/25x3

0.200

17

25

34S

Q35/10x3/25x3

0.200

17

25

42S

Q35/10x3/25x3

0.200

17

25

42S

38x3

0.200

25

25

wedge wire passive screen for filtration

Packaging and Transportation of Wedge Wire Passive Screen for Filtration:

Package: in wood case

Delivery Time: 5-25 days
