Quality Wedge Wire Screen Manufacturer in China

Wedge Wire Filter Cartridge for Oil Filtration

More Views

Wedge Wire Filter Cartridge for Oil FiltrationWedge Wire Filter Cartridge for Oil FiltrationWedge Wire Filter Cartridge for Oil Filtration

Wedge Wire Filter Cartridge for Oil Filtration

Category:Wedge Wire Application
Material:stainless steel304,316,316L
Properties:wedge wire screen
Application:oil,water,gas,food,industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Filter Cartridge for Oil Filtration

The wedge wire filter cartridge is formed by welding wire(cross section is wedge)through a special welding technology welded on the support wire, use Special equipment for resistance welding, high welding strength, uniform gap, strong corrosion resistance, effective filter area, high penetration efficiency, simple structure, minimum aperture 25μm, arbitrarily chosen by the customer.

Applications of Wedge Wire Filter Cartridge for Oil Filtration

The product is especially suitable for fluids containing wax, asphalt and high viscosity. Widely used in coarse and fine filtration of water treatment of power oil wells, gas wells, wells, chemical, mining, paper making, environmental protection, metallurgy, food, sand, decoration and other industries

Features of Wedge Wire Filter Cartridge for Oil Filtration

-- High mechanical strength, can withstand greater pressure

-- Uniform aperture, form uniform filter cake, beneficial backwash regeneration

-- Wedge-shaped filter gap, improve backwash regeneration capacity

-- High pressure, high temperature, anti-aging, corrosion resistant, available for many types liquid.

-- Almost two-dimensional filter, without particle accumulation, can gather energy when backwash, good backwash effect.

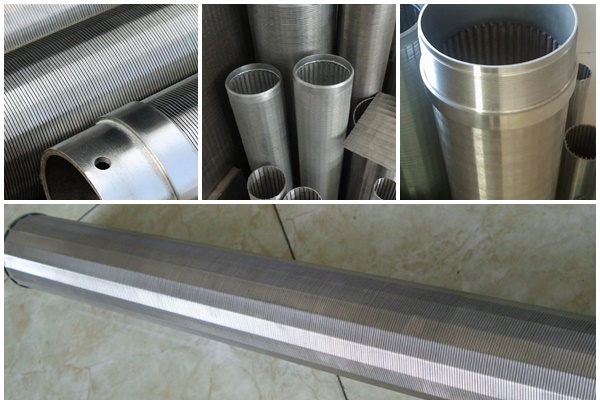

wedge wire filter cartridge for oil filtration

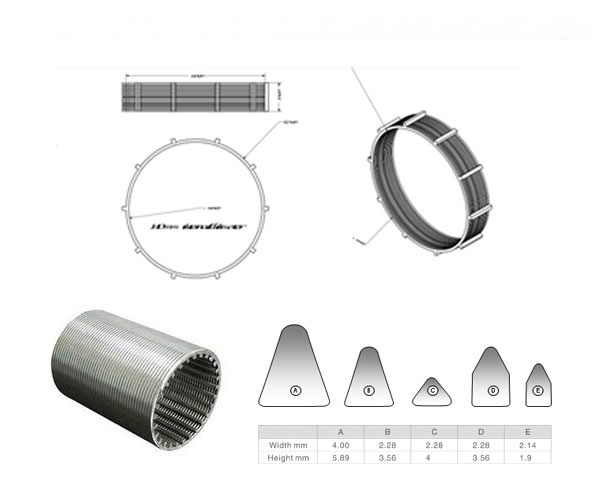

Specifications of Wedge Wire Filter Cartridge for Oil Filtration:

wedge wire filter cartridge

Standard
wedge wire filter cartridge
Material
304, 316L
Outside Diameter(mm)
25.4, 33, 38, 50, 57, 76, 89, 105, 117, 130, 850; Special size
can customized as customers’ request.
Slot Size
0.025mm- 6.00mm; Special size can customized as customers’ request.
Wedge Wire (mm)
1.0*2.0
1.2*2.5
1.5*2.8
1.8*3.7
2.2*4.5
2.8*5.5
3.4*6.8
Support Rod (mm)
2*3
3*5
2*10
2*15
3*10
3*15
3*25
3*40
3.8*5.5
Length
Max 6 meters.
Note: Other specifications can be customized according to your requirement.

Packaging and Transportation of Wedge Wire Filter Cartridge for Oil Filtration:

packing
