Wedge Wire Centrifugal Screen for Water Softening

More Views

Wedge Wire Centrifugal Screen for Water SofteningWedge Wire Centrifugal Screen for Water SofteningWedge Wire Centrifugal Screen for Water Softening

Wedge Wire Centrifugal Screen for Water Softening

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Centrifugal Screen for Water Softening

Wedge wire centrifugal screen are commonly used to separate large amounts of solids from liquids,again the aperture of the screen will determine the size of the particles allowed to flow through the drum,rotating trommel drums work by getting slurry pumped into one end of the drum,as the drum rotates the smaller particles fall through the larger particles make their way to the end of the drum as the drums are usually set up on a slight angle to help the material flow.

Application for Wedge Wire Centrifugal Screen for Water Softening:

Stainless steel Wedge wire screen cylinders can be used in waste water filtration, food processing, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

Features for Wedge Wire Centrifugal Screen for Water Softening:

•Reduced costs, since wedge wire screens have a very long life.

•Greater resistance to stresses of different pressure and temperature.

•Maximum effective flow area & operating efficiency is maintained.

•Costly downtime for cleaning plugged screens is minimize.

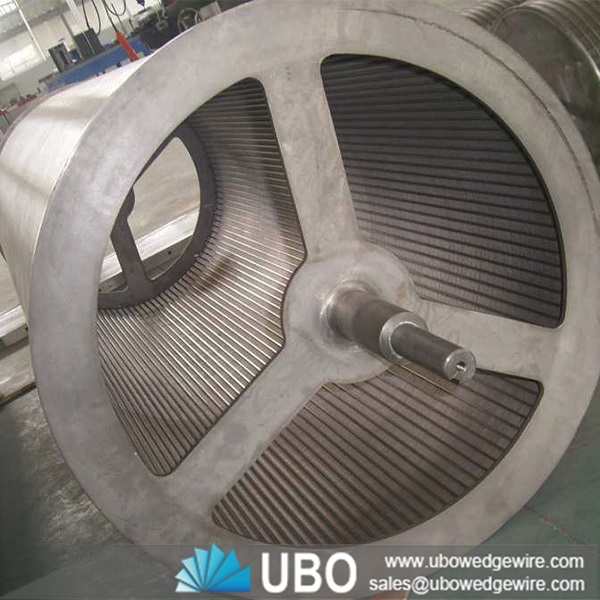

Wedge wire centrifugal screen for water softener

Specifications of Wedge Wire Centrifugal Screen for Water Softening:

Wedge wire centrifugal screen for water softener



Model
Mixed Juice Capacity (t/hr)
Drum Diameter (mm)
Drum Length (mm)
Drive (KW)
Feed (inlet) Size
Discharge (outlet)Size
Approx. Mass (kg)
WT610
40
600
1000
1.5
DN100
DN150
535
WT615
73
600
1500
1.5
DN100
DN150
650
WT1015
99
1000
1500
2.5
DN150
DN200
1050
WT1018
132
1000
1800
2.5
DN150
DN200
1170
WT1518
165
1500
1800
4.0
DN200
DN250
1775
WT1521
214
1500
2100
4.0
DN250
DN300
1940
WT1824
264
1500
1400
5.5
DN250
DN300
2130

Packaging and Transportation of Wedge Wire Centrifugal Screen for Water Softening:

Package: in wood case

Delivery Time: 5-25 days
