V wedge wire stainless steel water well pipe screen filter

More Views

V wedge wire stainless steel water well pipe screen filterV wedge wire stainless steel water well pipe screen filterV wedge wire stainless steel water well pipe screen filter

V wedge wire stainless steel water well pipe screen filter

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of V wedge wire stainless steel water well pipe screen filter

Wedge Wire Water Well Pipe Screen Filters are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.

V wedge wire stainless steel water well pipe screen filter

Application of Wedge Wire Water Well Pipe Screen Filter

Used for Johnson pipe V wire wrap screen tube wedge wire screen:
The stainless steel johnson water well screen pipe is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.

Features of Wedge Wire Water Well Pipe Screen Filter

1) They consist of V-shape or wedge shape profile wire and the longitudinal support rods.

2) The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.

3) Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.

Features of Wedge Wire Water Well Pipe Screen Filter

-- High corrosion resistance

-- Very accurate slot opening

-- Minimum risk cementing up

-- Uncomplicated installation

V wedge wire stainless steel water well pipe screen filter

Specifications of V wedge wire stainless steel water well pipe screen filter:

1) Materials: stainless steel and low carbon steel, such as 304 302 304L 316 316L Q235, and they can be made according to the customers requirement.

2) Diameter:33-600mm (1-20inch)

3) Slot:0.05,0.1,0.2,0.5,0.75,1,1.5,2mm

4) Length:1-10m(5.8m for the 20ft container)

5) Connection: Welding, Thread (STC,LTC,BTC),Flange

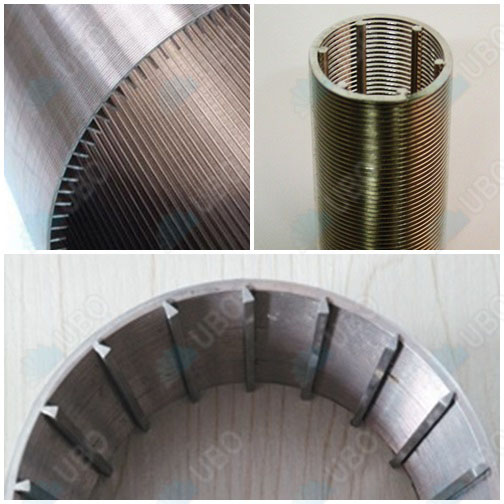

V wedge wire stainless steel water well pipe screen filter

Normal size

(mm)

ID

(mm)

Thickness

(mm)

Coupling OD (mm)

50

38

4

52

60

50

4

62

70

60

4

72

80

70

4

82

90

80

4

92

108

98

4

110

127

108

6

129

146

136

4

148

159

140

6

161

178

168

4

180

219A

200

6

221

219

209

4

234

245A

224

6

246



Packaging and Transportation of V wedge wire stainless steel water well pipe screen filter:

V wedge wire stainless steel water well pipe screen filter
