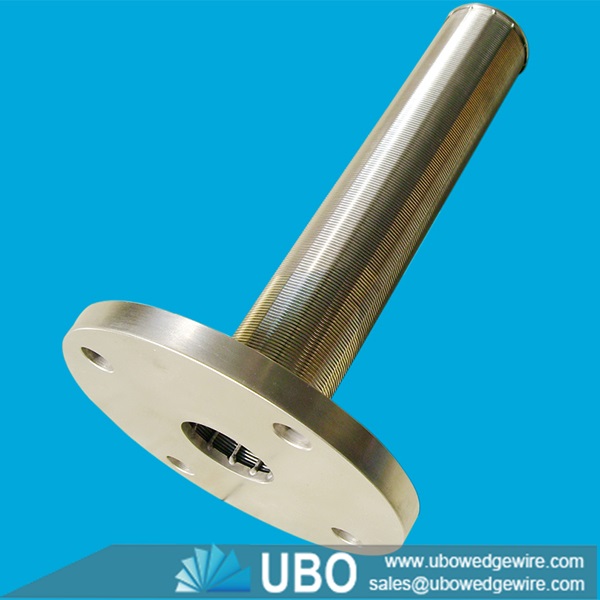

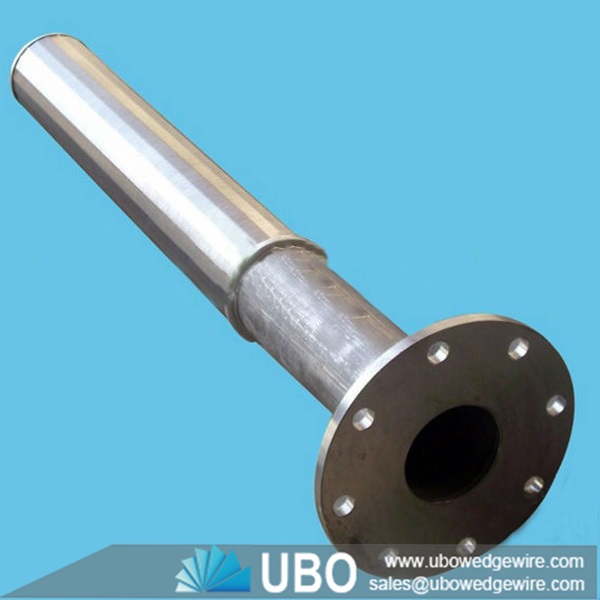

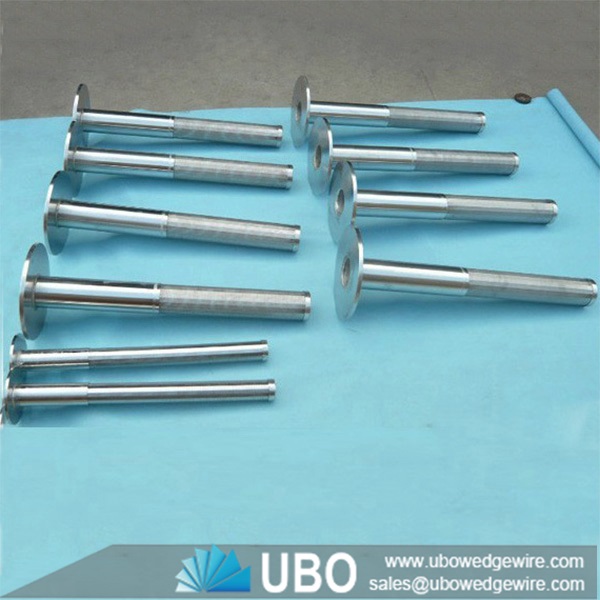

Stainlees steel V Wedge Wire Resin Traps Screen

More Views

Stainlees steel V Wedge Wire Resin Traps ScreenStainlees steel V Wedge Wire Resin Traps ScreenStainlees steel V Wedge Wire Resin Traps Screen

Stainlees steel V Wedge Wire Resin Traps Screen

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Resin Traps
Application:solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainlees steel V Wedge Wire Resin Traps Screen

    Resin traps are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. Haixing offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.

Application for Stainlees steel V Wedge Wire Resin Traps Screen:

Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Principle for Stainlees steel V Wedge Wire Resin Traps Screen:

A Resin Trap / Strainer normally serves to retain particles in a process flow. The quantity of particles is normally very low,so that cleaning can be done during flow interruption.

Advantages for Stainlees steel V Wedge Wire Resin Traps Screen:

Very precise slots for perfect particle retention combined with minimum
Obstruction of the process flow,flexibility in design,strong construction,Large open area,plug-resistant slot design.

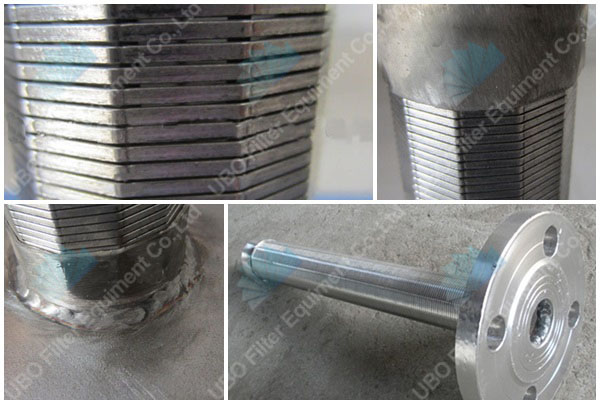

Stainlees steel V Wedge Wire Resin Traps Screen

Specifications of Stainlees steel V Wedge Wire Resin Traps Screen:

Stainlees steel V Wedge Wire Resin Traps Screen

Type
Slots mm
ΦA
Flange DN
L1mm
AM1
0.05, 0.1, 0.2  0.3, 0.5, 1.0
45,57,76,89,108,
133, 159, 219
40,50,65,80,
100,125,150,
200
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286

Packaging and Transportation of Stainlees steel V Wedge Wire Resin Traps Screen:

Stainlees steel V Wedge Wire Resin Traps Screen

Stainlees steel V Wedge Wire Resin Traps Screen
