Quality Wedge Wire Screen Manufacturer in China

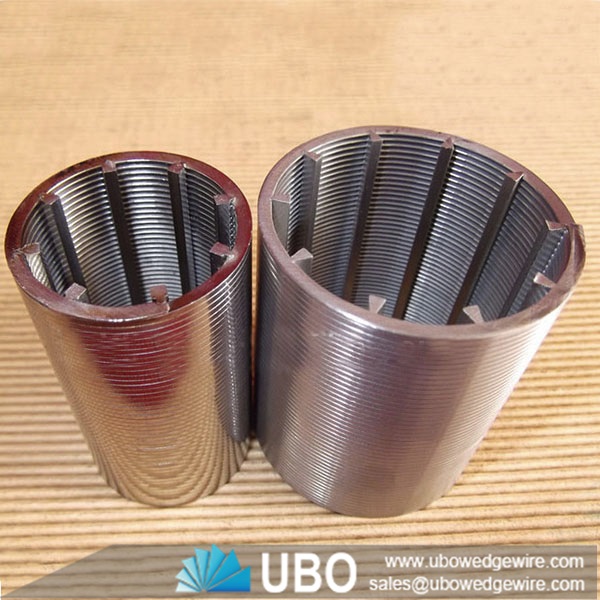

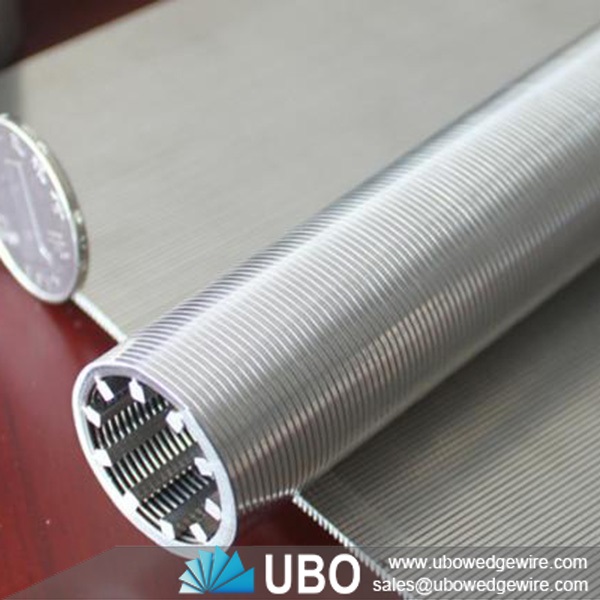

Stainless Steel Welded V Wedge Wire Wrap Candle Screen

More Views

Stainless Steel Welded V Wedge Wire Wrap Candle ScreenStainless Steel Welded V Wedge Wire Wrap Candle ScreenStainless Steel Welded V Wedge Wire Wrap Candle Screen

Stainless Steel Welded V Wedge Wire Wrap Candle Screen

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Pipe
Application:water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Welded V Wedge Wire Wrap Candle Screen

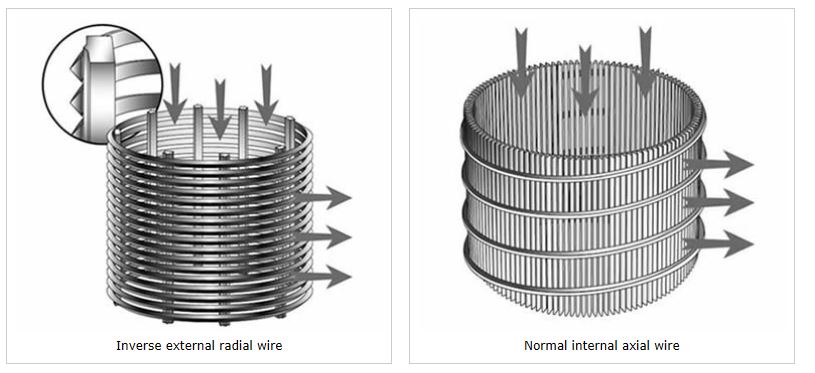

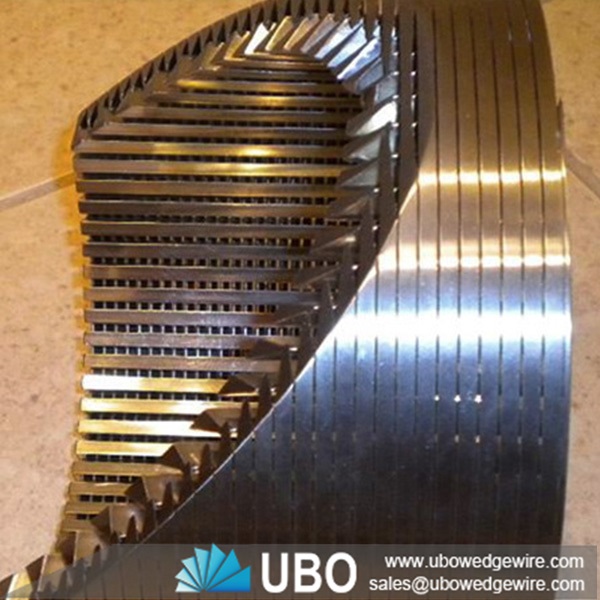

     Stainless steel wedge wire screens are made of SS "V" shaped and SS "V" shaped and SS rod or SS "Convex "shaped rod with the unique computer controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded into support rods. This 'V' shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening. The Cylinder Screen have a perfectly flat and smooth surface with rectangular openings , also named SS wedge wire screen, SS wedge profile wire screen Cylinder or SS wedge Cylindrical Screen

Stainless Steel Welded V Wedge Wire Wrap Candle Screen

Applications for Stainless Steel Welded V Wedge Wire Wrap Candle Screen:

Wedge wire products are used for solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells, Water Wells, monitoring & soil sanitation, the (petro) chemical industry, food and process industry and architecture.

Features for Stainless Steel Welded V Wedge Wire Wrap Candle Screen:

Backwashable welded wedge wire FOTI tubes
Low heel volume
Easy to clean smooth filtration surface
Outside to inside flow
No moving parts
Permanent Filter element
Fine Filtration down to particles (10 Microns and above)

Advantages for Stainless Steel Welded V Wedge Wire Wrap Candle Screen:

Clean and hygienic operation
Highest level safety for operator and process
Eco-friendly operation
Stand alone equipment
Backwashing facility
Permanent candles
Steam back-washable

Stainless Steel Welded V Wedge Wire Wrap Candle Screen

Stainless Steel Welded V Wedge Wire Wrap Candle Screen



Stainless Steel Welded V Wedge Wire Wrap Candle Screen

Specifications of Stainless Steel Welded V Wedge Wire Wrap Candle Screen:

Stainless Steel Welded V Wedge Wire Wrap Candle Screen



size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

Packaging and Transportation of Stainless Steel Welded V Wedge Wire Wrap Candle Screen:

Stainless Steel Welded V Wedge Wire Wrap Candle Screenvv
