V wedge wire rotary screen cylinder oilfield

More Views

V wedge wire rotary screen cylinder oilfieldV wedge wire rotary screen cylinder oilfieldV wedge wire rotary screen cylinder oilfield

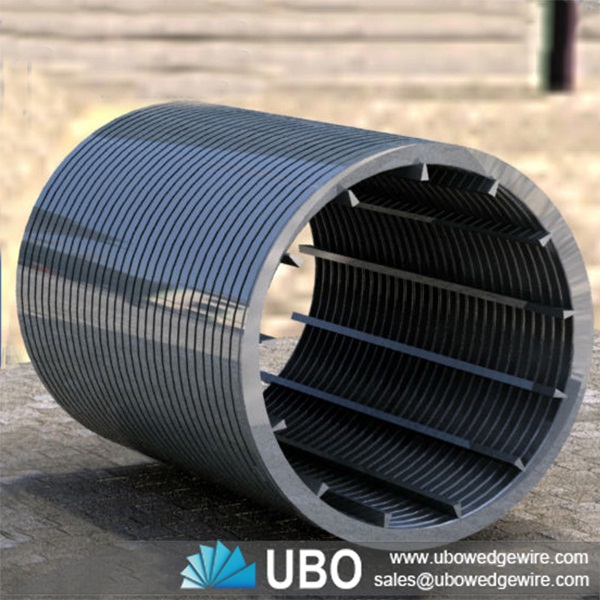

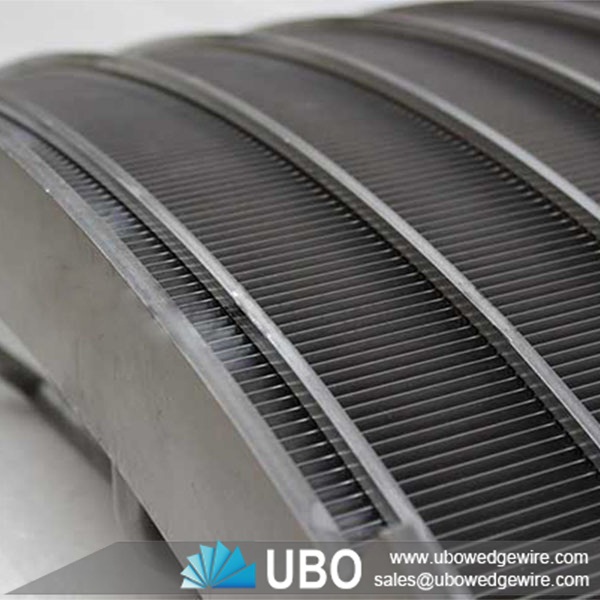

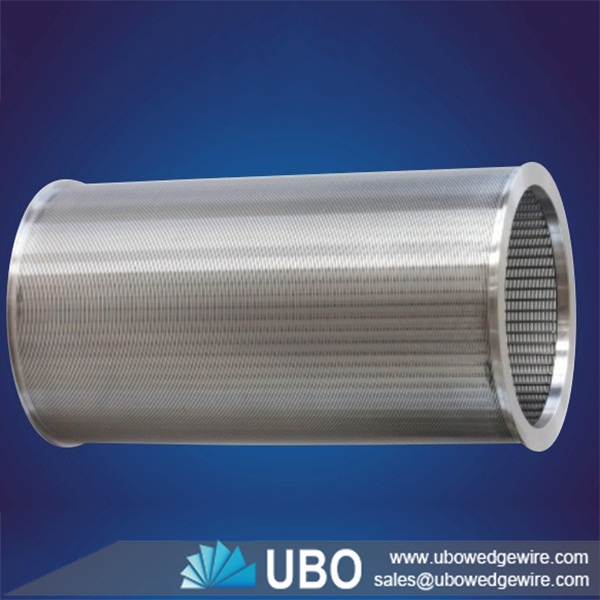

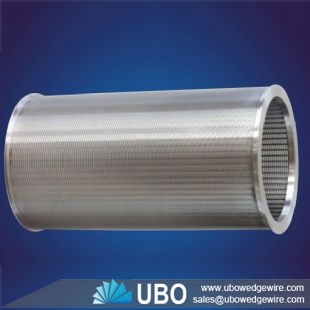

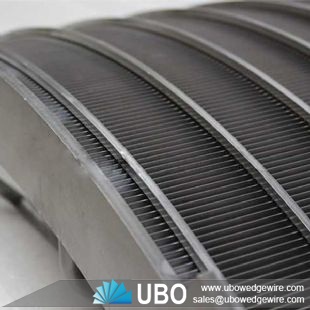

V wedge wire rotary screen cylinder oilfield

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:screen cylinders
Application: water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of V wedge wire rotary screen cylinder oilfield

    Stainless steel wedge wire screens are made of SS "V" shaped and SS "V" shaped or SS "V" shaped and SS rod or SS "V" shaped and SS "Convex "shaped rod with the unique computer controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded into support rods. This 'V' shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening. The Cylinder Screen have a perfectly flat and smooth surface with rectangular openings , also named SS wedge wire screen, SS wedge profile wire screen Cylinder or SS wedge Cylindrical Screen .

Application for V wedge wire rotary screen cylinder oilfield:

Stainless steel pipe filter screen is a kind of filtered water tubing with the perforation, it can use with the deep well pump, water diving pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Characteristics for V wedge wire rotary screen cylinder oilfield:

The welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Advantages for V wedge wire rotary screen cylinder oilfield:

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

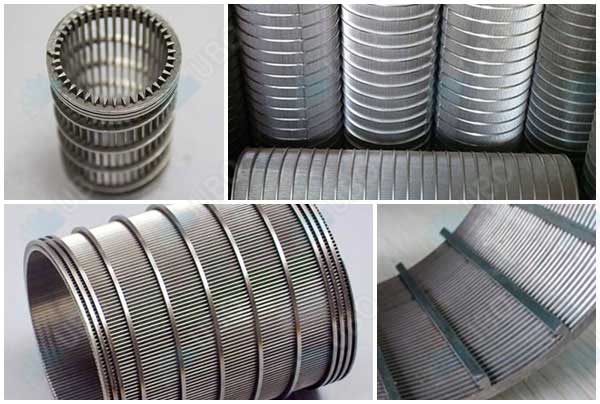

V wedge wire rotary screen cylinder oilfield

Specifications of V wedge wire rotary screen cylinder oilfield:



Screen Size
ID
OD
Female thread dismeter
in
mm
in
mm
in
mm
in
mm
2
51
2
51
25/8
67
23/4
70
3
76
3
76
35/8
92
33/4
95
4
102
4
102
45/8
117
43/4
121
5
127
5
127
55/8
143
53/4
146
6
152
6
152
65/8
168
7
178
8
203
8
203
85/8
219
91/4
235
10
254
10
254
103/4
273
113/8
289
12
305
12
305
123/4
324
133/8
340
14
356
13 1/8
333
14
356
-
-
16
406
15
381
16
406
-
-
20
508
18 3/5
476
20
508
-
-

Filter flow direction for V wedge wire rotary screen cylinder oilfield:

V wedge wire rotary screen cylinder oilfield

V wedge wire rotary screen cylinder oilfield

V wedge wire rotary screen cylinder oilfield

Packaging and Transportation of V wedge wire rotary screen cylinder oilfield:

V wedge wire rotary screen cylinder oilfield
