V-shape profile wire screen panel for filtration

More Views

V-shape profile wire screen panel for filtrationV-shape profile wire screen panel for filtrationV-shape profile wire screen panel for filtration

V-shape profile wire screen panel for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of V-shape profile wire screen panel for filtration

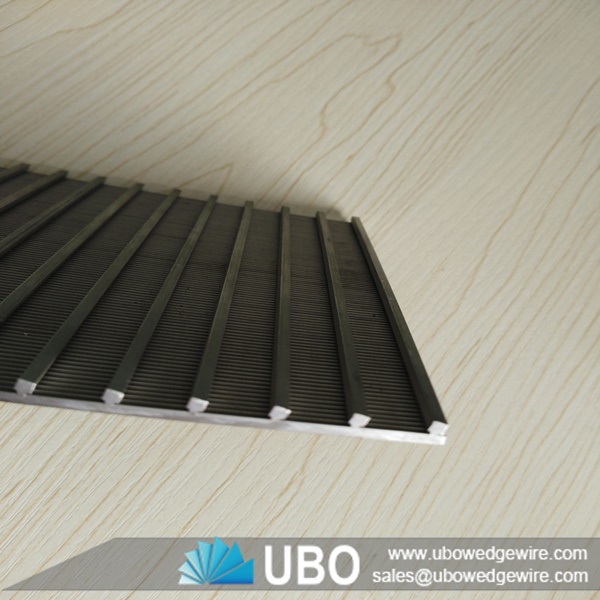

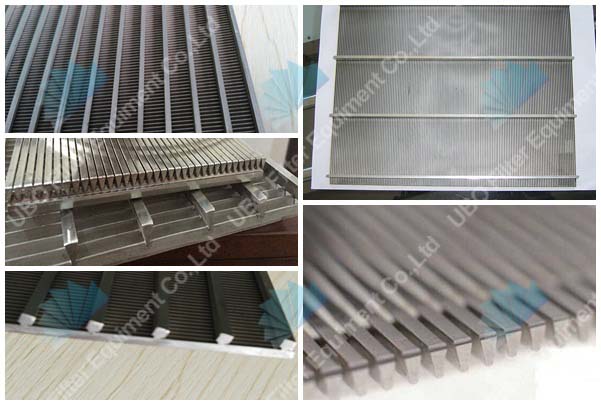

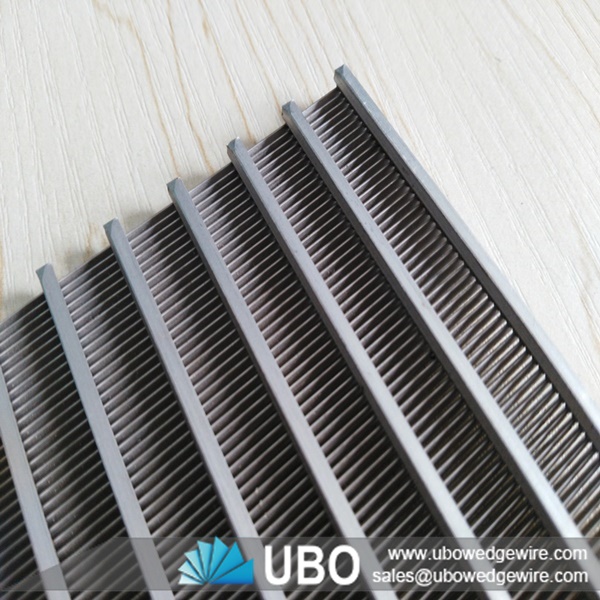

UBO screen panel consist of V-shape profile wire and the longitudinal support rods. The V wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. So Water Well Screens has sturdy constriction and good mechanical property.

Features of V shaped profile wire screen panel for filtration

-- Bigger filter area preventing buildups of impurities;

-- Easy maintenance / back flushing;

-- Low operational cost;

-- Minimum gap between profiles is about 20 micron (0.020mm);

-- Stop impurities/ particles with its v-shaped construction.

Applications of V shaped profile wire screen panel for filtration

Vibrating screen decking,cross flow sieves, surface water intake screen, mineral processing, fish diversion screen panel, hatchery screens, food processing, and flooring for malt kiln,germination, and grain drying.

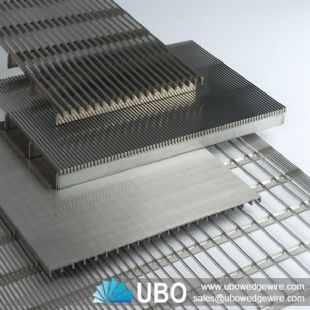

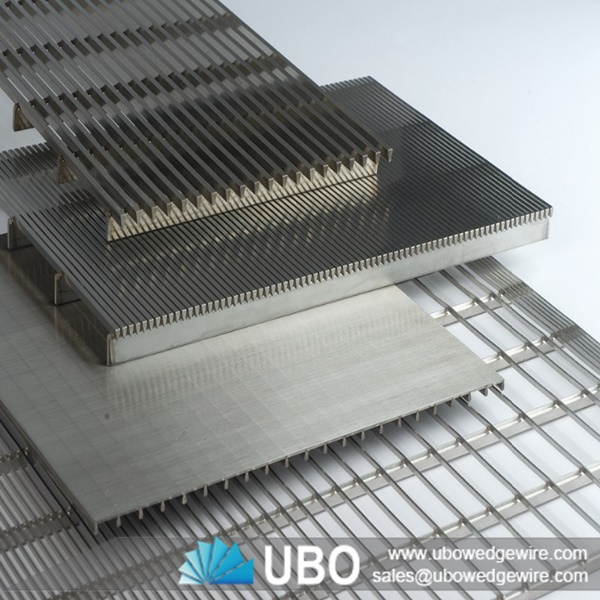

V-shape profile wire screen panel for filtration

Specifications of V-shape profile wire screen panel for filtration:

transportation

V shaped profile wire screen panel for filtration

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Width

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Note: Other specifications can be customized according to your requirement
