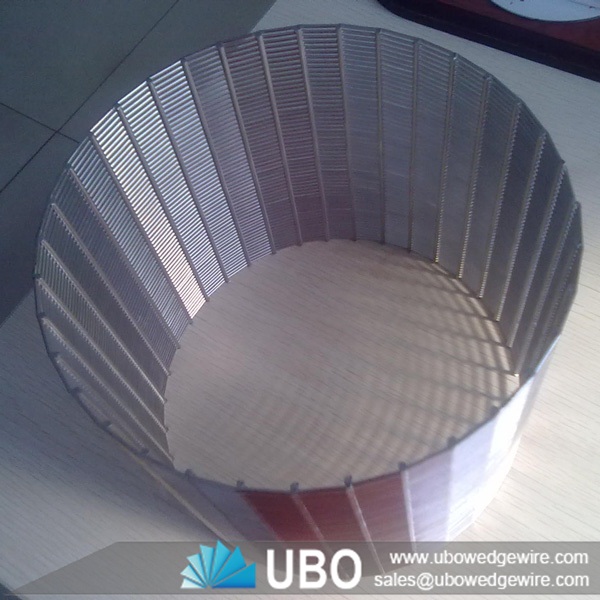

V Wire Water Well Screen for filtration

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application:Filters

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of V Wire Water Well Screen for filtration

wedge wire screen pipes are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods.

The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water(oil) to enter well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.

The continuous slot of water well screen pipes have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.

Features of V Wire Water Well Screen for filtration

1) Cylinder structure, continuous gaps provide larger aperture ratio.

2) Precision gaps dimensions, long service life.

3) Easy to leakage,difficult to clog,wear-resistance.

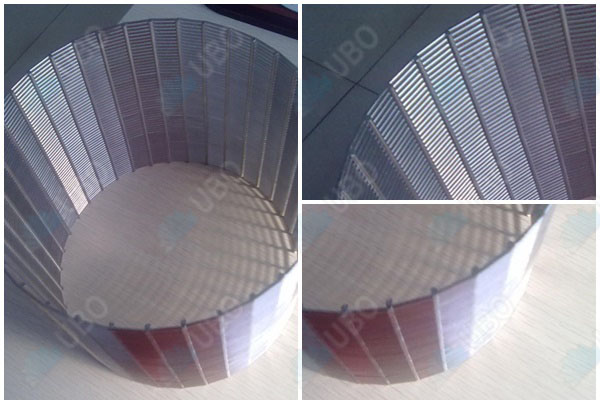

       V Wire Water Well Screen for filtration

Specifications of V Wire Water Well Screen for filtration:

Specification

(Profile wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Specification (support rods):

Width(mm): 2.30 3.00 3.30 3.70


Height(mm): 2.70 3.60 4.70 5.60 6.30


Round: From 2.50mm to 6.0mm


Note: other wires and rods can be costumed according to your requests

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also


achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded

Packaging and Transportation of V Wire Water Well Screen for filtration:

Reinforced wedge wire screen pipes manufacturer are produced like this:

1) High quality wedge wires imported from the UK

2) Sheet metal cutting up to 8mm thick. Rapid cutting speed, high precision and throughput.

3) Combination of GSI fiber laser and FANUC industrial robot, these systems can be used for 3D laser surface treatment of various metallic components.
