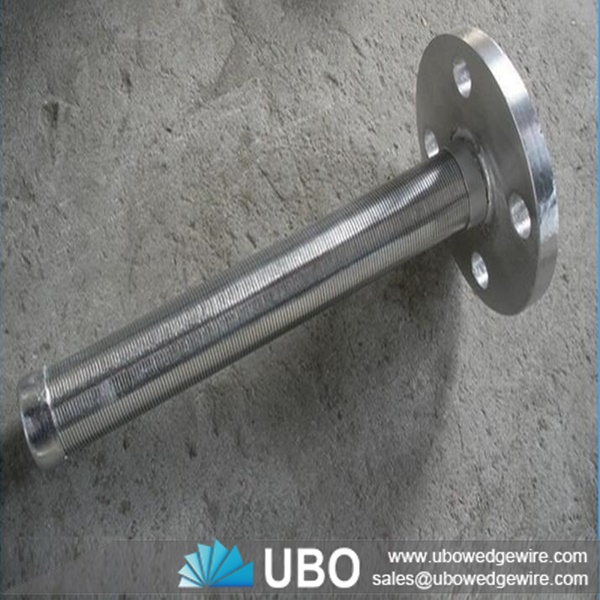

Strainer Resin Trap Filter for Water Filtration

More Views

Strainer Resin Trap Filter for Water FiltrationStrainer Resin Trap Filter for Water FiltrationStrainer Resin Trap Filter for Water Filtration

Strainer Resin Trap Filter for Water Filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Strainer Resin Trap Filter for Water Filtration

The strainer resin trap filter is normally a slot tube, but can also be a cylinder. A strainer resin trap filter is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.

Resin traps are placed in a housing inline with the flow to capture expensive media. We can design the traps to capture media particles as small as 100 microns. With the continuous open slot, the traps provide sufficient open area to let process flow move effectively. Our engineering group can provide a complete system with housing design.

Principle: A resin trap normally serves to retain particles in a process flow. The quantity of particles is normally very low, so that cleaning can be done during flow interruption.

Advantages of Strainer Resin Trap Filter for Water Filtration



-- Very precise slots for perfect particle retention combined with minimum obstruction of the process flow.

-- Flexibility in design

-- Strong construction (self supporting)

-- Large open area

-- Plug-resistant slot design

Application of Strainer Resin Trap Filter for Water Filtration



A resin trap is normally used: to capture expensive resin that escapes from a treatment vessel by accident, to protect equipment further downstream. A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.


Advantages: very precise slots for perfect particle retention combined with minimum obstruction of the process flow. Flexibility in design. Strong construction (self supporting). Large open area. Plug-resistant slot design.

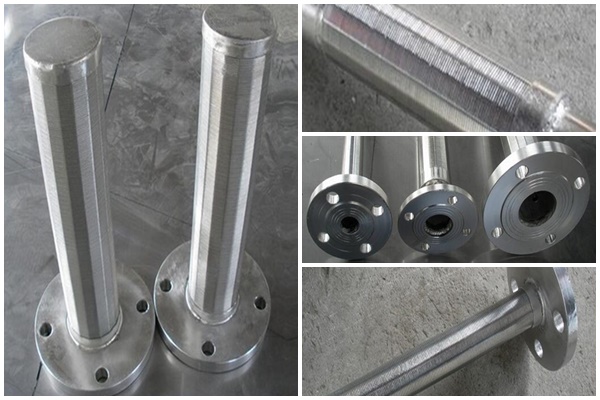

strainer resin trap filter

Specifications of Strainer Resin Trap Filter for Water Filtration:

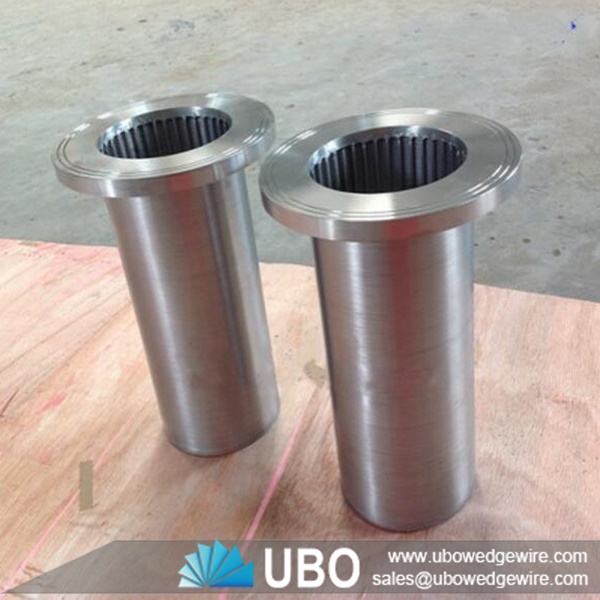

strainer resin trap filter for water filtration

Material:stainless steel

Type:resin trap(with flange)

Type Slots mm ΦA Flange  L1mm
AM1 0.05, 0.1, 0.2,  0.3, 0.5,  1.0 45, 57, 76, 89, 108, 133, 159, 219 40,   50,   65,   80,  100, 125,  150,  200 442,  496,  547,  600,  654,  705,  758,  812,  863,  916,  970,  1021,  1074, 1128, 1179, 1232, 1286

Customize is available.

Packaging and Transportation of Strainer Resin Trap Filter for Water Filtration:

packing
