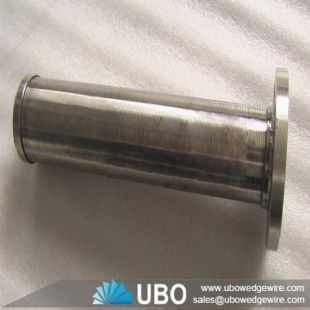

SS wedge wire screen strainer resin trap filter

More Views

SS wedge wire screen strainer resin trap filterSS wedge wire screen strainer resin trap filterSS wedge wire screen strainer resin trap filter

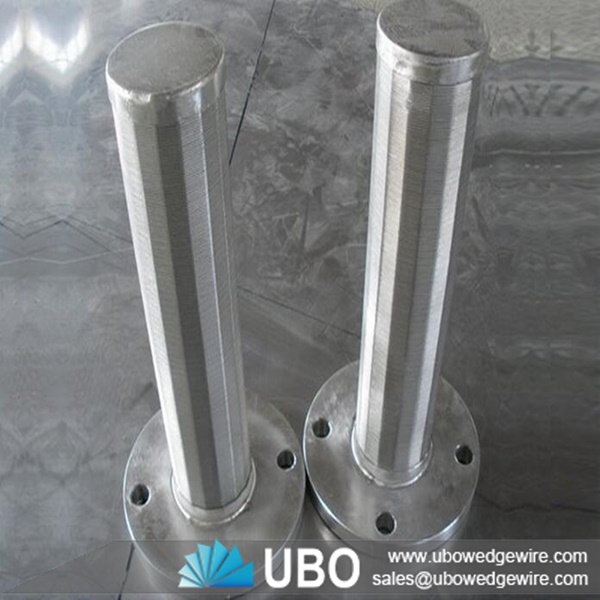

SS wedge wire screen strainer resin trap filter

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire resin trap
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS wedge wire screen strainer resin trap filter

SS wedge wire screen strainer resin trap filter is made of V shaped stainless steel wire. It has flow area.water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.

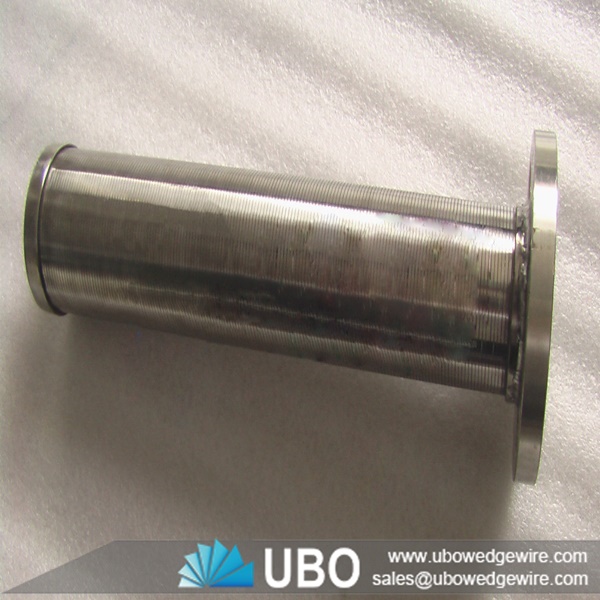

SS wedge wire screen strainer resin trap filter

Features of SS wedge wire screen strainer resin trap filter

-- No loss of expensive resins

-- Cross-contamination of resins

-- Damage to pumps, valves, etc. further down process disturbance

-- Environmental damage incurred by loss of resins.

-- Wedge wire is non pluggling surface.

-- Wedge wire is a fully welded construction able to support high pressure and temperature

-- An easy installation ( between flanges) directly on the line.

Principle of SS wedge wire screen strainer resin trap filter

A resin trap/strainer normally serves to retain particles in a process flow. The quantity of particles is normally very low, so that cleaning can be done during flow interruption.

Application of SS wedge wire screen strainer resin trap filter

A resin trap is normally used: to capture expensive resin that escapes from a treatment vessel by accident, to protect equipment further downstream. A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

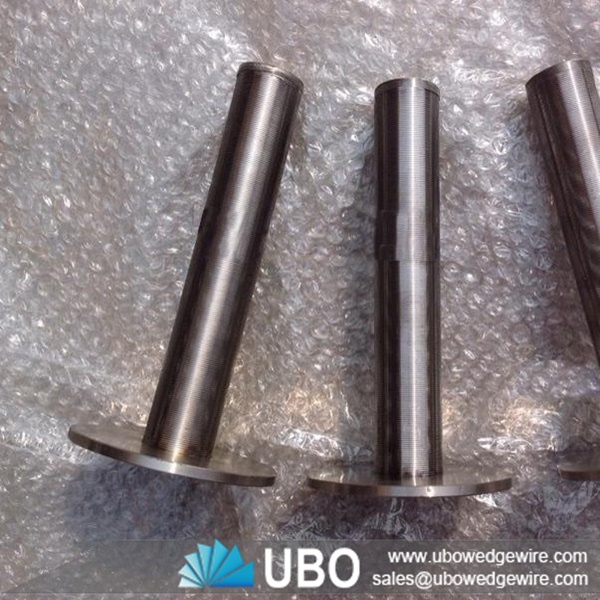

SS wedge wire screen strainer resin trap filter

Specifications of SS wedge wire screen strainer resin trap filter:

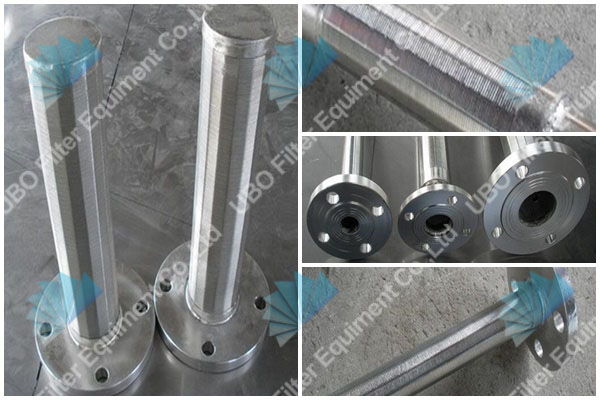

SS wedge wire screen strainer resin trap filter

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings
