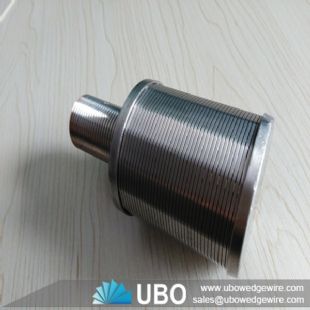

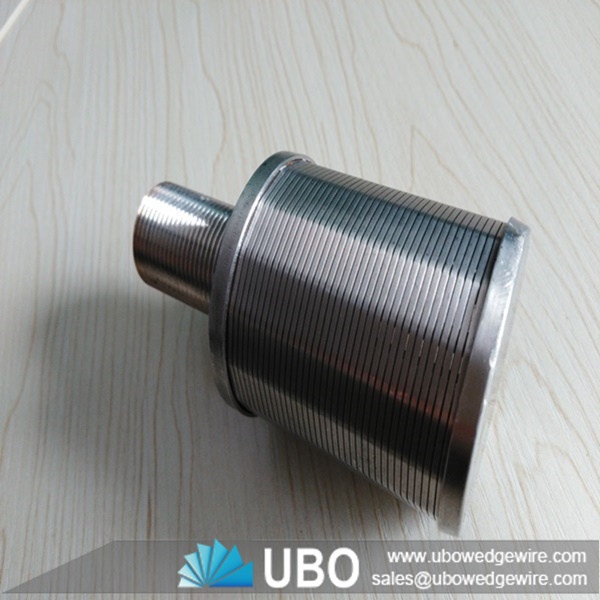

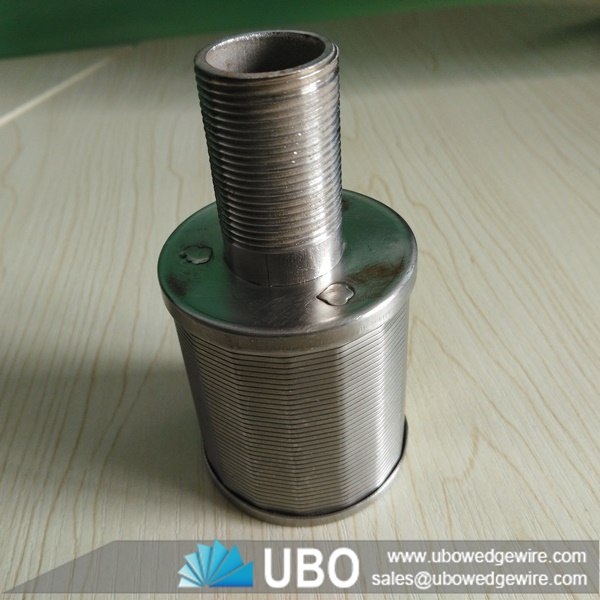

Stainless steel wedge wire screen filter nozzle for liquid filtration

More Views

Stainless steel wedge wire screen filter nozzle for liquid filtrationStainless steel wedge wire screen filter nozzle for liquid filtrationStainless steel wedge wire screen filter nozzle for liquid filtration

Stainless steel wedge wire screen filter nozzle for liquid filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel wedge wire screen filter nozzle for liquid filtration

Stainless steel wedge wire screen filter nozzle, manufactured uniquely in stainless steel or alloy, are successfully used in mixed beds, ion exchangers and regenerators of condensate polishing system. Advanced design ensures extended service runs, effective flushing of resins, short regeneration time, effective separation of mixed beds and highly efficient operation at low cost. The combination of high open area and a non-plugging slot design makes these strainer applications popular. Typical filter strainers are fabricated with a blind cap on one end and washer fixed with a threaded stem on the other end. Filter nozzle can be made with many different slot sizes and body configurations to suit specific flows or media retention.

Feature of Stainless steel wedge wire screen filter nozzle for liquid filtration

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Uses of Stainless steel wedge wire screen filter nozzle for liquid filtration

The Wedge Wire wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

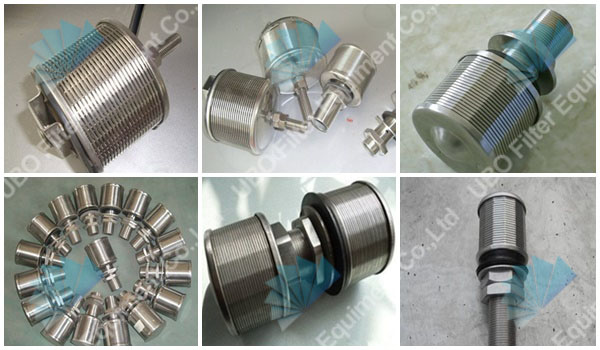

Wedge Wire wedge wire screen filter nozzle for liquid filtration

Specifications of Stainless steel wedge wire screen filter nozzle for liquid filtration:

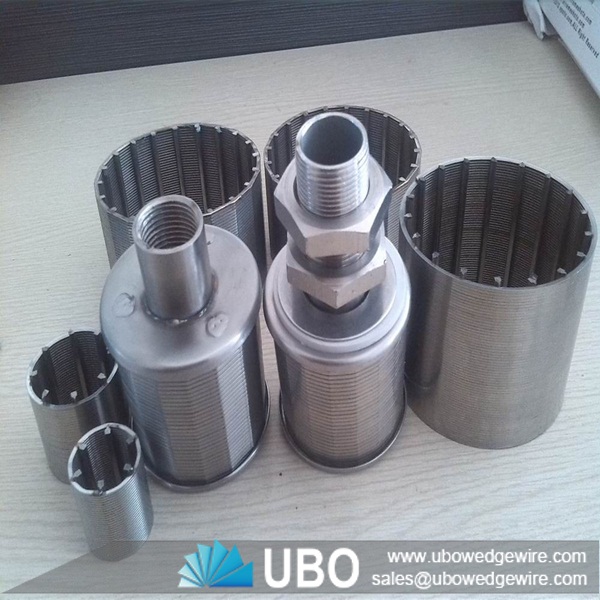

Wedge Wire wedge wire screen filter nozzle for liquid filtration
Screen Size Inside Diameter Outside Diameter OD of Female Threaded End
in mm In mm in mm In mm
2 51 2 51 25/8  67 23/4  70
3 76 3 76 35/8  92 33/4  95
4 102 4 102 45/8  117 43/4  121
5 127 5 127 55/8  143 53/4  146
6 152 6 152 65/8  168 7 178
8 203 8 203 85/8  219 91/4  235
10 254 10 254 103/4  273 113/8  289
12 305 12 305 123/4  324 133/8  340
14 356 131/8  333 14 356
16 406 15 381 16 406
20 508 18 3/4  476 20 508


PROFILE WIRE
WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

SUPPORT ROD
----
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 ----
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----

Packaging and Transportation of Stainless steel wedge wire screen filter nozzle for liquid filtration:

transportation
