SS weld wedge v wire sieve bend screen for industry filtration

More Views

SS weld wedge v wire sieve bend screen for industry filtrationSS weld wedge v wire sieve bend screen for industry filtrationSS weld wedge v wire sieve bend screen for industry filtration

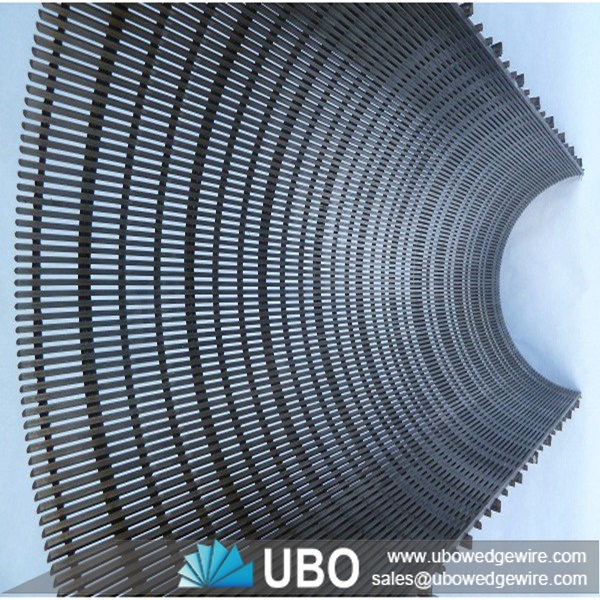

SS weld wedge v wire sieve bend screen for industry filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS weld wedge v wire sieve bend screen for industry filtration

SS weld wedge v wire sieve bend screen also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.

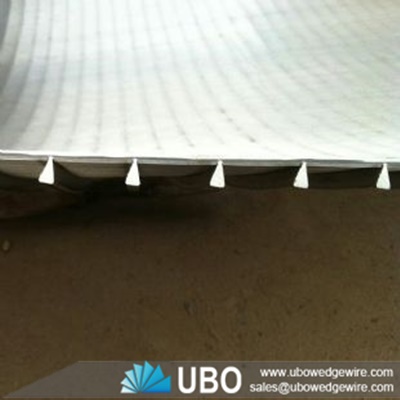

SS weld wedge v wire sieve bend screens are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.

A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Features of ss weld wedge v wire sieve bend screen for industry filtration

Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.02 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.
Flexible Design - we can supply units with any features you may require.

Usages of ss weld wedge v wire sieve bend screen for industry filtration

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry

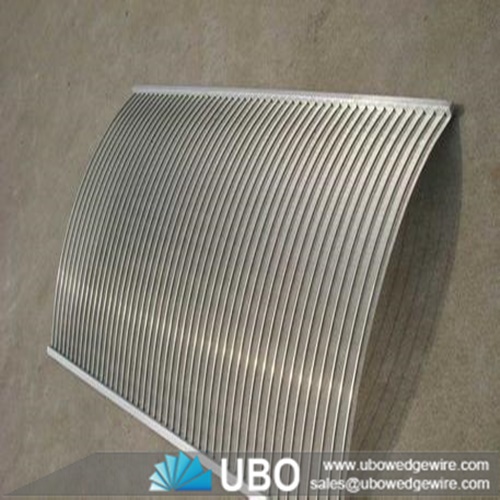

         SS weld wedge v wire sieve bend screen for industry filtration

Specifications of SS weld wedge v wire sieve bend screen for industry filtration:

Type: wedge wire sieve bend screen


Width (mm)


50-4000


Slot (mm)


0.010, 0.015, 0.02, 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.5......15 ...


Length (mm)


50-6000


Material


stainless steel (AISI 304, 316, 316L...), low carbon steel, low carbon steel galvanized zinc,

steel treated with plastic spraying

Radian (º)

13º 15º 30º or as your request


Note


Non-standard offer, can be produced as per request


SS weld wedge v wire sieve bend screen for industry filtration

The drawing for your referance.

Packaging and Transportation of SS weld wedge v wire sieve bend screen for industry filtration:

packing and transportation
