Quality Wedge Wire Screen Manufacturer in China

SS wedge wire pipe for Water well drilling

More Views

SS wedge wire pipe for Water well drillingSS wedge wire pipe for Water well drillingSS wedge wire pipe for Water well drilling

SS wedge wire pipe for Water well drilling

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS wedge wire pipe for Water well drilling

     Water well drilling is a rugged business. The stresses of installation along with the pressures and corrosion that are encountered downhole require a tough screen. At Delta Screens we manufacture our wedge wire stainless steel screens with some of the industry’s most experienced screen craftsmen and the most advanced screen-building technology in the world. You can have the utmost confidence that our stainless steel screens will stand the test of time with your water well application, whether it’s a small domestic well or a large municipal installation.

SS wedge wire pipe for Water well drilling

Application for SS wedge wire pipe for Water well drilling:

wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens, many other liquids, solids separation applications.

Characteristics for SS wedge wire pipe for Water well drilling:

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

Advantages for SS wedge wire pipe for Water well drilling:

1. Key-stone shaped slot pattern, low risk to plugging, easy to clean;
2. Superior resistant to corrosion and long lifespan in applications;
3. Optimized design for perforation, all welded structure, high mechanical strength which is competitive with casing of the same size;
4. Minimum slot opening: 0.1mm, which can satisfy the most of well-completion requirements.
5. High flow area;
6. The technical is mature, good adaptability.

SS wedge wire pipe for Water well drilling

Specifications of SS wedge wire pipe for Water well drilling:

SS wedge wire pipe for Water well drilling

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

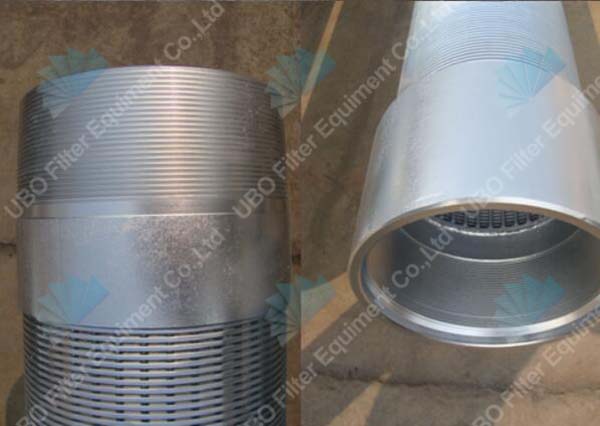

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of SS wedge wire pipe for Water well drilling:

SS wedge wire pipe for Water well drilling



SS wedge wire pipe for Water well drilling



SS wedge wire pipe for Water well drilling
