Quality Wedge Wire Screen Manufacturer in China

SS wedge wire flat screen plate for filtration

More Views

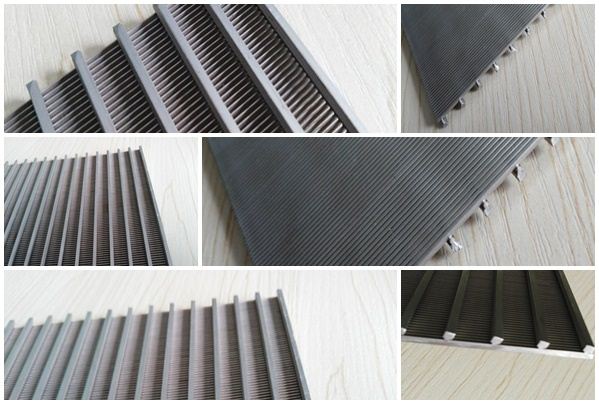

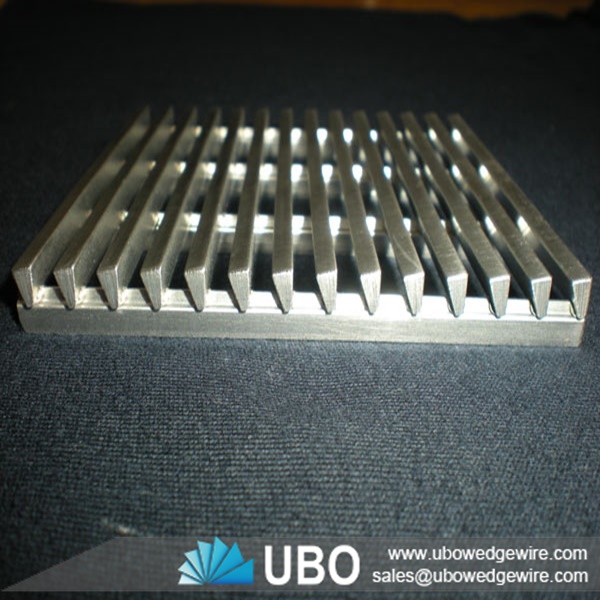

SS wedge wire flat screen plate for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,316,316L
Properties:wedge wire screen
Application:water, oil, liquid filtration, industry filtration.etc

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS wedge wire flat screen plate for filtration

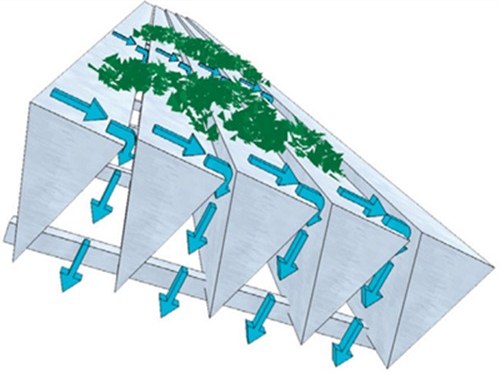

SS wedge wire flat screen plate is a metal mesh structure used for screening and filtering. It's screen strip is welded by cold-rolled steel strip wire and it's supporting rod is welded by automatic production equipment,. The dimensions, wire diameter, slot and frame structure can be customized. Round, square, fan shaped are available.

SS wedge wire flat screen plate for filtration

Advantages of SS wedge wire flat screen plate for filtration

1) With smooth surface, the material is easy to flow.

2) Uniform slot can reach high efficiency sieving

3) Unique processing technic ensures the higher supporting strength

4) Can be manufactured into any shape per customer's request

Applications of SS wedge wire flat screen plate for filtration

It is widely applied in the screening, filtering, dehydration and slime separation of various industries, such as chemical industry, petrochemical industry, environmental protection, water treatment, paper making, water filtration, starch processing, sugar refining, coal washing, solid-liquid separation separation, ore screening and etc.

SS wedge wire flat screen plate for filtration

Specifications of SS wedge wire flat screen plate for filtration:

SS wedge wire flat screen plate for filtration

SS wedge wire flat screen plate for filtration

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Width

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Note: Other specifications can be customized according to your requirement

Packaging and Transportation of SS wedge wire flat screen plate for filtration:

packing: wooden case

transportation
