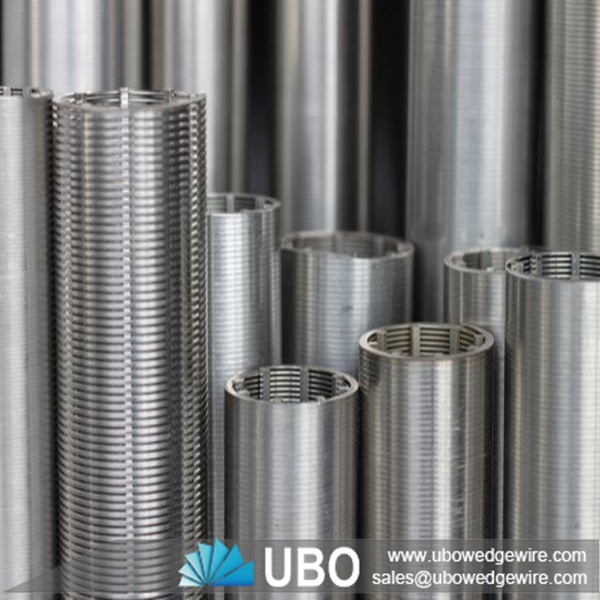

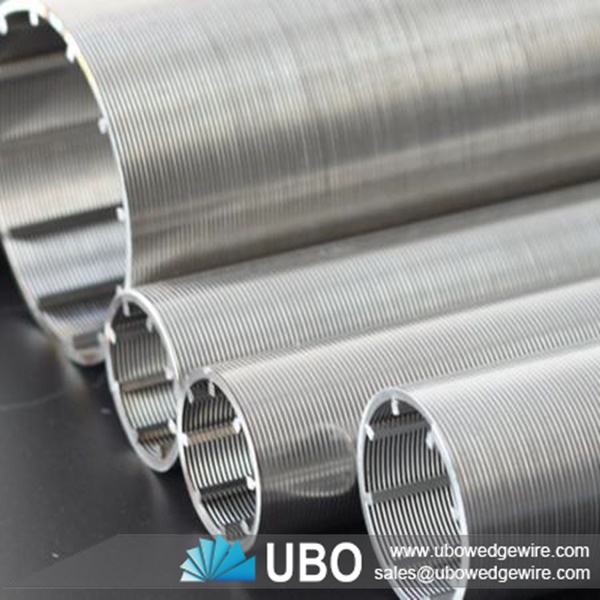

SS wedge v wire screen tube for filtration
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of SS wedge v wire screen tube for filtration

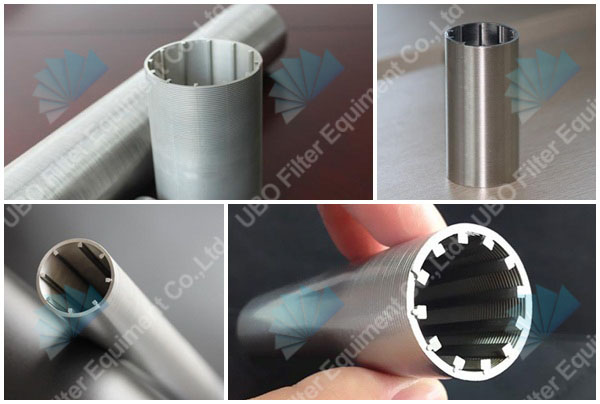

The profile wire of SS wedge v wire screen tube is created by wrapping a profile wire cylindrical around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact.
The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods (fixed or variable) allow us to design a screen according your technical or cosmetic specification.
Advantages of SS wedge v wire screen tube for filtration
1.Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2.Low cost operation.
3.Reduce the abrasion of the pump.
4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction
Characteristics of SS wedge v wire screen tube for filtration

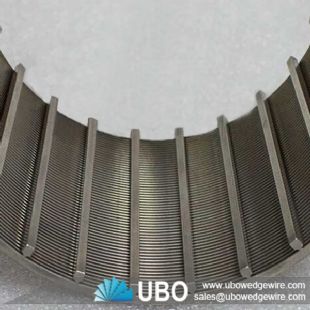

The SS wedge v wire screen tube is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Application of SS wedge v wire screen tube for filtration
SS wedge v wire screen tube is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.
Specifications of SS wedge v wire screen tube for filtration:
Material:stainless steel
Type:wedge screen pipe
SLOT
(INCH) |
LENGTH
(m) |
WIDTH
(m) |
COLLAPSE
STERENG
(PSI) |
TENSILE
WEIGHT
(TON) |
WRAP
(thick*deep)
(mm) |
RODS
(mm) |
0.04 |
1-6 |
0.5-2 |
395 |
6 |
2.2*3.0 |
3.8mm/22 |
0.04 |
1-6 |
0.5-2 |
395 |
6 |
2.3*3.0 |
3.8mm/22 |
0.04 |
1-6 |
0.5-2 |
252 |
8 |
2.3*3.5 |
3.8mm/32 |
0.01 |
1-6 |
0.5-2 |
399 |
10.5 |
3.0*5.0 |
3.8mm/48 |
0.02 |
1-6 |
0.5-2 |
370 |
10.5 |
3.0*5.0 |
3.8mm/48 |
0.04 |
1-6 |
0.5-2 |
323 |
10.5 |
3.0*5.0 |
3.8mm/48 |
0.01 |
1-6 |
0.5-2 |
206 |
11 |
3.0*5.0 |
3.8mm/50 |
0.02 |
1-6 |
0.5-2 |
191 |
11 |
3.0*5.0 |
3.8mm/50 |
0.04 |
1-6 |
0.5-2 |
167 |
11 |
3.0*5.0 |
3.8mm/50 |
