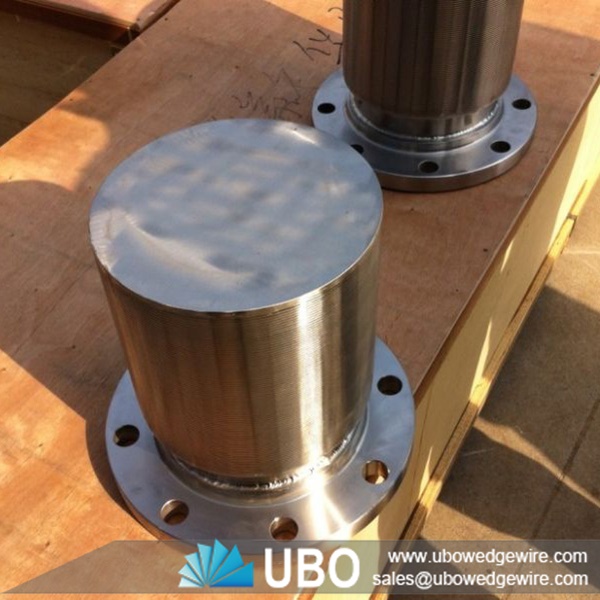

SS v wire screen trap filter for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS v wire screen trap filter for filtration

SS v wire screen trap filters are placed in a housing inline with the flow to capture expensive media. We can design the traps to capture media particles as small as 100 microns. With the continuous open slot, the traps provide sufficient open area to let process flow move effectively. Our engineering group can provide a complete system with housing design.

Advantages of SS v wire screen trap filter for filtration

Very precise slots for perfect particle retention combined with minimum obstruction of the process flow.
Flexibility in design
Strong construction (self supporting)
Large open area
Plug-resistant slot design

Application of SS v wire screen trap filter for filtration

To capture expensive resin that escapes from a treatment vessel by accident
To protect equipment further downstream
A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

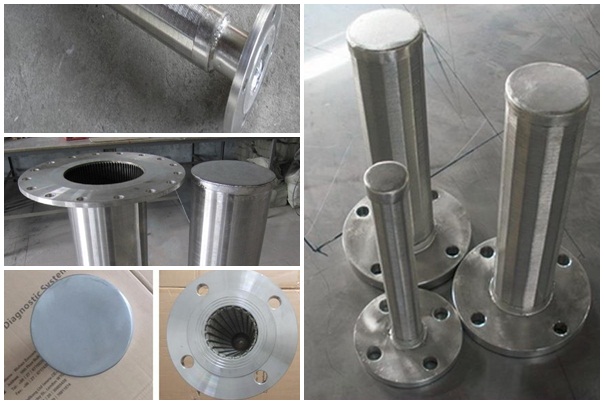

SS v wire screen trap filte

Specifications of SS v wire screen trap filter for filtration:

Material:SS321,SS304,SS316,SS316L.
Slot Size: 0.05,0.025,0.03,0.04,0.05...0.2 0.3 0.5 1.0.....60mm,
Wire diameter: 1.5x2mm, 2x3mm, 2x23.5, 3x7mm, 4x6mm.
Support rod: 2x3mm, 3x3.8mm, 3x5mm......5x6mm
Surface treatment: polishing , chroming.
Type:resin trap(with flange or thread)



Type Slots mm ΦA Flange  L1mm
AM1 0.05, 0.1, 0.2,  0.3, 0.5,  1.0 45, 57, 76, 89, 108, 133, 159, 219 40,   50,   65,   80,  100, 125,  150,  200 442,  496,  547,  600,  654,  705,  758,  812,  863,  916,  970,  1021,  1074, 1128, 1179, 1232, 1286

The special specification according to your requirement. Hope your inquiry.
