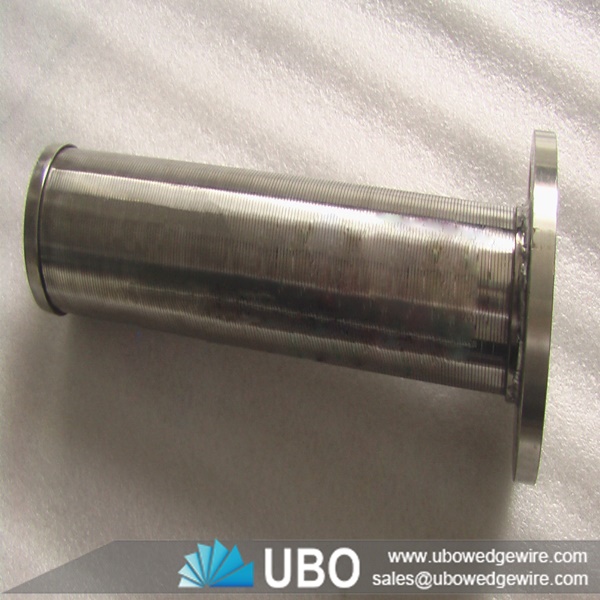

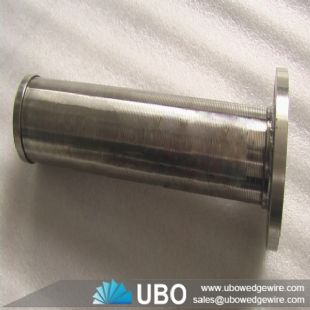

SS lateral screen for water filtration

More Views

SS lateral screen for water filtrationSS lateral screen for water filtrationSS lateral screen for water filtration

SS lateral screen for water filtration

Category:Wedge Wire Application
Material:stainless steel 304, 316, 316L
Properties:wedge wire screen
Application:water filtration, liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS lateral screen for water filtration

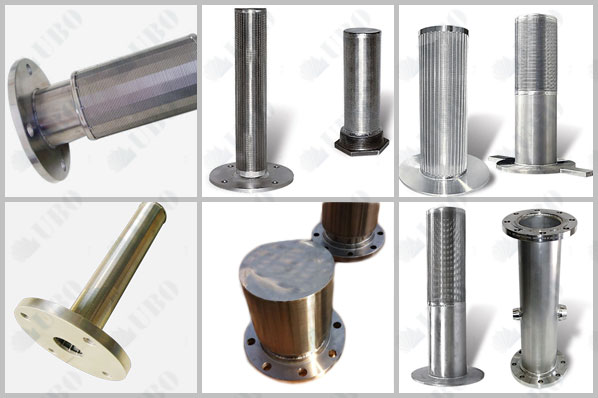

UBO Screen offers a complete range of SS lateral screen styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings.

SS lateral screens are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. UBO  offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.

Feature of SS lateral screen for water filtration

Screen resin traps provide a high percentage of open area thus minimizing pressure loss through the system. Your resin trap can be designed to suit either new or existing strainer bodies.

Application of SS lateral screen for water filtration

The SS lateral screen (resin trap) is normally used:to capture expensive resin that escapes from a treatment vessel by accident,to protect equipment further downstream.a strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. cleaning is carried out by removing the strainer from the tube.

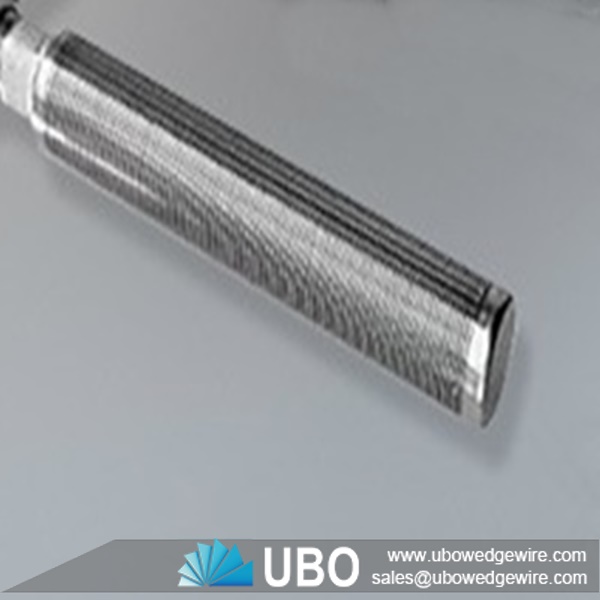

SS lateral screen for water filtration

Specifications of SS lateral screen for water filtration:

Material:stainless steel

Connector:flange or thresd

Type DiameterD L L1 Slot Thread Open area
FYN1 45 98 34 0.2-0.25 M20 380-493
FYN2 45 100 34 0.2-0.25 M24 551-690
FYN3 53 100 34 0.2-0.25 M24 453-597
FYN4 53 100 50 0.2-0.25 M27 680-710
FYN5 53 105 34 0.2-0.25 M32 800-920
FYN6 57 115 35 0.2-0.25 M30 560-670
FYN7 57 120 55 0.2-0.25 M32 780-905
FYN8 60 120 55 0.2-0.25 G1″ 905-1100
FYN9 82 130 50 0.2-0.25 M33 1170-1280
FYN10 108 200 100 0.2-0.25 G2″ 3050-4600

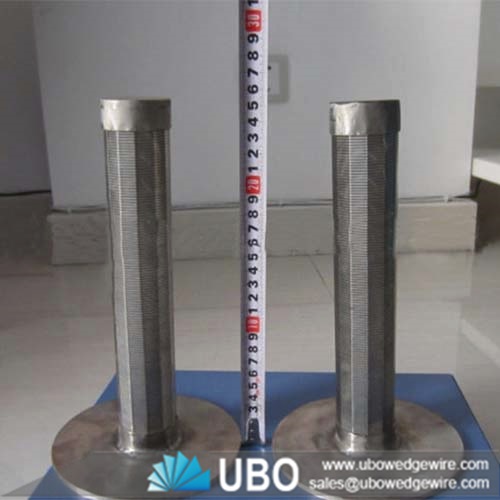

                 SS lateral screen for water filtration

Packaging and Transportation of SS lateral screen for water filtration:

transportation
