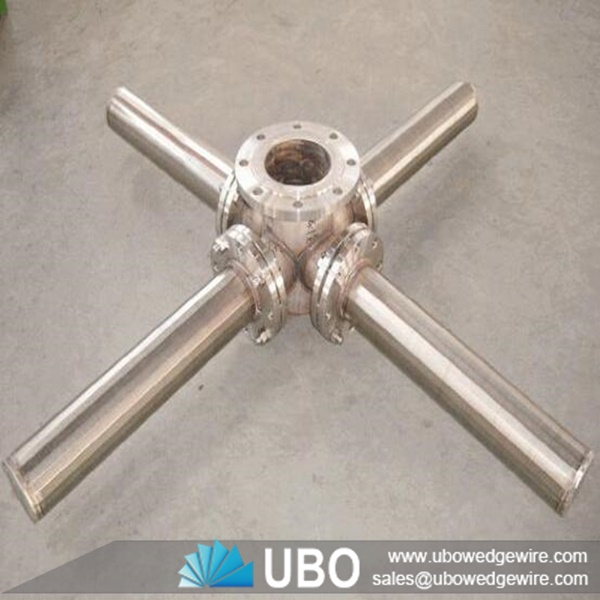

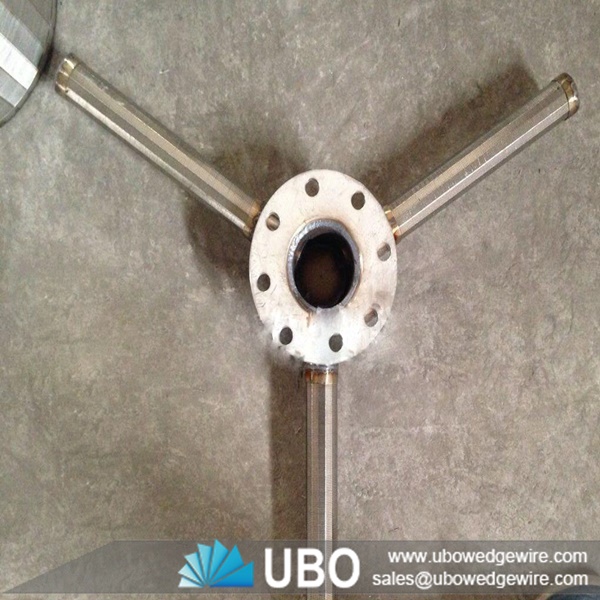

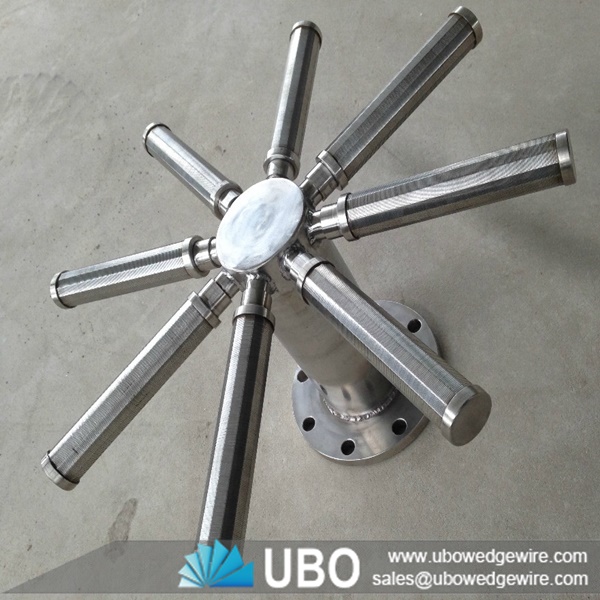

SS hub lateral screen for filteration

More Views

SS hub lateral screen for filterationSS hub lateral screen for filterationSS hub lateral screen for filteration

SS hub lateral screen for filteration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS hub lateral screen for filteration

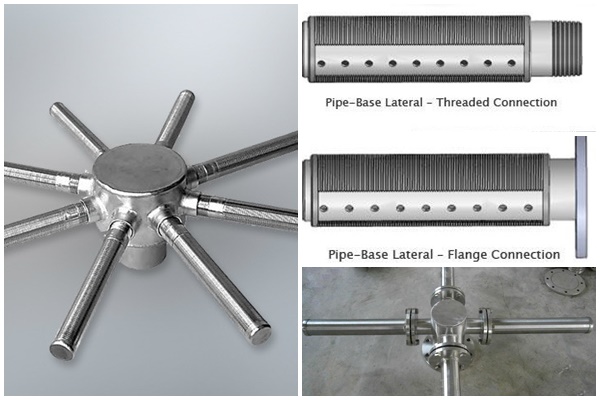

Hub lateral designs are typical for flat bottom vessel distributor or collector applications. System designs can accommodate side, center, top or bottom inlet piping. Integral backwash systems can be designed for any hub and header lateral for fast effective and efficient cleaning. Inlet/outlet piping of the laterals can be flanged or threaded. All systems are designed for effective liquid or solid retention in a wide range of applications including exchangers, clay and sand filtration applications, carbon towers and power plants with water systems. We designs each system to provide equal distribution or collection to avoid flow/pressure concentrations.

Features of SS hub lateral screen for filteration

-- Excellent roundness

-- Very good slot width precision

-- High mechanical load capacity

-- No form closure connection that would allow vibration of the profiled bars

-- Automated welding process for high-precision manufacturing

-- Perfectly adjusted screen basket profiles

-- Available for all screens

-- Surface finishing as required

Application of SS hub lateral screen for filteration

Hub lateral systems are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters, and in many water and wastewater treatment applications.

SS hub lateral screen for filteration

Specifications of SS hub lateral screen for filteration:



No.

Model

DN
(mm)

O.D. of Branch Pipe(mm)

Number of Branch Pipe

Dimension of Main Pipe

1

HR-125

1250

25-57

6-8

DN80

2

HR-160

1600

28-57

6-8

DN80

3

HR-180

1800

32-65

8-12

DN80-DN100

4

HR-200

2000

42-89

8-12

DN80-DN125

5

HR-220

2200

42-89

8-12

DN100-DN125

6

HR-250

2500

57-89

8-16

DN100-DN125

7

HR-280

2800

57-89

8-20

DN100-DN150

8

HR-300

3000

57-89

8-20

DN125-DN200

9

HR-320

3200

57-89

8-22

DN125-DN250

Packaging and Transportation of SS hub lateral screen for filteration:

packing
