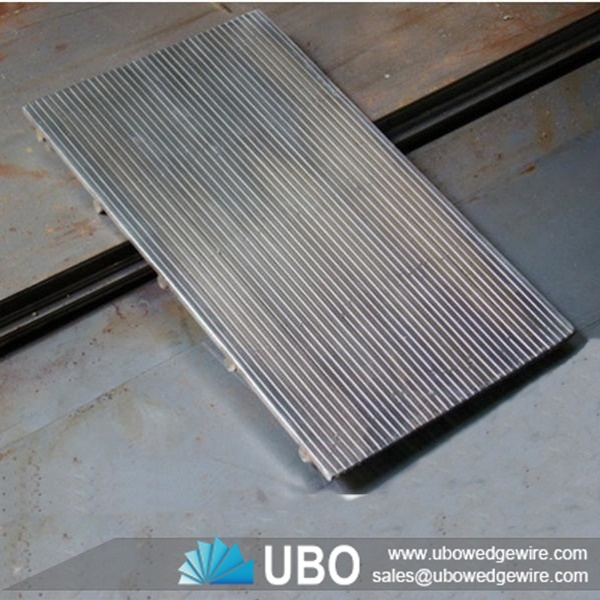

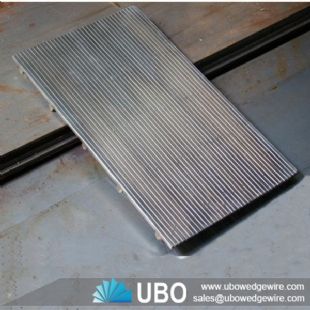

SS flat wedge wire screen panel for filtration

SS flat wedge wire screen panel is used for filtrating solid from liquid.
Size of slot hole is producred by customer's requirement.Slot hole from 0.1mm-5mm.
Material of Stainless steel wire mesh wedge wire screen contain: stainless steel 304, stainless steel 316L, and so on.

SS flat wedge wire screen panels are manufactured by helically wrapping parallel support rods with a continuous "V" shaped wire, then be made to panel screen through cutting and edge welding. The wedge screen panel size can be changeable as need.

Features of SS flat wedge wire screen panel for filtration

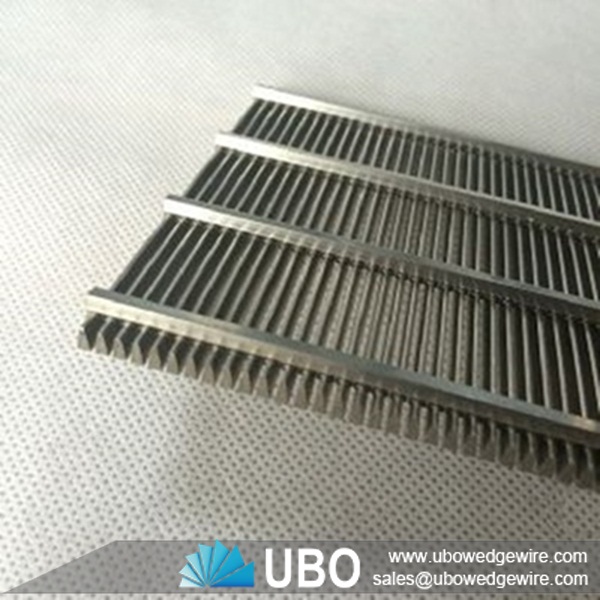

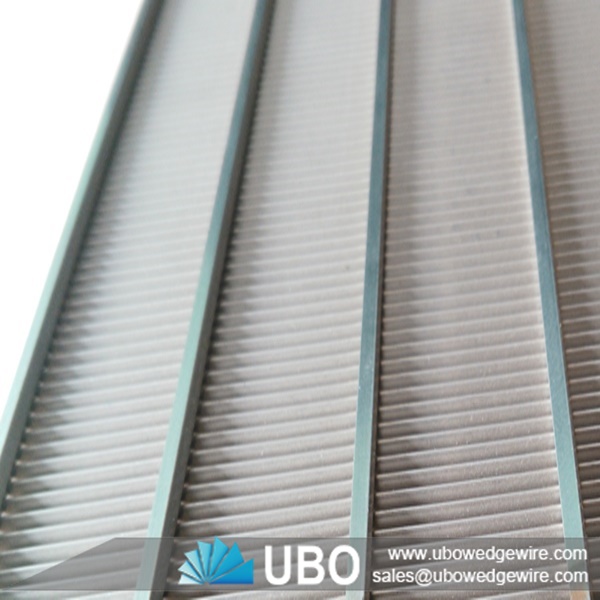

The stainless steel wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Application of SS flat wedge wire screen panel for filtration

-- Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.

-- Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.

-- Used for fiber removal in Starch industry.

Material: Carbon Steel, SS 201, 304, 304L, 316, 316L etc.

Opening /Slot: 0.02mm -- 6.0mm (Can be customized)

Pitch: 10mm -- 35mm

Max Length: 6m

wedge wire size: 1.5x2.2mm,1.5x2.5mm,2.3x3.6mm,1.8x4.3mm,3.0x4.7mm,etc

support bars size: 2.3x2.7mm,2.3x3.6mm,3.0x4.7mm,3.7x5.6mm,3.3x6.3mm,etc
