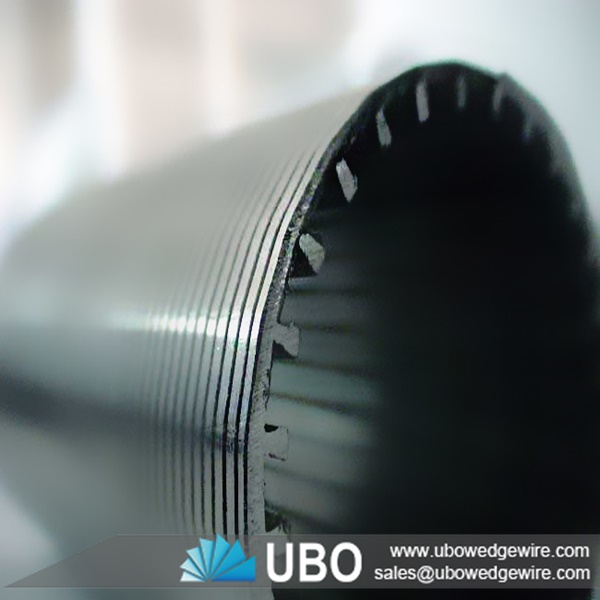

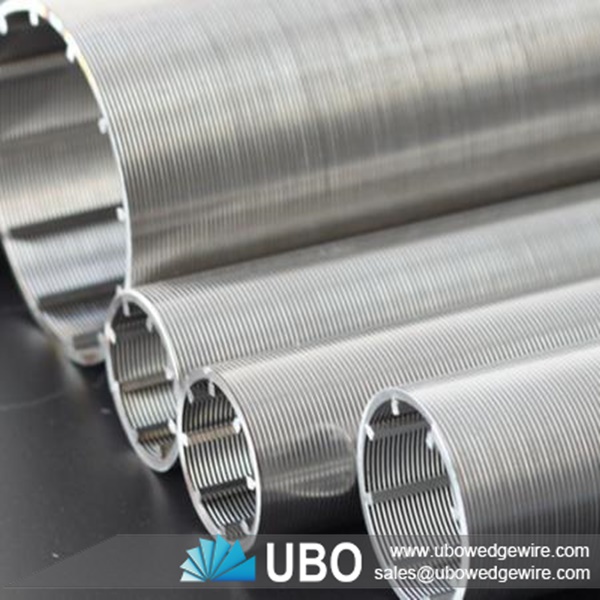

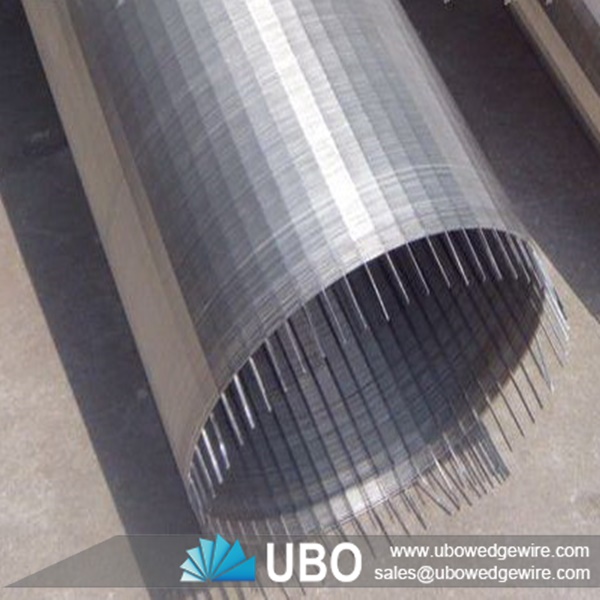

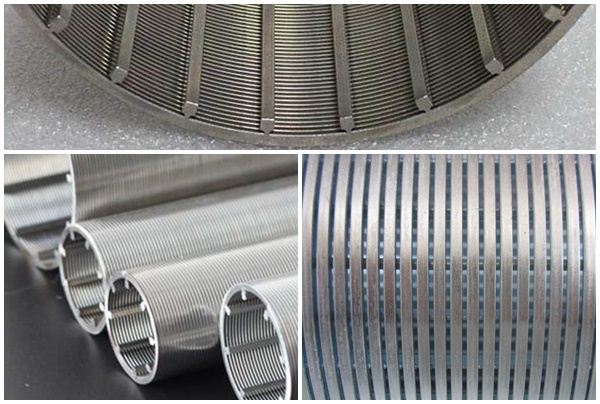

SS continuous slot screen manufacture

Continuous slot screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

At the same time, Continuous slot screen in SS316L have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering

Features of SS continuous slot screen manufacture

1).continuous gaps provide larger aperture ratio.
2).Precision gaps dimensions,long service life.
3).Easy to leakage,difficult to clog,wear-resistance.

Application of SS continuous slot screen manufacture

Continuous Slot Screen is widely used for screening,filtering,dehydration,desliming in construction, water treatment,food,petroleum,environmental protection and other industries.

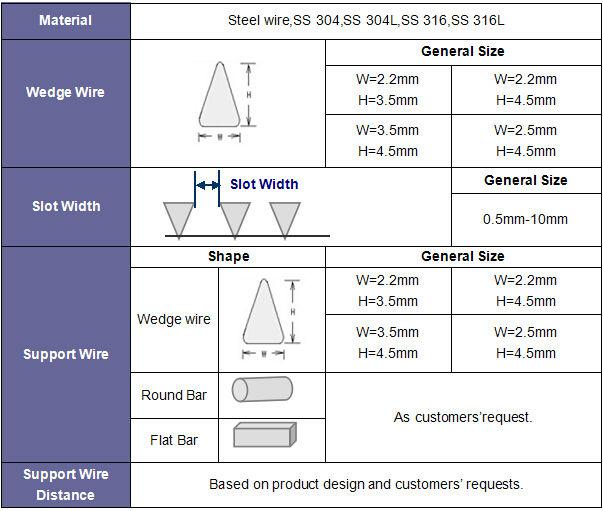

Materials: 302,304, 321, 304L, 316, 316L stainless steel wire, or galvanized steel wire .

O.D: 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch, 14inch, 16inch,18inch, 20inch

the slot:0.1mm-45mm

the wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm

the rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50

The rod can be round wire, triangular wire or trapezoid wire.

The warp is triangular wire (V-shaped wire).
